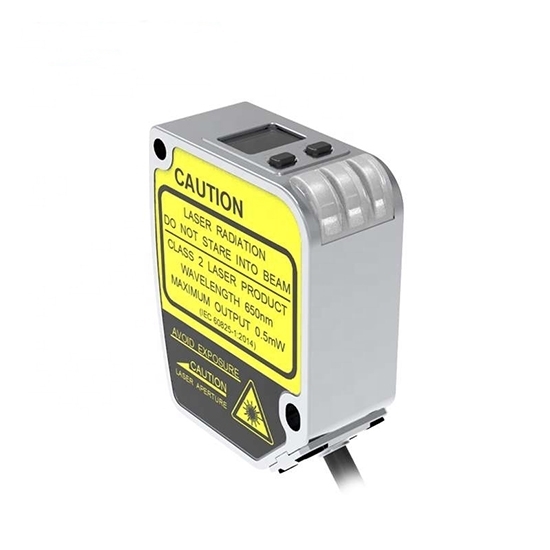

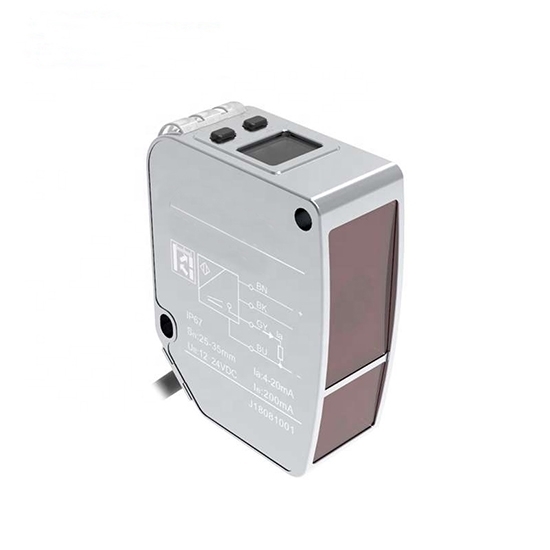

Features

• Exquisite appearance and light aluminum housing, easy to mount and dismount.
• Convenient operation panel with visualized OLED display to complete all function settings fastly.
• Small diameter light spot to accurately measure very tiny objects.
• Key or remote teach-in to easily set response time for different applications.
• Powerful function setting and flexible output way.
• Complete shielded desgin, stronger anti-interference perfomance.
• IP67 protection degree, able to work in water or dusty environment.

Specification

Remark:
①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card.
②The statistical data follows the 3σ criteria
③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
④Slave address,baud rate setting only for RS-485 series.
⑤Protecion circuit only for switch output.

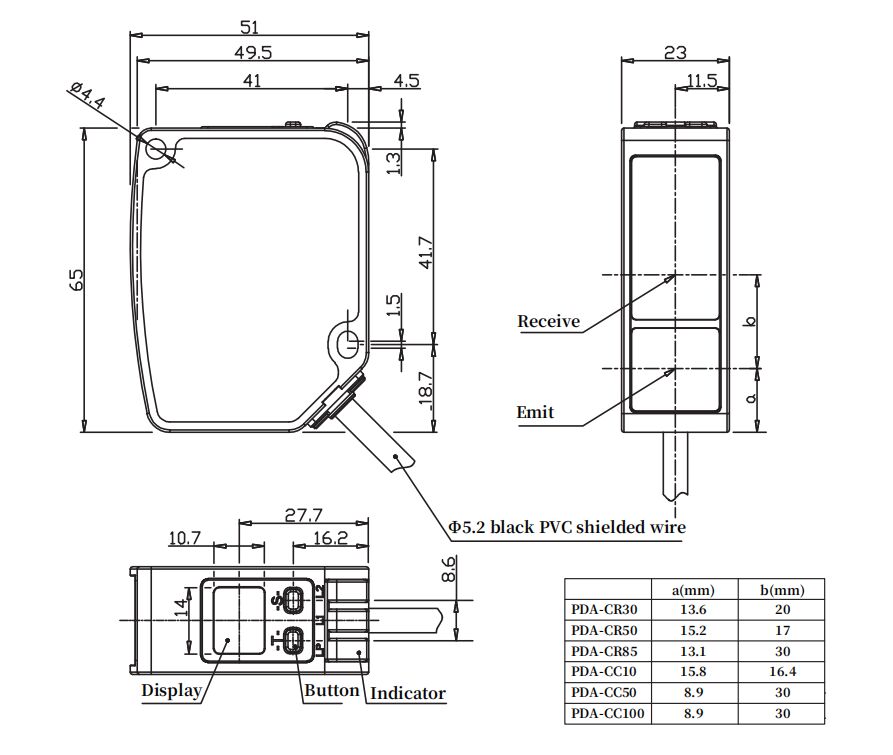

Dimension (unit=mm)

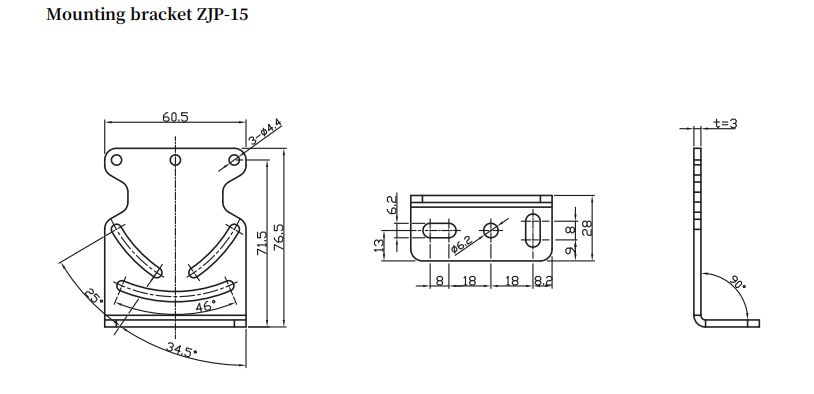

Accessory Dimension

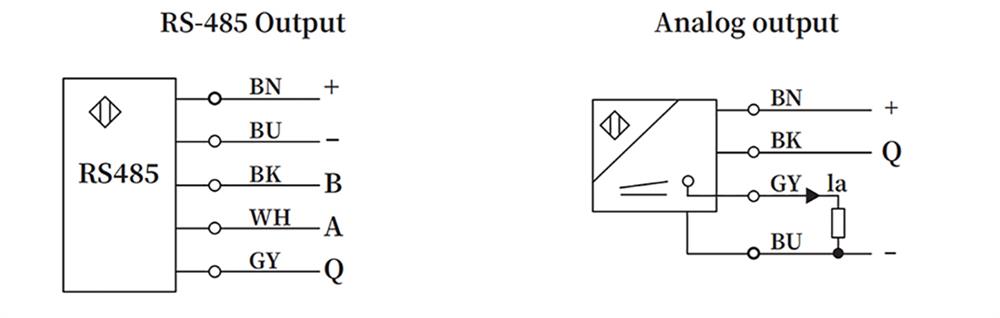

Wiring diagram

Remark:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

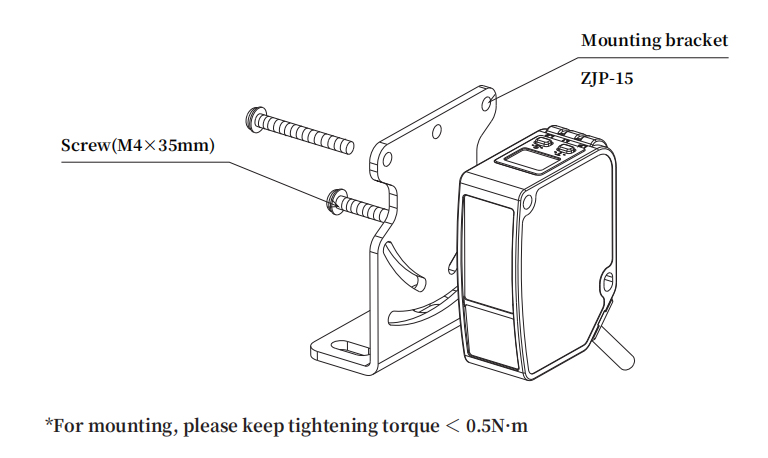

Installation of laser distance sensor

Tips: Working Principle of Laser Distance Sensor.

When the laser distance sensor is working during the transmission time, the laser diode is first aimed at the target and emits laser pulses. The laser light is scattered in all directions after being reflected by the target. Part of the scattered light returns to the sensor receiver and is imaged on the avalanche photodiode after being received by the optical system. The avalanche photodiode is an optical sensor with an internal amplification function, so it can detect extremely weak light signals. Record and process the elapsed time from when the light pulse is sent to when it is received, and then the distance to the target can be determined. Transit time Laser sensors must measure the transit time extremely accurately because the speed of light is too fast.
