Basics	Model	CHN-MSD-SA0500
	Measuring range	0~500 mm
	Shipping weight	3 kg
	Length	595mm
Technical parameters	Linearity	≤0.05%FS
	Repeatability	≤0. 002%FS
	Working Voltage	24VDC
	Working current	≤30mA
	Output method	0-5V / 0-10v / 4-20mA
	Temperature	Measuring rod: - 40℃～+110℃; Electronic bin: - 40℃～+80℃
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
	Type of lead wire	PG7 connection; Aviation plug
	Protection Class	Electronic bin: IP67; Measuring rod: IP69

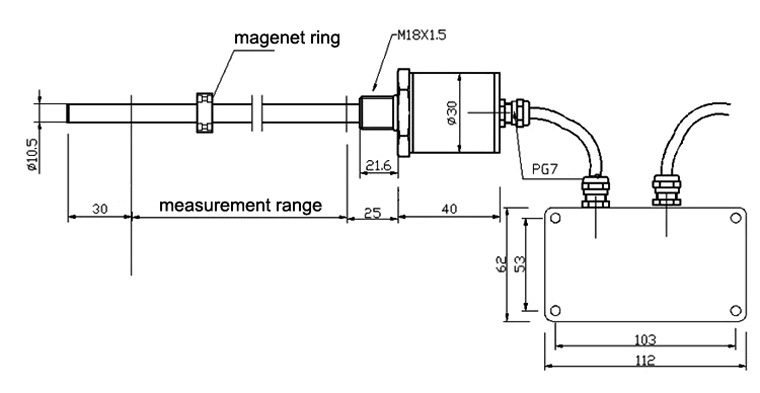

	Installation method	Electronic bin: 4*M6X45; Measuring rod: M18X1.5
	effective travel in this series (customizable)	50-5000mm
