Basics	Model	CHN-MSR-B0300
	Measuring range	0~300 mm
	Shipping weight	2 kg
	Length	473.1 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Temperature excursion	≤0.001%FS
	Operating voltage	24V DC
	Current drain	5～16mA
	Vibration coefficient	5g/10-2000Hz/IEC standards IEC standards 68-2-6
	Operating temperature	-40℃~85℃
	Load characteristic	Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
	Output	0~5V; 0~10V; 0~20mA; 4~20mA

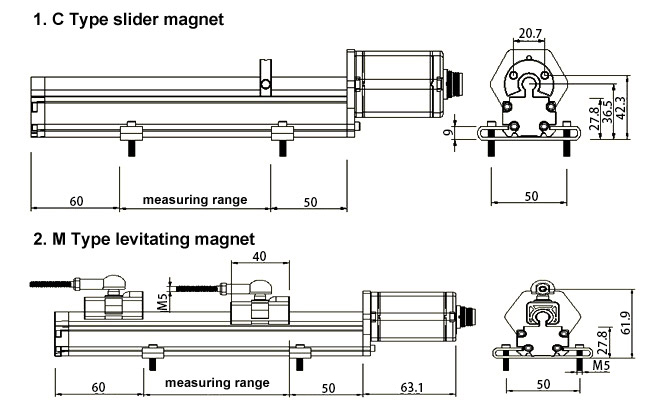

	Installation method	Fixed clip, with specific screw M5X20
	Magnet type	Slider magnet, levitating magnet
	Protection Class	IP65
