Basics	Model	CHN-MSD-0300
	Measuring range	0~300 mm
	Shipping weight	2 kg
	Length	499.3 mm
	Diameter	51 mm
Technical parameters	Linearity	≤0.05%FS
	Repeatability	≤0.005%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24VDC
	Working current	Voltage output /digital output type≤16mA; Current output type≤35mA
	Protection type *	Normal type, Explosion-proof type, Anti-corrosion type
	Output signal *	0~5V, 0~10V, 4~20mA, RS485, SSI gray code signal
	Measuring rod material	0Cr18Ni9 (304), or 316L stainless steel (customized)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, customized)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, customized)
	Connecting screw thread *	M18×1.5, M20×1.5, 3/4-16UNF
	Electrical connection *	PVC shielded cable, circular connector (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃

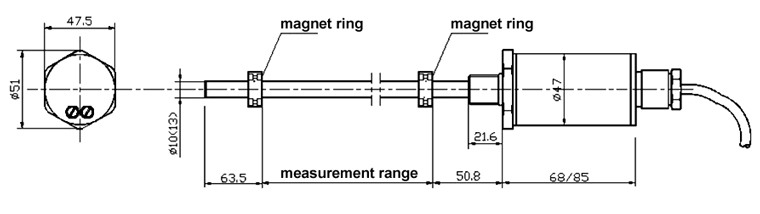

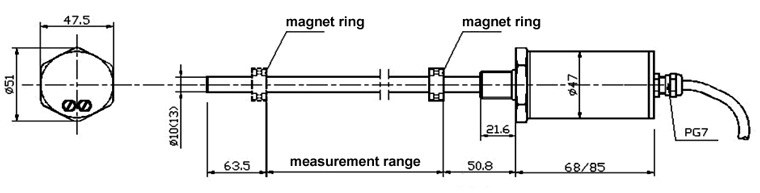

	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g/ 10-2000Hz, IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5
