120mm Magnetostrictive Linear Displacement Sensor

Magnetostrictive linear displacement sensor with measuring range 120mm is used for the machinery position preset and feedback, such as the wood machinery position. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

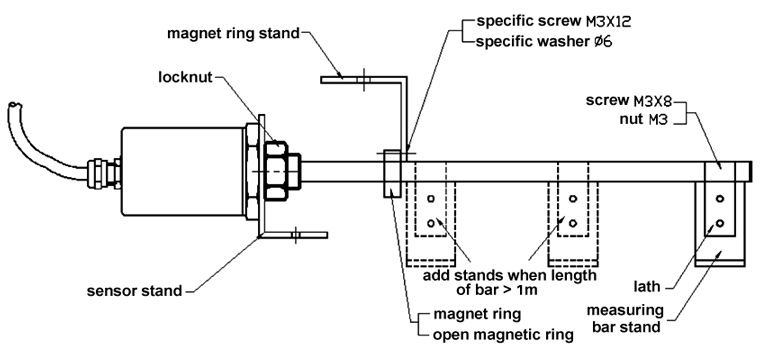

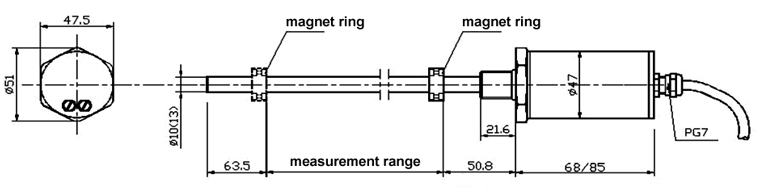

Installation diagram (unit: mm):
1. PG7 connection

2. Explosion-proof connection

3. External installation

Tips: What is the repeated accuracy, nonlinearity degree and resolution ratio of magnetostrictive sensor?
Repeated accuracy: Indicating the difference value output by the sensor if measuring along the stroke and when the magnet reaches the same location repeatedly along the same direction.
Nonlinearity degree: Along the measuring stroke of the sensor, there is difference between the positon display value and true value by the position magnet. In magnetostrictive displacement sensor, such change is caused by the nonlinearity of signal transmission of waveguide medium. Nonlinearity is usually presented by the percentage of absolute error or effective stroke.
Resolution ratio: The displacement represented by the last digit of measurement output value of magnetostrictive sensor.
