Basics	Model	CHN-MSR-A0100
	Measuring range	0~100 mm
	Shipping weight	1 kg
	Length	270.8 mm
Technical parameters	Output method	Analog output	SSI output
	Output signal	0~20mA,4~20mA; 0~10V,-10~+10V	24,25,26 bits binary digital signal / gray code signal
	Resolution ratio	16 bits A/D	2/ 5/ 10/ 20/ 50/100μm
	Linearity	＜±0.01％F.S. (minimum±50μm)	＜±0.01％F.S. (minimum±40μm)
	Repeat accuracy	＜±0.002％F.S. (minimum±2μm)	＜±0.002％F.S.( minimum±1)
	Response frequency	Relate to measuring range
	Operating voltage	24VDC（-15/+20%）
	Vibration coefficient	5g/10-2000Hz/IEC standards IEC standards 68-2-6
	Current drain	5～16mA
	Operating temperature	-40℃～+85℃
	Protection Class	IP65

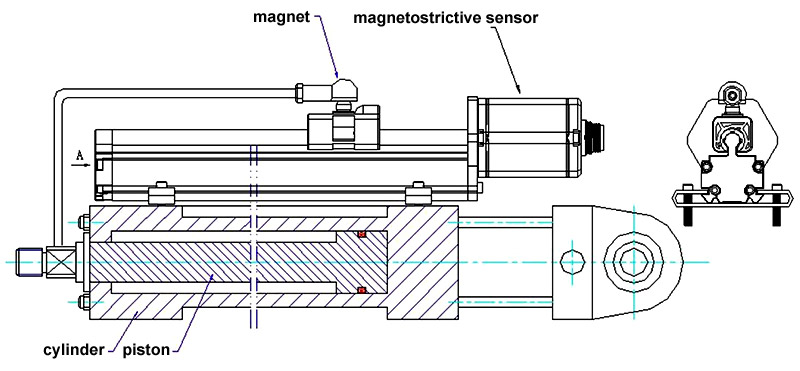

	Installation method	Fixed clip, with specific screw M5X20

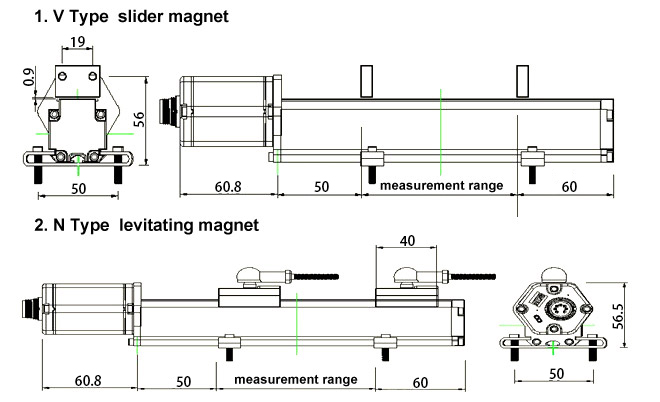

	Magnet type	Slider magnet, levitating magnet
