Home > Sensors > Limit Switch

Send Inquiry

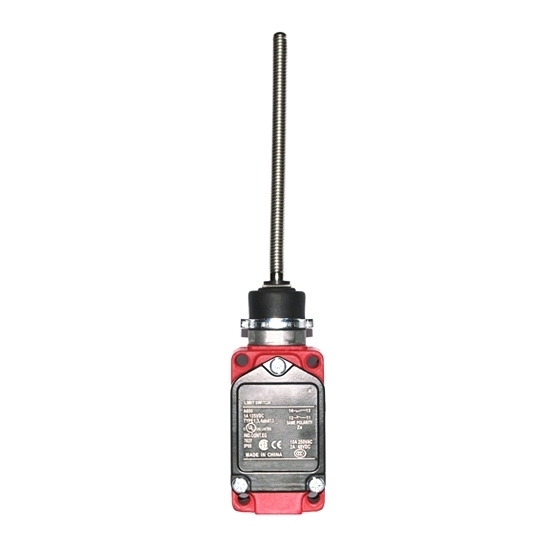

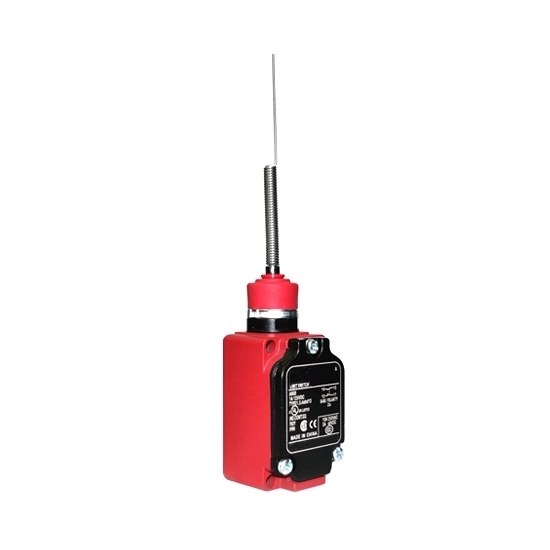

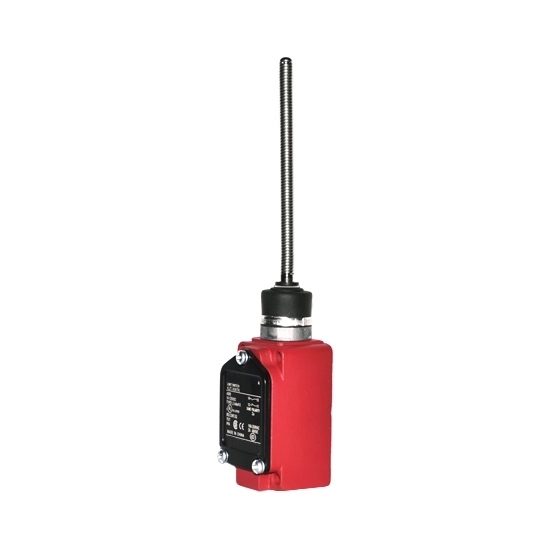

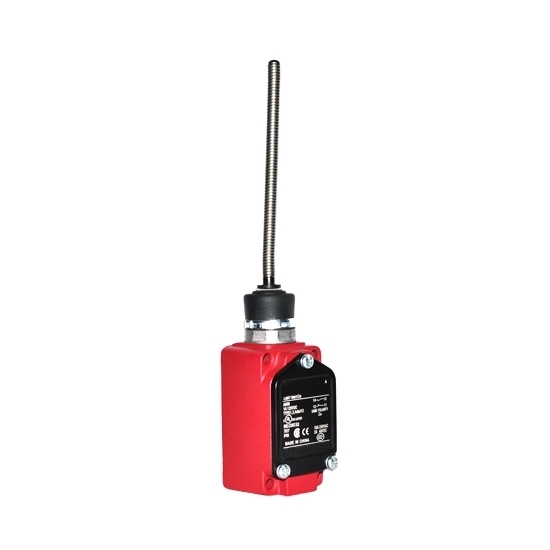

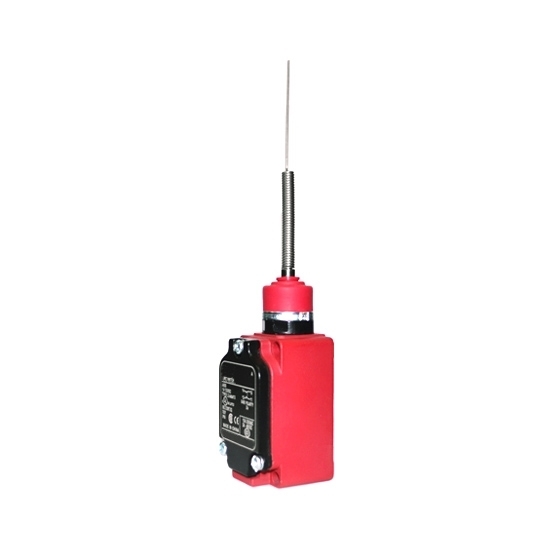

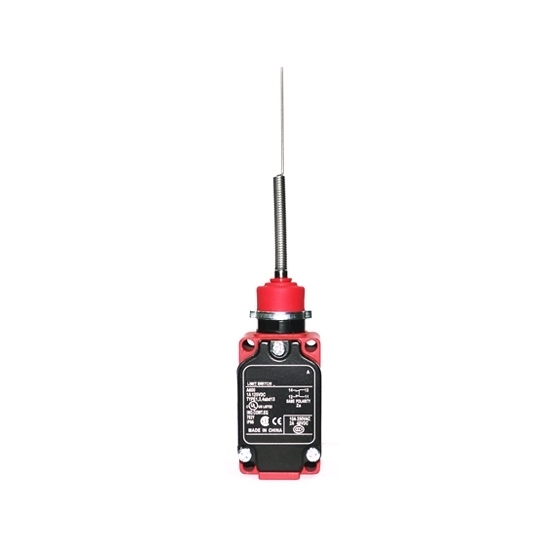

High Temperature Limit Switch with Coil Spring

$148.15

High temperature coil spring limit switch has spring top diameter 6.5mm or 1.2mm, can be used for micromotion detecting. The

SKU: CHN-HTLS-CS

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

High temperature limit switch has coil spring with top diameter 6.5mm or 1.2mm, contact type 1NO + 1NC and rated current/voltage 5A/220VAC.

Specification:

Model	CHN-HTLS-XWKG	CHN-HTLS-XWKH
Weight	258g
Top diameter of coil spring *	Φ6.5mm		Φ1.2mm
Rated voltage	220VAC (Customizable rated voltage is shown in the reference table below.)
Rated current	5A (Customizable rated current is shown in the reference table below.)
Contact type	1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4)
Operating speed	1mm/s~2m/s
Operating frequency	Machinery: 120 times/minute Electric: 30 times/minute
Contact resistance	＜15MΩ, initial stage
Insulation resistance	＞100MΩ (＜500VDC)
Withstand voltage	Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute Between the terminal and the contact: 2000VAC, 50/60Hz lasts 1 minute Between terminal and no-load current metal: 2200VAC, 50/60Hz lasts 1 minute
Vibration	Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude
Impact	Mechanical endurance: ＞1000m/s² (＞100G) Misoperation endurance: ＞300m/s² (＞30G)
Shell material	Cast aluminum alloy
Temperature	-10~+350℃ (14~622℉)
Humidity	＜95%RH
Working life	Machinery: ＞15million times Electric: ＞0.5million times
Protection class	IP66

Reference table for customizable rated voltage and rated current:

Rated voltage	Rated current (A)
	Non-inductive load				Inductive load
	Resistive load		Lamp load		Inductive load		Motor load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	10		3	1.5	10		5	2
250VAC	5		2	1	5		3	1.0
480VAC	3		1.5	0.8	3		1.5	0.8
600VAC	1		1	0.5	1.5		1	0.5
8VDC	10		6	3	10		6
14VDC	10		6	3	10		6
30VDC	6		4	3	6		4
125VDC	0.8		0.2	0.2	0.8		0.2
250VDC	0.4		0.1	0.1	0.4		0.1

Note:

Power factor of inductive load is above 0.4 (AC). The time constant is below 7ms (DC).
The inrush current of lamp load is 10 times that of steady state current, and the inrush current of motor load is 6 times that of steady state current.

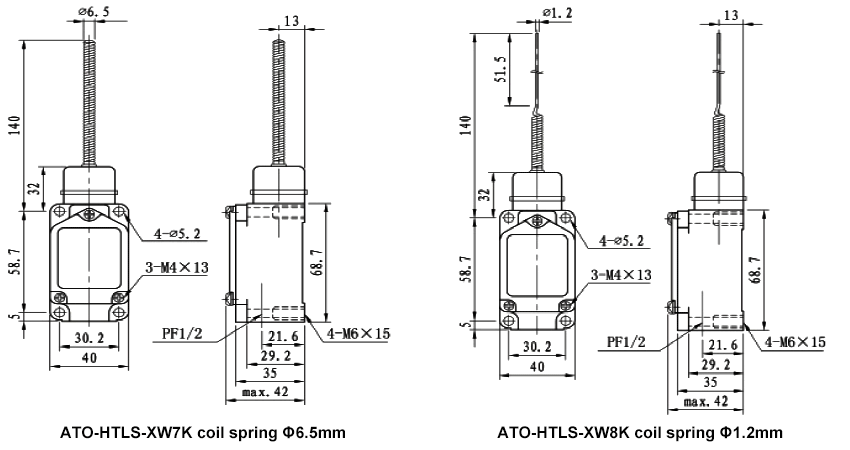

Dimension (unit: mm):

Tips: Electrical considerations for limit switches
In the case of AC and DC, the capacity of limit switch is very different, so please use the limit switch within the rated range.
In the case of DC, the control capacity of the limit switch is extremely low. This is mainly due to the fact that direct current does not have a zero point (current zero intersection) like alternating current, and once an arc is generated, it is difficult to disappear. The arc time is long and the current direction is fixed, so there will be a migration of the contacts. Contacts cannot be disconnected due to unevenness.
In the case of including induction, a reverse induced voltage is generated. The higher the voltage, the greater the energy, and the greater the loss and migration of the contact. Therefore, use the limit switch within the rated conditions. Use a limit switch for micro-loads in the case of small voltages and currents. Using general silver contacts may reduce contact reliability.
