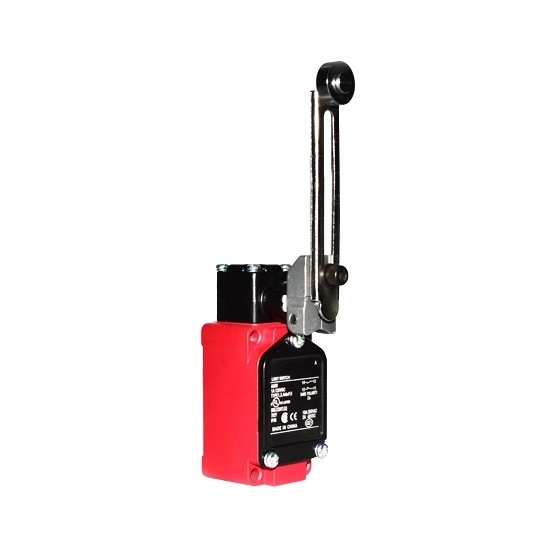

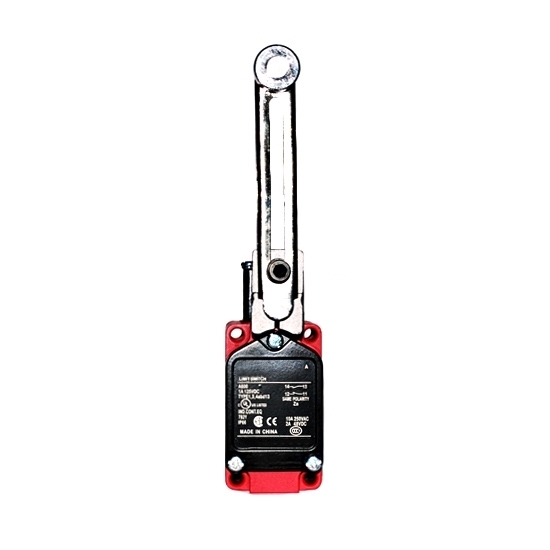

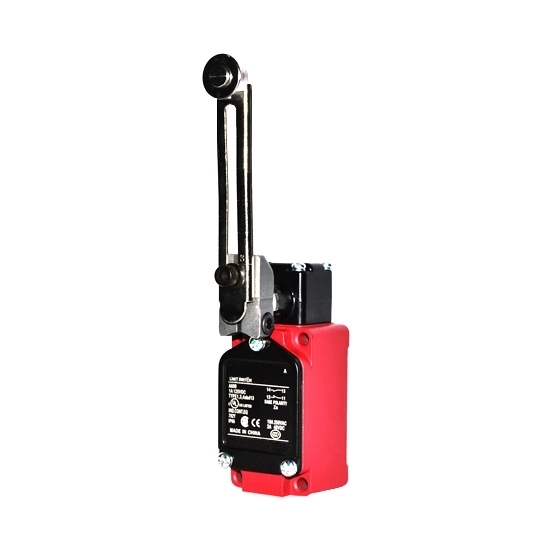

High Temperature Limit Switch with Adjustable Roller Lever

$148.15

High temperature limit switch adopts fully enclosed 1NO + 1NC contact switches, can be used in the environment temperature 35

SKU: CHN-HTLS-ARL

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

High temperature limit switch has adjustable roller lever with radius of 25-89mm, contact type 1NO + 1NC and rated current/voltage 5A/220VAC.

Specification:

Model	CHN-HTLS-XWKB
Weight	258g
Adjustable radius of roller lever	25-89mm
Rated voltage	220VAC (Customizable rated voltage is shown in the reference table below.)
Rated current	5A (Customizable rated current is shown in the reference table below.)
Contact type	1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4)
Operating speed	1mm/s~2m/s
Operating frequency	Machinery: 120 times/minute Electric: 30 times/minute
Contact resistance	＜15MΩ, initial stage
Insulation resistance	＞100MΩ (＜500VDC)
Withstand voltage	Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute Between the terminal and the contact: 2000VAC, 50/60Hz lasts 1 minute Between terminal and no-load current metal: 2200VAC, 50/60Hz lasts 1 minute
Vibration	Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude
Impact	Mechanical endurance: ＞1000m/s² (＞100G) Misoperation endurance: ＞300m/s² (＞30G)
Shell material	Cast aluminum alloy
Temperature	-10~+350℃ (14~622℉)
Humidity	＜95%RH
Working life	Machinery: ＞15million times Electric: ＞0.5million times
Protection class	IP66

Reference table for customizable rated voltage and rated current:

Rated voltage	Rated current (A)
	Non-inductive load				Inductive load
	Resistive load		Lamp load		Inductive load		Motor load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	10		3	1.5	10		5	2
250VAC	5		2	1	5		3	1.0
480VAC	3		1.5	0.8	3		1.5	0.8
600VAC	1		1	0.5	1.5		1	0.5
8VDC	10		6	3	10		6
14VDC	10		6	3	10		6
30VDC	6		4	3	6		4
125VDC	0.8		0.2	0.2	0.8		0.2
250VDC	0.4		0.1	0.1	0.4		0.1

Note:

Power factor of inductive load is above 0.4 (AC). The time constant is below 7ms (DC).
The inrush current of lamp load is 10 times that of steady state current, and the inrush current of motor load is 6 times that of steady state current.

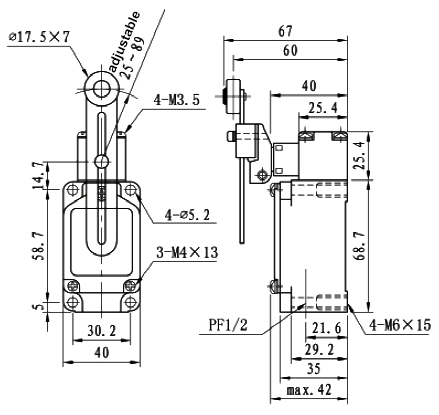

Dimension (unit: mm):

Tips: Regular inspection and regular replacement of limit switches

If the switching frequency is low (less than 1 time/day) in the state of being pressed all the time, there is a possibility that the reset may fail due to the deterioration of the parts. Please confirm in advance and check regularly.
In addition to the mechanical life and electrical life described in the performance column, the high temperature limit switch life is also related to the deterioration of each part due to the usage environment (especially the deterioration of rubbers & resins, the corrosion of metal parts, etc). Therefore, please check and replace regularly to prevent accidents.
When ON/OFF is not set for a long time, the contact reliability may be reduced due to oxidation or other reasons. Poor connection will cause accident hazard.
Install the limit switch securely and in a clean place that is easy to inspect and can be replaced.
Install an action indicator light in the places where inspection and maintenance are difficult and in dark places.
