1500mm Magnetostrictive Linear Displacement Sensor

Magnetostrictive sensors have effective travel 50mm-5000mm. The length of electronic bin is 34mm, the length of the buffer area both ends can be defined by the customer. Magnetostrictive displacement sensors can be widely used in mobile machinery, power machinery, construction machinery, etc.

Specification:

Installation diagram (unit: mm):

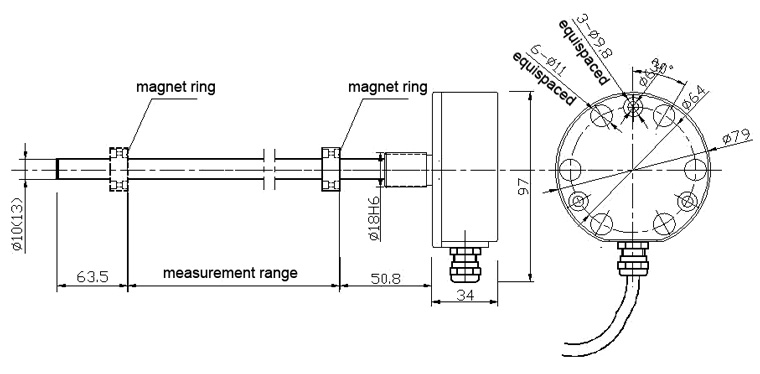

1. PG7 connection

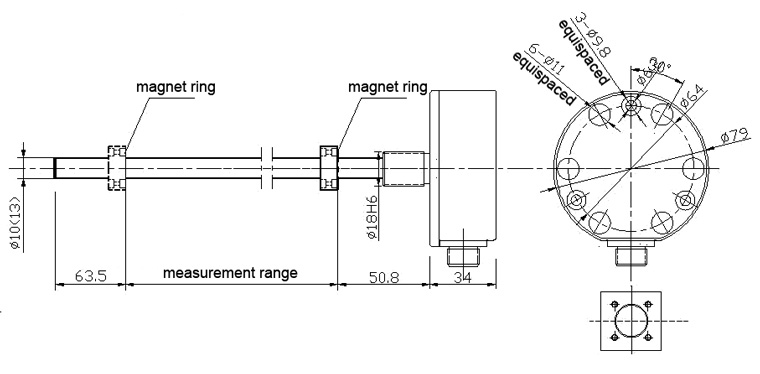

2. Aviation plug connection

Tips: Magnetostrictive sensor for overall dam displacement detection
Magnetostrictive displacement sensor is fixed on the instrument inside the case, protect the reference line (connecting both ends of dam) by tube, make sure reference line not easily been interfered. Reference line is mounted with special made magnet ring, and the bushing of magnet ring is on test pole of sensor, but no touching with each other. Reference line keeps in stable condition through inert water or other methods. When dam has displacement, magnet ring will have a movement relative to test pole. Magnetostrictive sensor could transmit the testing signal to control room immediately, and test personnel could know the displacement status of dam immediately.
