1500mm Magnetostrictive Fuel Level Sensor for lapping machine

Magnetostrictive fuel level sensor with measuring range 1500mm is used for the fuel level preset and feedback, such as the fuel level of lapping machine hydro-cylinder. Magnetostrictive level sensors have effective travel 50mm~15000mm, can be used in most industrial automation systems.

Specification:

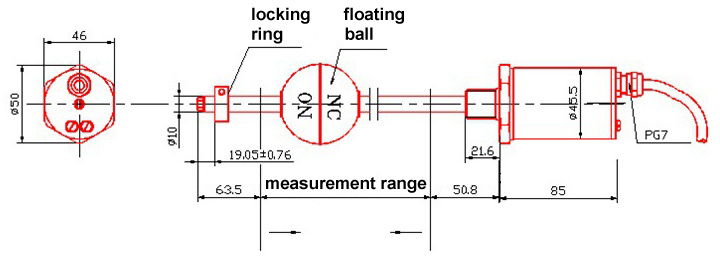

Installation diagram (unit: mm):


Tips: Application fields of magnetostrictive liquid level sensor

1. Detect the position of servo hydraulic piston (in special multi-cylinder system)
2. Measure the fuel level of heading machine, shield tunneling machine and coal mine machine cylinder
3. Measure the fuel level of engineering hoisting machine cylinder (multi-cylinder equilibrium)
4. Detect the fuel level of machine cylinder of steel mills such as rolling mill (dynamic adjustment of multi-group pitch)
5. Detect the displacement of cylinder of bottle blowing machine
6. Detect reservoir level and the opening position of water gate
7. Detect the fuel level of oil tank (measuring of volume or weight, petroleum and chemical plant, transshipment oil depot, war preparedness oil depot and gas stations, etc.)
8. Detect the liquid level of operation field
9. Detect the liquid level of chemical container
10. Detect the level of drinking water and sewage treatment system
11. Detect the position of valve opening (in proportion control system)
