High pressure electric hydraulic pump with power 1500 watt, single acting, power supply single phase 110V or 3 phase 380V, fuel tank capacity 10 L. The hydraulic pump is made of durable materials with high strength and hardness to ensure its longer service life.

Specification

Model: CHN-DB150-D1 / CHN-HHB-700A

High Pressure: 10,000 psi (70 Mpa)

Low Pressure: 1450 psi (10 Mpa)

High Pressure Flow Rate: 1.7 L/min

Low Pressure Flow Rate: 7.9 L/min

Motor Power: 1.5 kW

Voltage: 110V / 380V

Frequency: 50Hz / 60Hz

Speed: 1400 rpm

Oil Storage Capacity: 10 L

Oil Type: ≤15# hydraulic oil

Weight: 42 kg

Features

• The electric over hydraulic pump can be used with punch machine, cutting machine, bending machine, cylinder, pipe benders, hole digger, cable cutter, crimping tool, etc.
• High & low pressure 2 sections for fast oil output, turbine bland oil absorption can reach the highest effective oil.

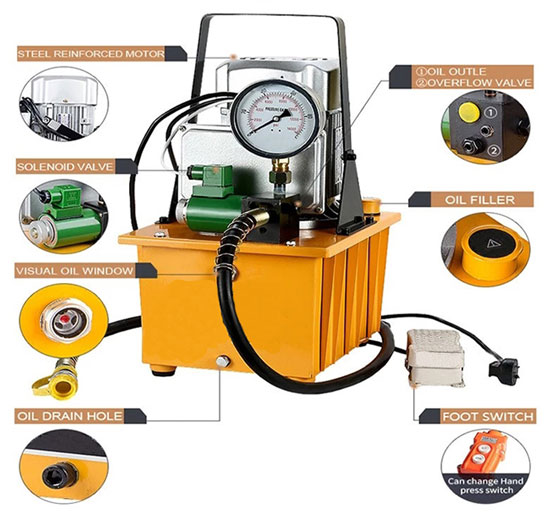

Single Acting Hydraulic Electric Pump Structure Diagram

Tips: How to deal with insufficient output flow of hydraulic pump or no oil output?

Insufficient suction, excessive resistance on the suction line or insufficient oil replenishment. Such as the pump speed is too large, the liquid level in the fuel tank is too low, the oil inlet pipe leaks, the oil filter is blocked, etc. ​​

The leakage is too large, the gap of the pump is too large, and the sealing is poor. For example, the oil distribution plate is scratched by metal fragments, iron filings, etc., and the end face leaks oil, the sealing surface of the one-way valve in the variable mechanism is not well matched, and the bearing surface of the pump body and the oil distribution plate has blisters or grinding marks. Solution: Identify the damaged part of the pump by checking the foreign matter mixed in the hydraulic oil in the pump body. ​​

The inclination angle of the swash plate is too small, and the displacement of the pump is small. The solution: adjust the variable piston and increase the inclination angle of the swash plate.
