10000 psi hydraulic electric pump is driven by 1.2 kW electric motor, widely used with punch machine, cutting machine, bending machine, cylinder, pipe benders, hole digger, cable cutter, crimping tool, etc.

Specification

Model: CHN-HEP-QQ700

High Pressure: 10,000 psi (70 Mpa)

High Pressure Flow Rate: 1.7 L/min

Motor Power: 1.2 kW

Voltage: 220V

Frequency: 50Hz / 60Hz

Speed: 3700 rpm

Oil Storage Capacity: 2 L

Weight: 11 kg

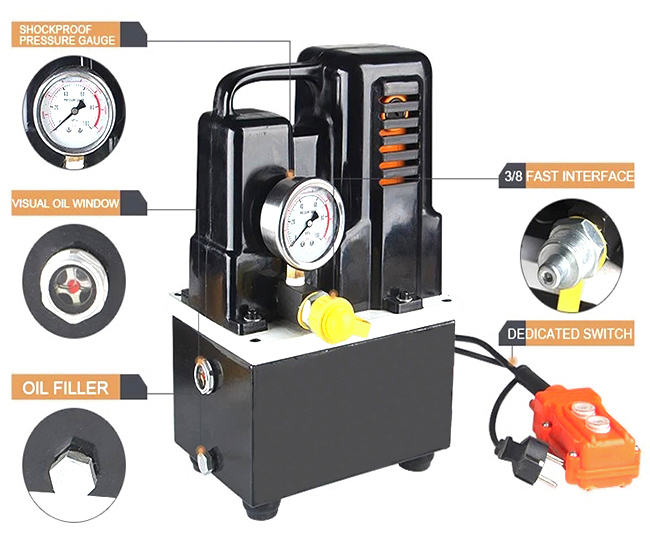

1200W Hydraulic Electric Pump Structure Diagram

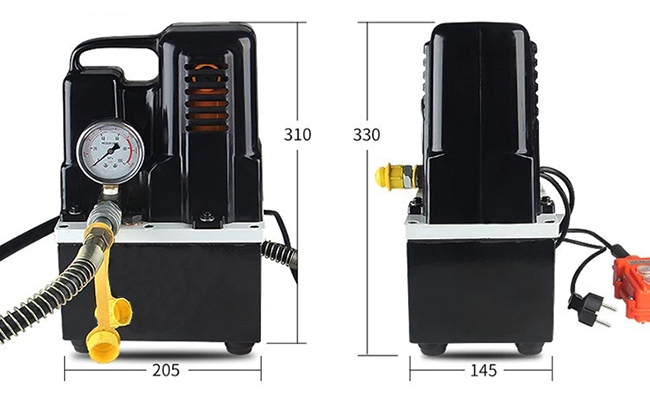

1200W Hydraulic Electric Pump Dimension Drawing (Unit: mm)

Tips: Hydraulic electric pump for disassembly and assembly precautions

1. When disassembling the hydraulic electric pump, it is necessary to release the pressure in the circuit, otherwise the oil will be ejected rapidly.
2. When disassembling, prevent damage to the piston rod top wire, oil hole threads, piston rod surface and cylinder sleeve inner wall.
3. After disassembly, all parts should be covered with plastic sheeting for safekeeping and stored in a dry environment.
4. Due to the composition of each hydraulic pressure ring and pressure ring, when the pressure cylinder structure and pressure ring size are not the same, the disassembly order is slightly different, generally speaking, the cylinder head and piston rod should be disassembled.
5. Before and after unloading, prevent the components of the hydraulic electric pump from being contaminated by surrounding dust and impurities.
6. Before carrying out assembly, clean each part carefully before assembling.
