Home > Pumps > Diaphragm Pump > Air Diaphragm Pump

Send Inquiry

5" Air Operated Double Diaphragm Pump, 275 GPM

$4499.99

Industrial air operated double diaphragm pump for pumping various corrosive liquids and high viscosity fluids, stainless stee

SKU: CHN-AODD-125

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Air powered diaphragm pump driven by compressed air, can suck a variety of toxic, flammable, volatile liquid, acids, alkalis, corrosive liquids, high viscosity fluids and paint binders. It is no need for irrigation and suction lift is up to 7m, which is perfect pneumatic device for pumping the medium containing impurities.

Features

Pneumatic dual diaphragm pump can transport high temperature media up to 150 ℃.
Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
It is designed with multiport to help you install it easily.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	T-QYB3-125
Max. Flow	275 GPM (568 LPM)
Max. Working Pressure	120 PSI (0.84 Mpa)
Fluid Inlet Size	5 inch (DN125-10kg) Flange
Fluid Outlet Size	5 inch (DN125-10kg) Flange
Air Inlet Size	3/4 inch NPT
Max. Suction Lift	Dry Suction 8 ft. (2.4m)
Max. Suction Lift	Wet Suction 25 ft. (7.6m)
Max. Permitted Grain	3/8 in. (6.4mm)
Max. Air Consumption	82.6 SCFM
Every Stroke Flow	2.0 gal. (7.6L)
Max. Reciprocating Speed	135 cpm
Body Structure Material	Aluminum Alloy/ Cast Steel/ Non-Metallic (Plastic)/ Stainless Steel
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	150kg/ 120kg/ 150kg/ 100kg

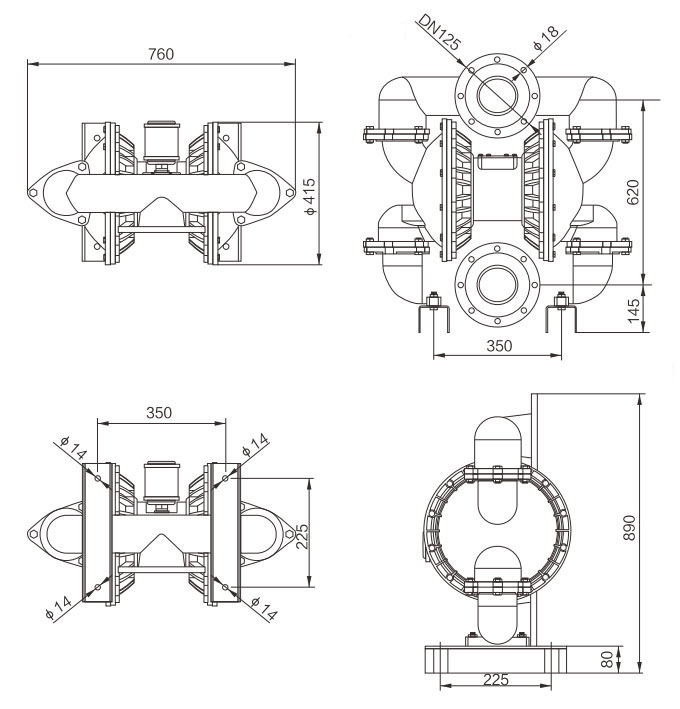

Dimensions (Unit: mm)

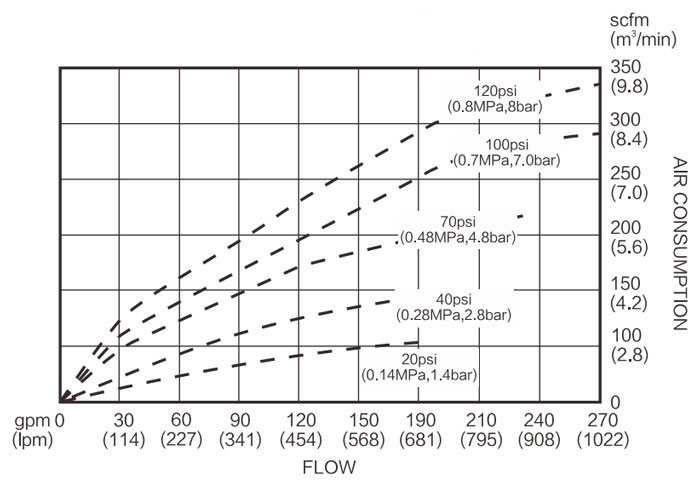

Air Consumption Diagram

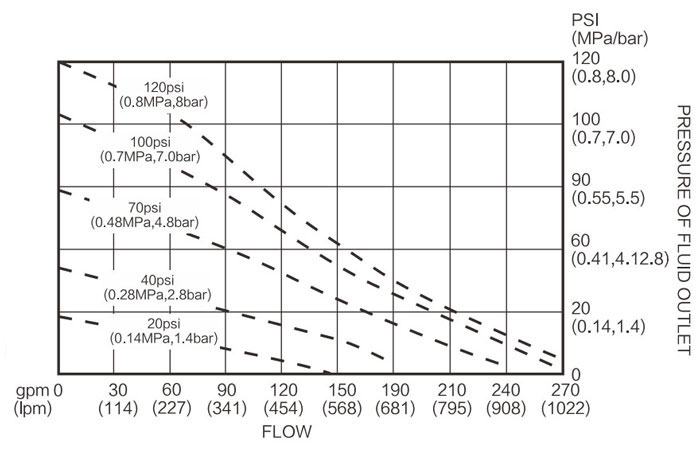

Fluid Flow Diagram

Details

1	Discharge outlet (top cover)	11	Pitman shaft	22	PTFE diaphragm
2	Sealing ball	12	Large slider aluminum piece	23	Poly rubber diaphragm
3	Sealing seat O-ring	13	Piston	24	Inner clamp
4	Sealing seat	14	Air valve chamber cover	25	Baffle
5	Sliding plate gasket	15	Air valve chamber cover gasket	26	Air valve chamber gasket
6	Small slider	16	Sliding plate	27	V-Ring
7	Auxiliary shaft	17	Piston sleeve	28	Pitman shaft sleeve
8	Air valve chamber	18	Column	29	V-Ring
9	Auxiliary shaft O-ring	19	Clamp screw	30	Muffler
10	Auxiliary shaft cover	20	Clamp O-ring	31	Feed inlet (bottom cover)
10	Auxiliary shaft cover	21	Outer clamp	32	Bracket (base)

Applications

Tips: Difference between air operated diaphragm pump and self-priming pump

Air operated diaphragm pump is a kind of pneumatic pump that uses diaphragm as the raw material medium. According to the motive force as the basis for classification, diaphragm pumps are divided into electric diaphragm pumps and pneumatic diaphragm pumps. Compared with ordinary water pumps, it has more advantages and simpler usage.

The self-priming pump adopts an axial liquid return pump body structure. The pump body is composed of a suction chamber, a liquid storage chamber, a scroll chamber, a liquid return hole, a gas-liquid separation chamber, etc. After the pump is started normally, the impeller will suck the liquid in the chamber. It is sucked together with the air in the suction pipe and is completely mixed in the impeller. Under the action of centrifugal force, the liquid enters the gas and flows to the outer edge of the scroll. A white foam belt with a certain thickness and high speed is formed on the outer edge of the impeller. Rotating the liquid ring, the gas-liquid mixture enters the gas-liquid separation chamber through the diffuser.
