Home > Pumps > Diaphragm Pump > Air Diaphragm Pump

Send Inquiry

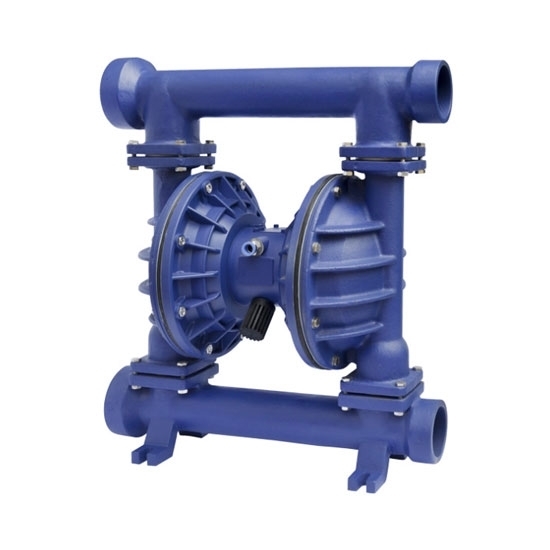

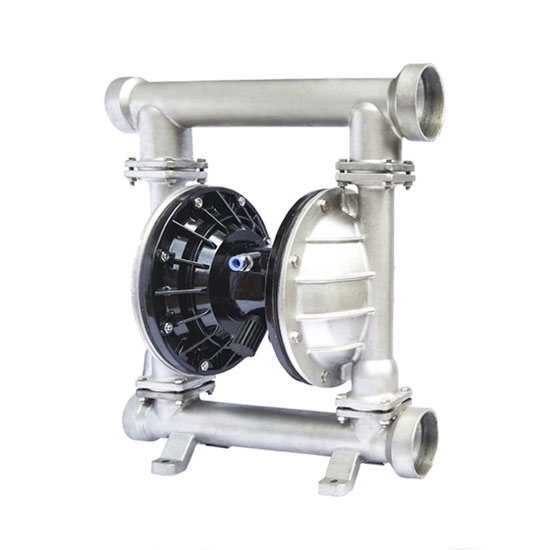

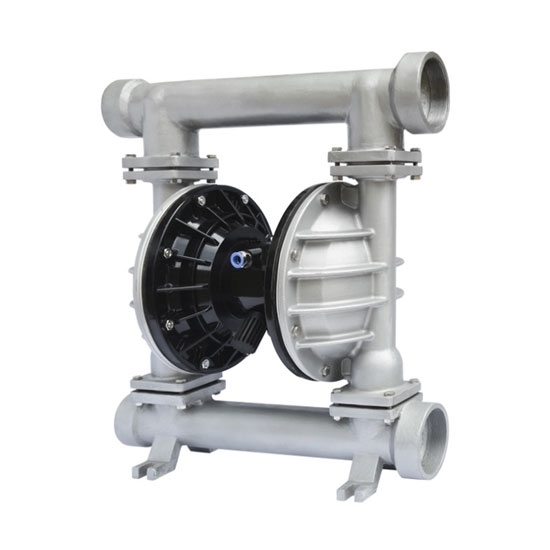

4" Air Operated Double Diaphragm Pump, 150 GPM

$1744.99

Heavy duty industrial air operated double diaphragm pump for sale, driven by compressed air, body material of cast steel, non

SKU: CHN-AODD-100

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Heavy duty AODD pump is easy to install and operate, which can be used for pumping toxic, flammable, high viscosity fluids, volatile liquid, acids, alkalis, corrosive liquids and paint binders.

Features

Pneumatic dual diaphragm pump can transport high temperature media up to 150 ℃.
Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
It is designed with multiport to help you install it easily.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	T-QBYK3-100
Max. Flow	150 GPM (568 LPM)
Max. Working Pressure	120 PSI (0.84 Mpa)
Fluid Inlet Size	4 inch (DN100) NPT
Fluid Outlet Size	4 inch (DN100) NPT
Air Inlet Size	1/2 inch NPT
Max. Suction Lift（Dry Suction/Wet Suction）	18 ft. (5.48m)
Max. Permitted Grain	1/4 in. (6.4mm)
Max. Air Consumption	45 SCFM
Every Stroke Flow	1.03 gal. (3.90L)
Max. Reciprocating Speed	145 cpm
Body Structure Material Option	Cast Steel/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic)
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	83kg/ 42kg/ 60kg/ 40kg

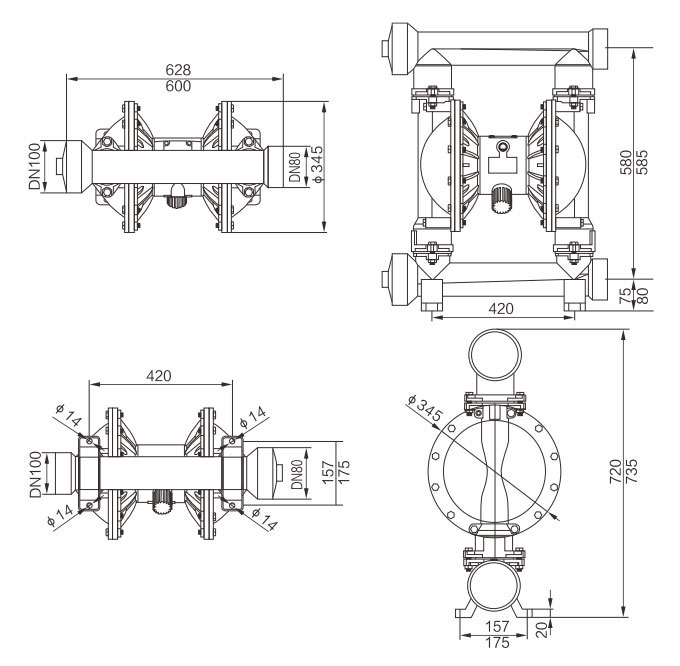

Dimensions (Unit: mm)

Air Consumption Diagram

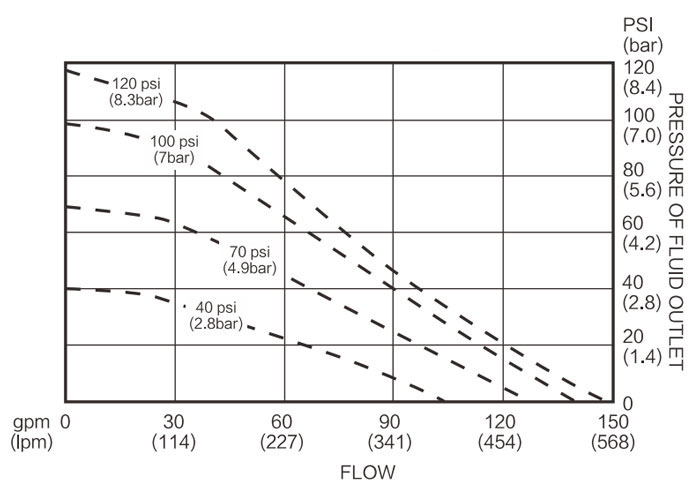

Fluid Flow Diagram

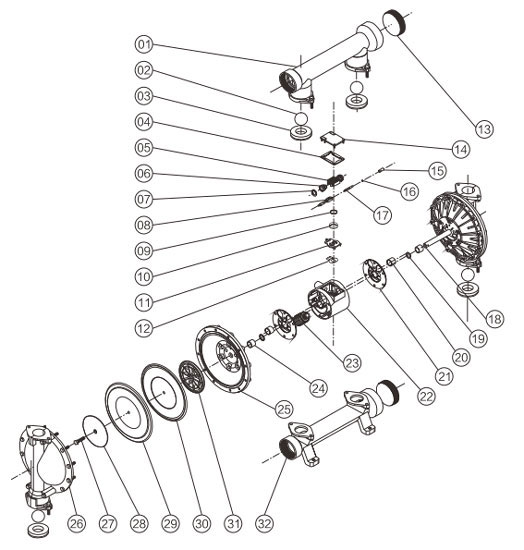

Details

1	Discharge outlet (top cover)	11	Sliding plate	22	Air valve chamber
2	Sealing ball	12	Sliding plate gasket	23	Muffler
3	Sealing seat	13	Plug	24	Pitman shaft sleeve
4	Air valve cover gasket	14	Air valve chamber cover	25	Baffle
5	Large slider aluminum piece	15	Auxiliary shaft cover	26	Column
6	Piston	16	Auxiliary shaft O-ring	27	Clamp screw
7	V-Ring	17	Auxiliary shaft	28	Outer clamp
8	Small slider	18	Pitman shaft	29	PTFE diaphragm
9	Large slider O-ring	19	V-Ring	30	Poly rubber diaphragm
10	Large slider plastic ring	20	Piston sleeve	31	Inner clamp
10	Large slider plastic ring	21	Air valve chamber gasket	32	Feed inlet (bottom cover)

Applications

Tips: Air Operated Double Diaphragm Pump Applications

Air operated double diaphragm pump can adopt Fluor rubber, PTFE, butadiene rubber, neoprene, polytetrafluoroethylene as diaphragm material according to different fluid media. The pneumatic dual diaphragm pump placed various special places used for pumping all kinds of media that conventional pumps can’t obtain satisfactory results. AODD Pumps apply to the following areas:

Sewage treatment: lime slurry, soft sediment, sewage, chemicals, waste water.
Petrochemical industry: crude oil, heavy oil, grease, mud, sludge.
Food industry: Liquid semi-solid, chocolate, salt water, vinegar, syrup, rapeseed oil, soybean oil, honey, animal blood, yeast, syrup, concentrate, gas-liquid mixture, wine, juice, corn syrup.
Construction industry: cement paste, ceramic tile binder, rock paste, ceiling finish.
Pharmaceutical industry: solvent, acid, alkali, plant extract liquid, ointment, plasma and other kinds of pharmaceutical materials liquid.
Metallurgy, casting and dyeing industries: hydroxide and carbonized pulp, metal pulp, dust washing pulp.
Furniture industry: dyeing agent, white wood glue, binder, varnish, dispersion system, solvent, epoxy resin, starch binder.
Coating industry: resin, solvent, colorant, paint.
