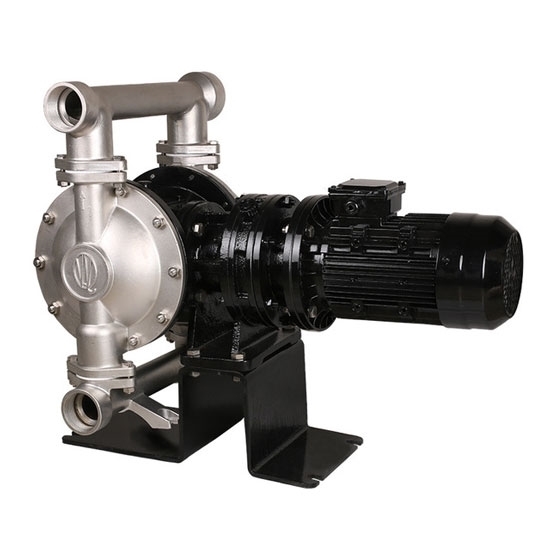

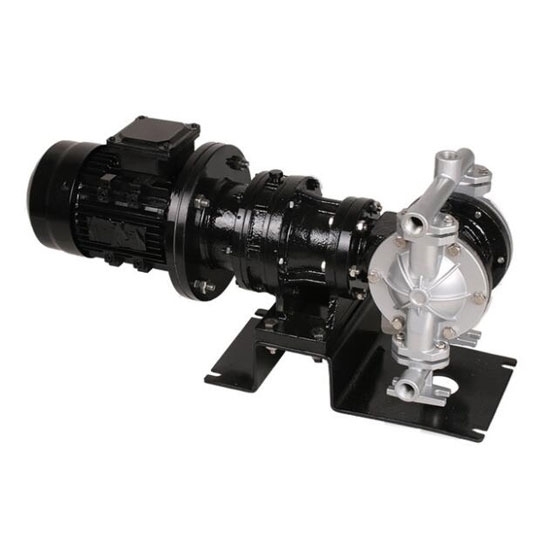

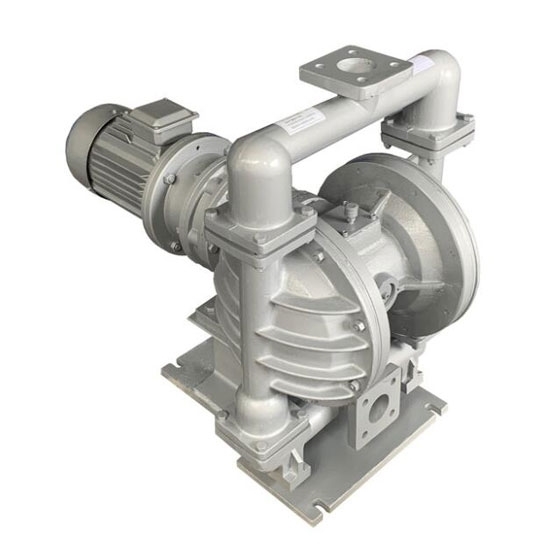

Model	CHN-DBY3-50
Max. Flow	24 GPM (5.5 m³/h)
Fluid Inlet Size	2 inch (DN50)
Fluid Outlet Size	2 inch (DN50)
Connection Type (Optional)	NPT, BSPT, ANSI Flanged, DIN Flanged
Suction Lift	13 ft. (4m)
Head	100 ft. (30m)
Outlet Pressure	3 kgf/cm²
Motor Speed	1450 rpm
Motor Voltage	380V
Motor Power	1.5kW
Reducer Speed Ratio	1:17
Working Temperature	Polypropylene: 70℃ Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃
Body Material (Optional)	Polypropylene, Aluminum Alloy, Stainless Steel, Cast Iron
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	94kg, 94kg, 108kg, 108kg

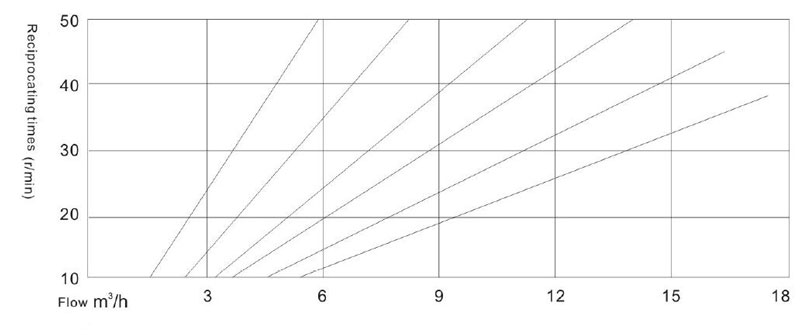

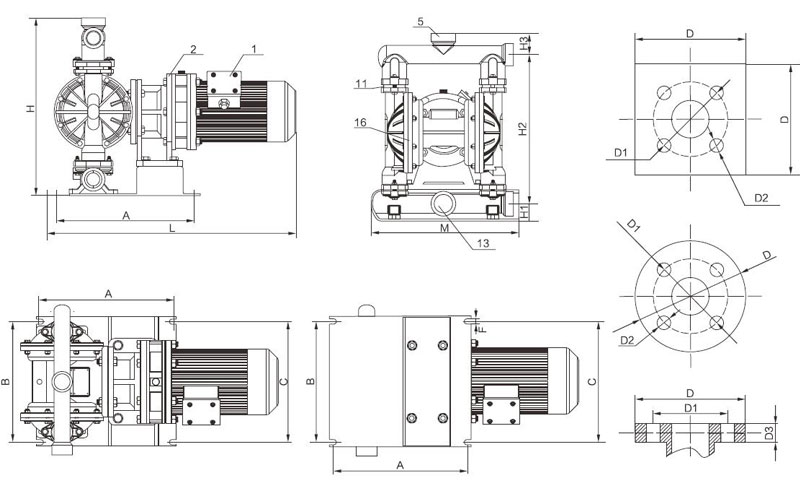

Model	A	B	C	F	L	H	H1	H2	H3	M	Thread Type (NPT, BSPT)	Flange Type (ANSI, DIN)
												D	D1	D2	D3
CHN-DBY3-50	425	155	155	14	775	585	97	445	43	420	2	140	110	4 - φ14	16

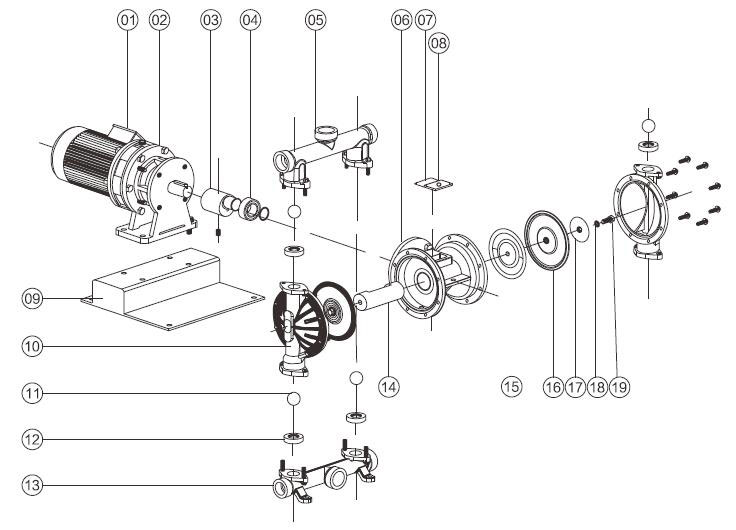

1	motor	8	Grease Nipple	14	Piston Shaft
2	Reducer	9	Footing	15	Inner Press Plate
3	Wobber	10	Pump Body	16	Diaphragm
4	Bearing	11	Sealing Ball	17	Outer Press Plate
5	Outlet Pipe	12	Sealing seat	18	Sealing Gasket
6	Iternediate	13	Inlet Pipe	19	Press Plate Screw
7	Cover Plate	13	Inlet Pipe	19	Press Plate Screw
