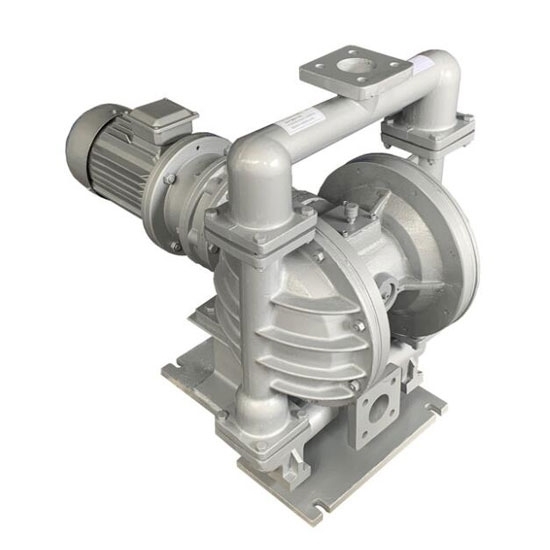

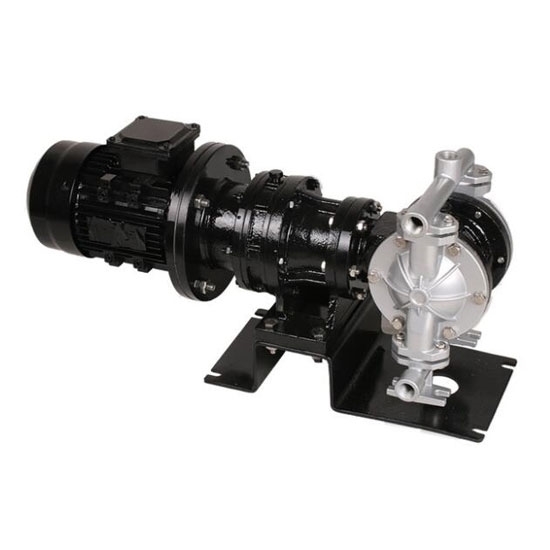

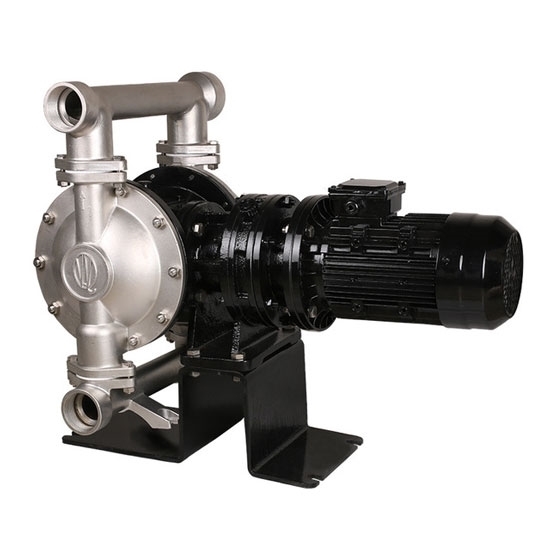

1-1/2" Electric Diaphragm Pump, 17.5GPM, 1.5kW

Home > Pumps > Diaphragm Pump > Electric Diaphragm Pump

Send Inquiry

1-1/2" Electric Diaphragm Pump, 17.5GPM, 1.5kW

$2117.99

Factory price 1-1/2 inch (DN40) electric operated diaphragm pump for sale, with 380V motor, 1.5 kW, gear ratio 1:17, body mat

SKU: CHN-EODD-40

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

EODD pump is a reciprocating diaphragm pump with electric motor for pumping different kinds of virulent, inflammable, volatile liquids and recovering hot water.

Specification

Model	CHN-DBY3-40
Max. Flow	17.5 GPM (4 m³/h)
Fluid Inlet Size	1-1/2 inch (DN40)
Fluid Outlet Size	1-1/2 inch (DN40)
Connection Type (Optional)	NPT, BSPT, ANSI Flanged, DIN Flanged
Suction Lift	13 ft. (4m)
Head	131 ft. (40m)
Outlet Pressure	3 kgf/cm²
Motor Speed	1450 rpm
Motor Voltage	380V
Motor Power	1.5kW
Reducer Speed Ratio	1:17
Working Temperature	Polypropylene: 70℃ Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃
Body Material (Optional)	Polypropylene (Plastic), Aluminum Alloy, Stainless Steel, Cast Iron
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	87kg, 89kg, 96kg, 98kg

Dimensions (Unit: mm)

Model

Thread Type (NPT, BSPT)

Flange Type (ANSI, DIN)

CHN-DBY3-40

425

155

760

560

125

400

340

1-1/2

130

100

4 - φ14

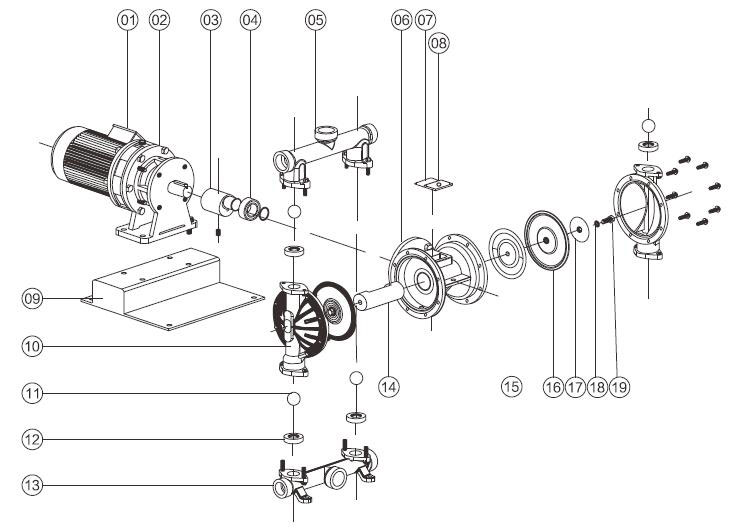

Flow Diagram

Details

1	motor	8	Grease Nipple	14	Piston Shaft
2	Reducer	9	Footing	15	Inner Press Plate
3	Wobber	10	Pump Body	16	Diaphragm
4	Bearing	11	Sealing Ball	17	Outer Press Plate
5	Outlet Pipe	12	Sealing seat	18	Sealing Gasket
6	Iternediate	13	Inlet Pipe	19	Press Plate Screw
7	Cover Plate	13	Inlet Pipe	19	Press Plate Screw

Tips: What is an electric diaphragm pump?

Electric diaphragm pump is a new type of motor driven pump. Because breakthrough progress in diaphragm material, it is used in petrochemicals, ceramics, metallurgy and other industries. It is characterized by no need to irrigate water and strong self-priming ability. It can directly separate the conveyed medium from the transmission mechanical parts, and the medium will never leak to the outside. Moreover, the electric diaphragm pump itself has no shaft liquid seal, and the service life is greatly extended. Electric diaphragm pumps have taken an absolute leading position in the painting and ceramic industries. It has an irreplaceable position with other pumps in the fields of environmental protection, wastewater treatment, construction, sewage, and fine chemicals.

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps

1-1/2&quot; Electric Diaphragm Pump, 17.5GPM, 1.5kW

1-1/2" Electric Diaphragm Pump, 17.5GPM, 1.5kW
