1/2" Electric Diaphragm Pump, 3.3GPM, 0.55kW

Home > Pumps > Diaphragm Pump > Electric Diaphragm Pump

Send Inquiry

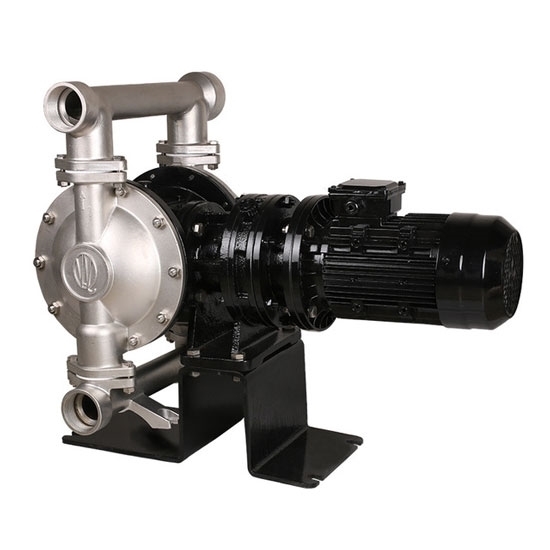

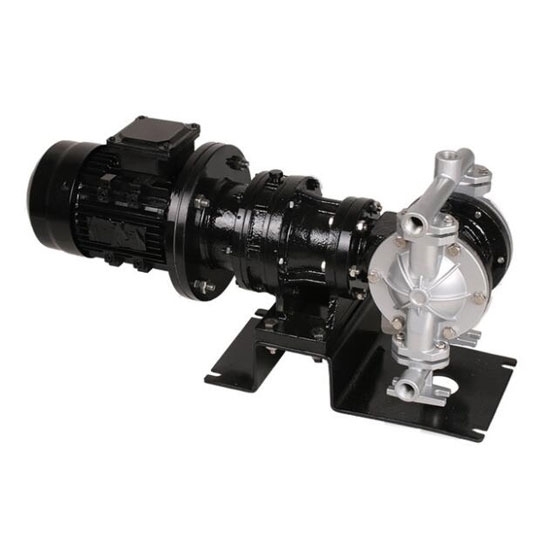

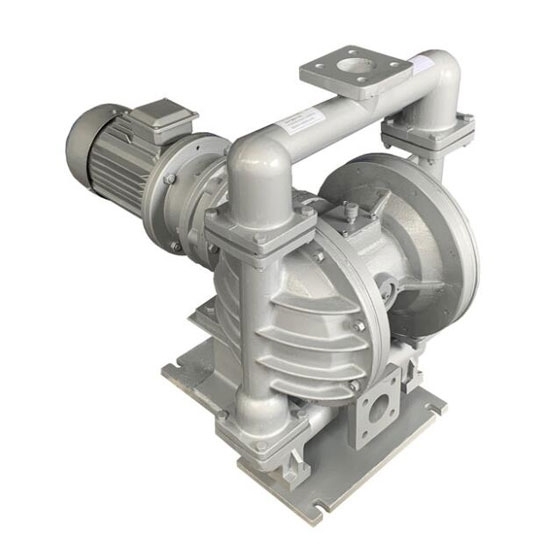

1/2" Electric Diaphragm Pump, 3.3GPM, 0.55kW

$1158.99

Buy 1/2 inch electric operated diaphragm pump at economical price, with 380V motor, 0.55kW, speed ratio 1:17, selectable body

SKU: CHN-EODD-15

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

EODD pump is a reciprocating diaphragm pump with electric motor for pumping different kinds of virulent, inflammable, volatile liquids and recovering hot water, manufacturer direct sale.

Specification

Model	CHN-DBY3-15
Max. Flow	3.3 GPM (0.75 m³/h)
Fluid Inlet Size	1/2 inch (DN15)
Fluid Outlet Size	1/2 inch (DN15)
Connection Type (Optional)	NPT, BSPT, ANSI Flanged, DIN Flanged
Suction Lift	10 ft. (3m)
Head	100 ft. (30m)
Outlet Pressure	3 kgf/cm²
Motor Speed	1450 rpm
Motor Voltage	380V
Motor Power	0.55kW
Reducer Speed Ratio	1:17
Working Temperature	Polypropylene: 70℃ Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃
Body Material (Optional)	Polypropylene (Plastic), Aluminum Alloy, Stainless Steel, Cast Iron
Diaphragm Material	Butyronitrile (Default)/ Teflon (Customizable)
Weight	41kg, 42kg, 44kg, 45kg

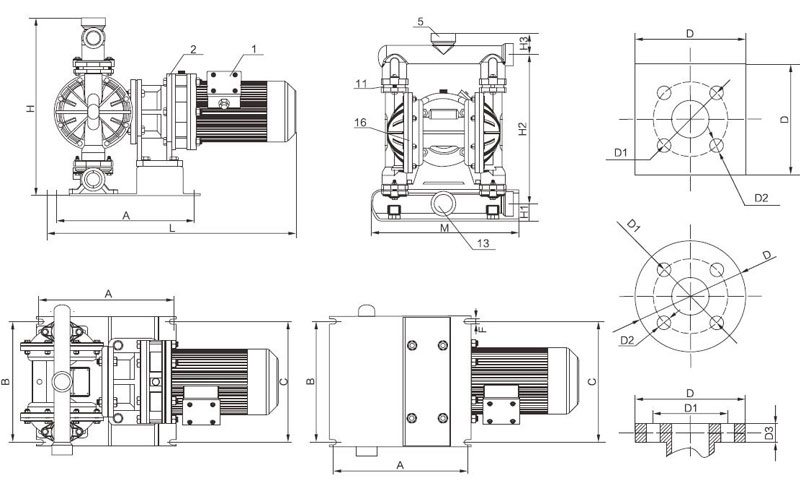

Dimensions (Unit: mm)

Model

Thread Type (NPT, BSPT)

Flange Type (ANSI, DIN)

CHN-DBY3-15

340

145

630

330

215

220

1/2

4 - φ12

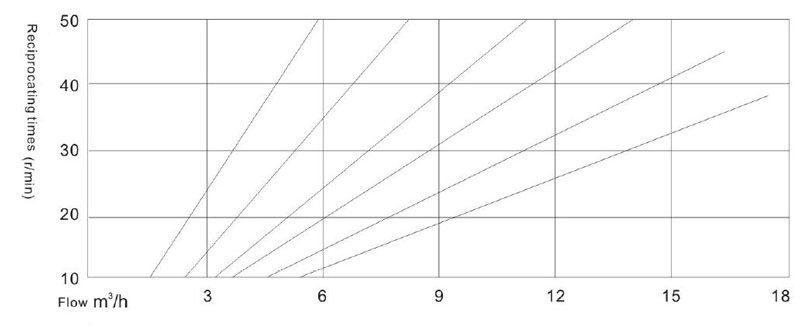

Flow Diagram

Details

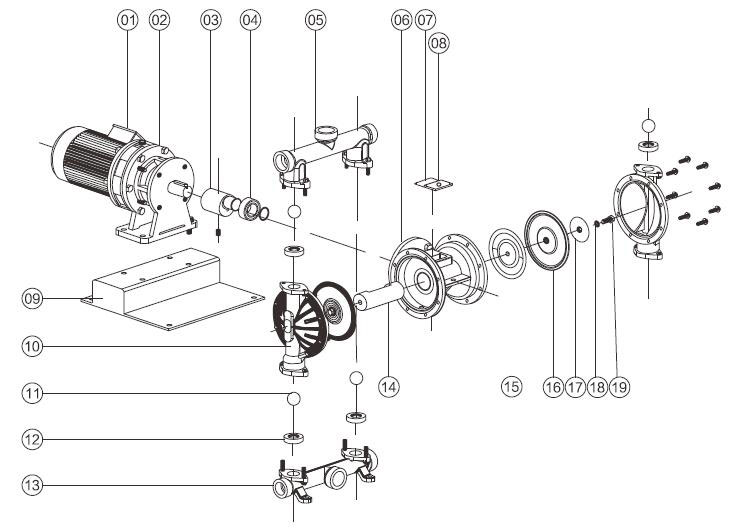

1	motor	8	Grease Nipple	14	Piston Shaft
2	Reducer	9	Footing	15	Inner Press Plate
3	Wobber	10	Pump Body	16	Diaphragm
4	Bearing	11	Sealing Ball	17	Outer Press Plate
5	Outlet Pipe	12	Sealing seat	18	Sealing Gasket
6	Iternediate	13	Inlet Pipe	19	Press Plate Screw
7	Cover Plate	13	Inlet Pipe	19	Press Plate Screw

Tips: Working principle of electric operated double diaphragm pump

The electric motor drives the diaphragm on the plunger son left and right ends through the reducer to make reciprocating motions from left to right. Inside the left and right pump cavities, there are four upper and lower non-return ball valves making motions to change volumes of the working cavities and drive the four non-return ball valves to open and close alternately, thus sucking and discharging the liquid continually.

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps

1/2&quot; Electric Diaphragm Pump, 3.3GPM, 0.55kW

1/2" Electric Diaphragm Pump, 3.3GPM, 0.55kW
