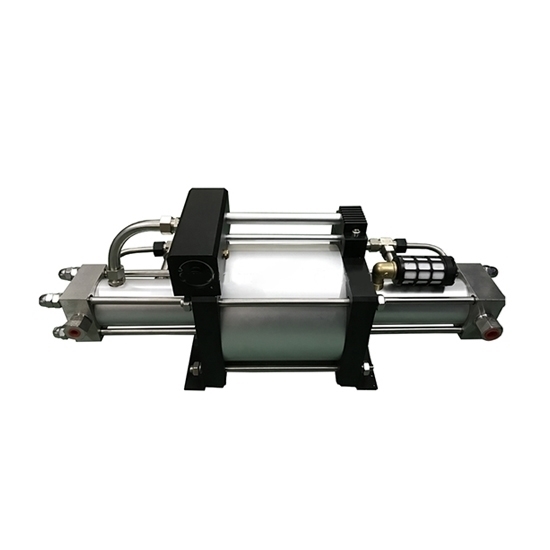

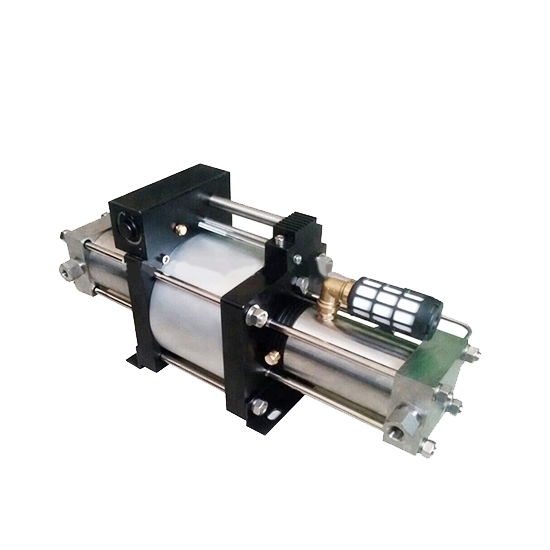

40:1 Air pressure booster, 125-320 bar (217- 4641 psi) with 320 L/ min maximum flow at driven air pressure of 40 bar, 160mm drive piston diameterl. The gas booster pump adopts a single gas control non-equilibrium gas distribution valve to realize the reciprocating motion of the pump. All the pumps are made of aluminum alloy and stainless steel.

Specification:

Applications:

• ATO 40: 1 air pressure booster is widly used by pressure test with gas/ air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
• Charging of gas cylinder and accumulator with nitrogen. Nitrogen gas spring charging. Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
• Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

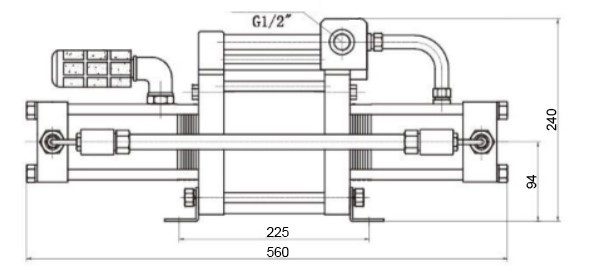

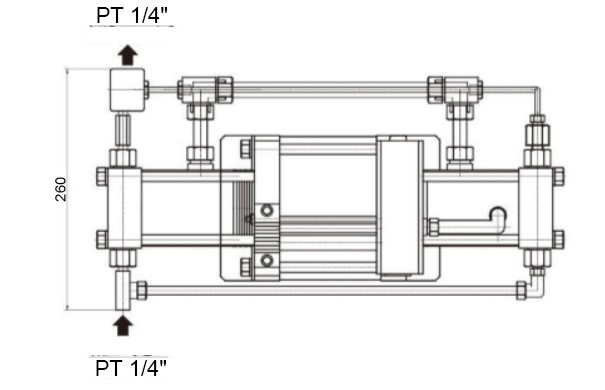

Dimensions (Unit: mm)

Tips: What are the Features of ATO 40:1 Air Pressure Booster?

1. ATO 40:1 air pressure booster it is driven by compressed air and does not require electricity when connected to a common air compressor.
2. In order to prolong the service life of the pump, the driving air pressure should not be higher than 8 bar.
3. No air lubricator is required.
4. When the pressure reaches 80 MPa (11600 psi), there is no separation between the hydrocarbon free air and gas parts
5. Every air booster is built in cooling system.
