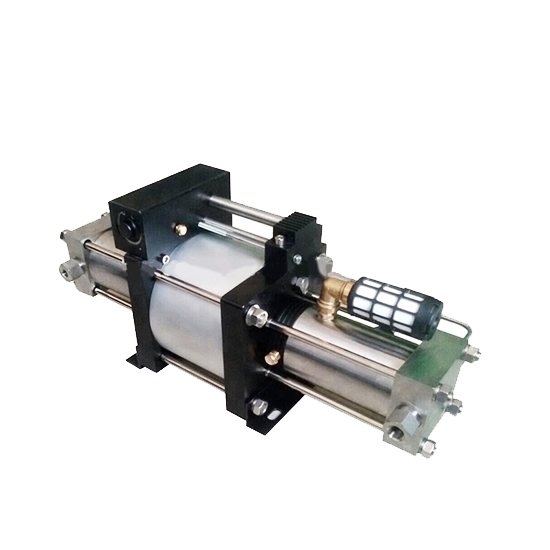

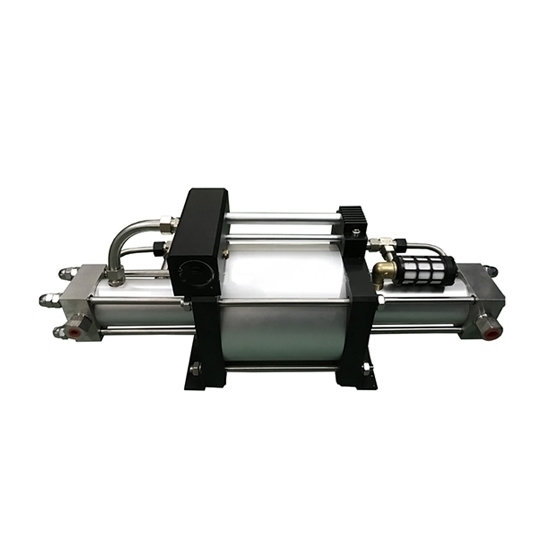

15:1 Air Pressure Booster, 5-120 bar (72-1740 psi)

10: 1 Air pressure booster, 5-120 bar (72- 1740 psi) with 410 L/ min maximum flow at driven air pressure of 40 bar, 160mm drive piston diameterl. ATO air driven gas boosters provide for pressures up to 80 Mpa. Used for oil freecompression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygeand natural gas.

Specification:

Applications:

• ATO 15: 1 air pressure booster is widly used by pressure test with gas/air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
• Charging of gas cylinder and accumulator with nitrogen. Nitrogen gas spring charging. Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
• Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

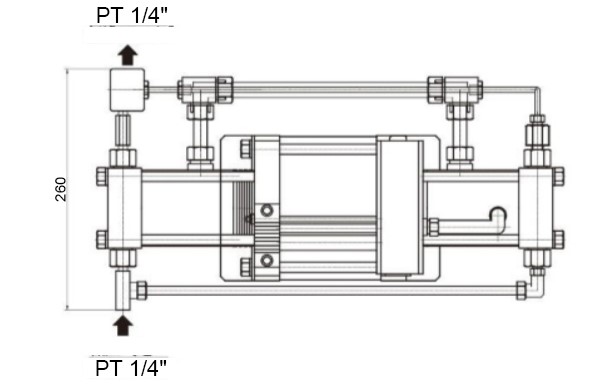

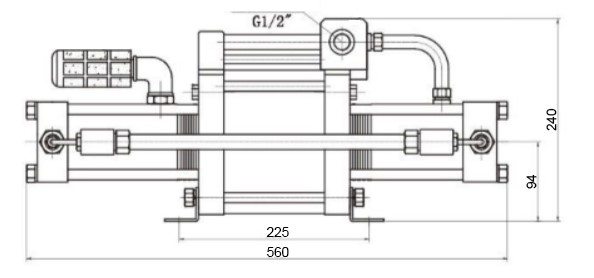

Dimensions (Unit: mm)

Tips: What place is suitable for 15: 1 Air Pressure Booster？

1. Power of steel connector.
2. Performance test and calibration of static and dynamic test instruments and instruments for aerospace accessories.
3. Water injection from high pressure cleaning and water cutting equipment to transport fluid in dangerous areas.
4. Clamping power of lubricating system oil filling valve of mechanical equipment.
5. Press in the sleeve liner and press out the power control ground safety valve and underground safety valve.
