Home > Pumps > Gear Pump

Send Inquiry

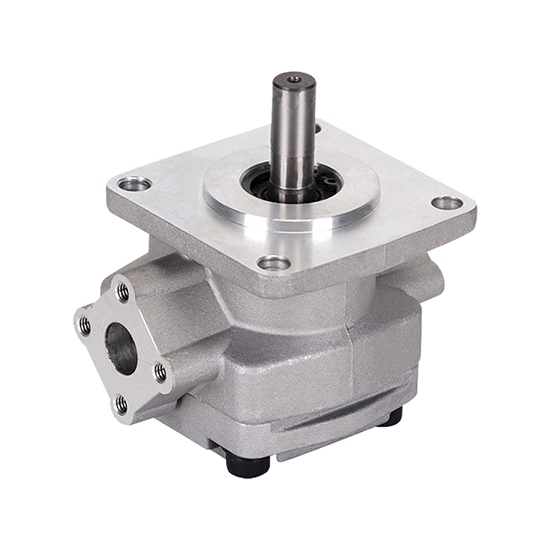

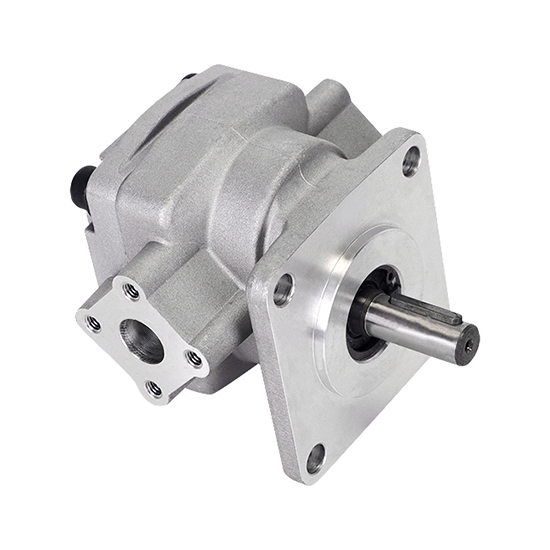

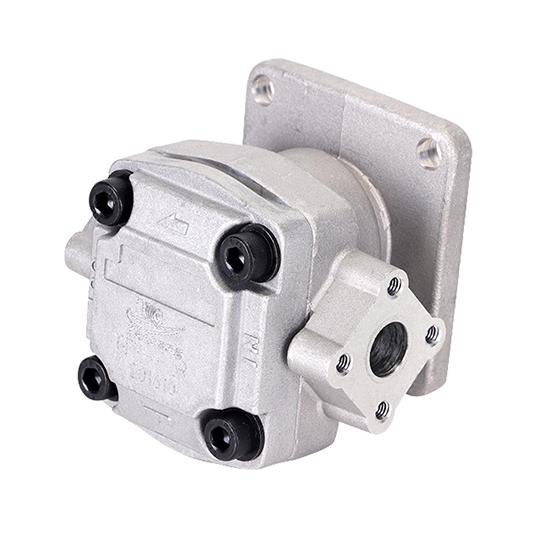

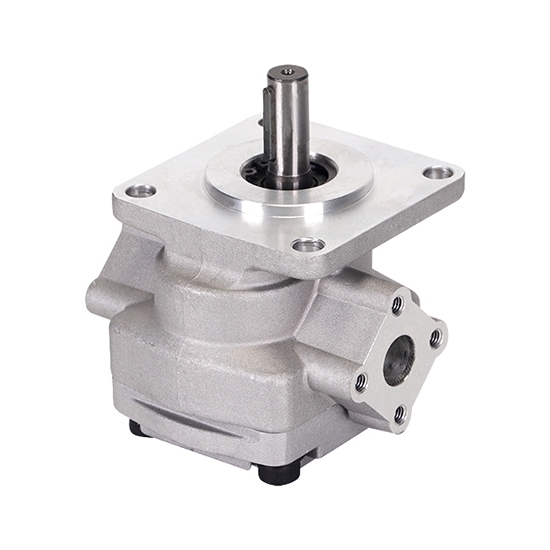

4.5/5.5/6.5/7.5 GPM Hydraulic Single Gear Pump, 3600 psi

$169.69

Hydraulic single gear pump working at 3000 psi pressure (maximum 3600 psi), affordable price. Displacement 4.5/5.5/6.5/7.5 Ma

SKU: CHN-HGPP-4567

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Buy 3600 psi hydraulic single gear pump from ideal supplier. Optional displacement 4.5/5.5/6.5/7.5 Max. GPM, speed 500~4000 rpm, clockwise or counterclockwise rotary is provided. ATO hydraulic gear pump has small size, high pressure, high efficiency and low price, which has wide applications in automobile, hardware, industrial machinery, textile, commercial machinery, chemical equipment, environmental protection, military industry, national defense, etc.

Specification

Model	CHN-GPY
Displacement	mL/ rev
	2.9	4.1	5.7	7	7.9	8.8	9.9	11.4	11.8
	Max. GPM (Gallon/min)
	3	4.3	4.5	5.5	6.3	5.8	6.5	7.5	7.8
Rated Speed	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm
Max. Speed	4000 rpm	4000 rpm	3000 rpm	3000 rpm	3000 rpm	2500 rpm	2500 rpm	2500 rpm	2500 rpm
Min. Speed	700 rpm	700 rpm	600 rpm	600 rpm	600 rpm	500 rpm	500 rpm	500 rpm	500 rpm
Rated Pressure	3000 psi (21 MPa)
Max. Pressure	3600 psi (25 MPa)
Volumetric Efficiency	92%	92%	92%	92%	92%	93%	93%	93%	93%
Mechanical Efficiency	88%	88%	88%	88%	88%	90%	90%	90%	90%
Weight	1.2 kg	1.2 kg	1.2 kg	1.2 kg	1.2 kg	1.4 kg	1.4 kg	1.4 kg	1.4 kg
Rotary Direction	clockwise, counterclockwise
Mounting Flange	JIS 4-bolt

Features

Hydraulic single gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
Hydraulic single gear pump is suitable for JIS 4-bolt standard flange installation. The input shaft connection form is flat key shaft.
Hydraulic single gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
Hydraulic single gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
DU composite material bearings and high-performance sealing elements, small starting torque, good sealing performance, and strong anti-fouling ability, so that hydraulic single gear pump can work efficiently under harsh working conditions.

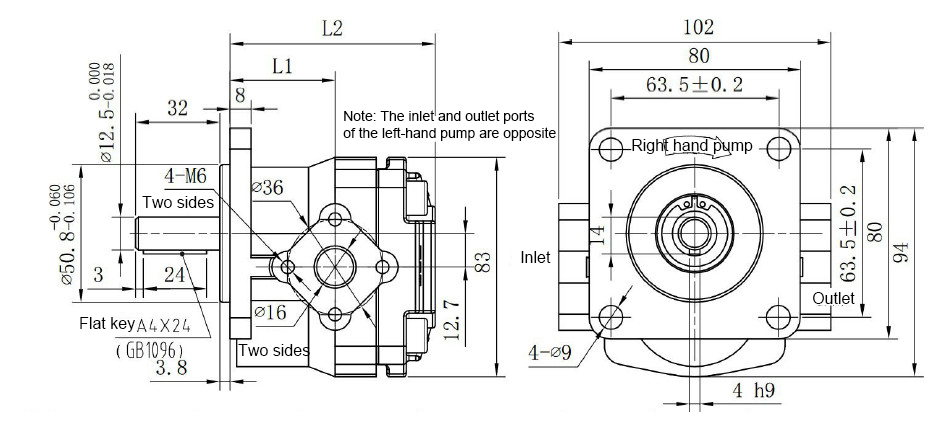

4.5/5.5/6.5/7.5 GPM Hydraulic Single Gear Pump Dimensions Diagram (Unit: mm)

Displacement	L1	L2
2.9 mL/ rev	39.9	78
4.1 mL/ rev
5.7 mL/ rev
7 mL/ rev
7.9 mL/ rev
8.8 mL/ rev	43.7	91
9.9 mL/ rev
11.4 mL/ rev
11.8 mL/ rev

Tips: The influence of oil seal on hydraulic single gear pump.

If the oil seal of hydraulic single gear pump is worn out, the rubber seal ring in the pump will deteriorate and lose its elasticity, and it will lose its sealing and isolation effect on the high-pressure oil chamber and the low-pressure oil chamber. This will cause the oil pressure in high-pressure oil chamber to flow to low-pressure oil chamber, reducing the working pressure and flow rate of hydraulic single gear pump. The self-tightening oil seal of ATO hydraulic single gear pump is a skeleton type oil seal with a spring. If the oil seal is damaged or disrepaired for a long time, air will be sucked into the oil pump from the gap between oil seal and the main shaft journal, and enter the oil tank through the return pipe, producing a lot of bubbles in oil tank. This will cause the oil in oil tank to decrease, and the oil in the engine oil sump will increase, making the oil cylinder lift slowly or unable to lift.
