Model		CHN-UL1061-28
UL Style		1061
Size		28 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80℃

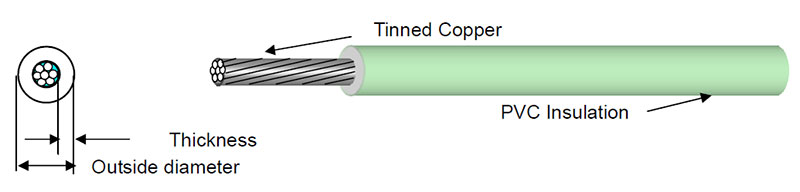

Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 7/ 0.127mm
Conductor Resistance 20℃		239.00 Ω/km
Conductor Diameter		0.38mm
Insulation		PVC
Insulation Thickness	Nom.	0.25mm
	Min.	0.18mm
Overall Diameter	Average	0.88mm
	Tolerance	±0.10mm
Package		2000 ft/roll
Weight		1kg
