Model		CHN-UL1015-22
UL Style		1015
Size		22 AWG
Rated Voltage		600V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		105 ℃

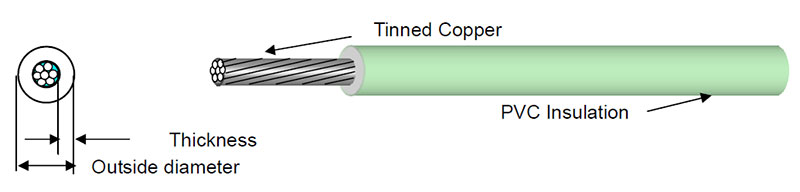

Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 17/ 0.16mm
Conductor Resistance 20℃		59.40 Ω/km
Conductor Diameter		0.76mm
Insulation		PVC
Insulation Thickness	Nom.	0.80mm
	Min.	0.69mm
Overall Diameter	Average	2.36mm
	Tolerance	±0.10mm

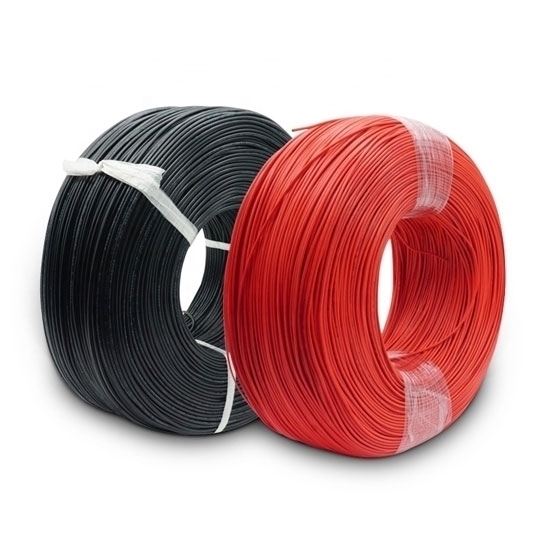

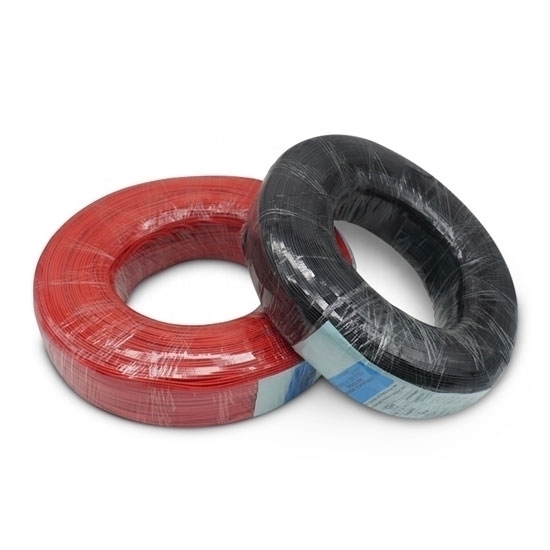

Package		2000 ft/roll
Weight		6kg
