Model		CHN-UL1007-28
UL Style		1007
Size		28 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃

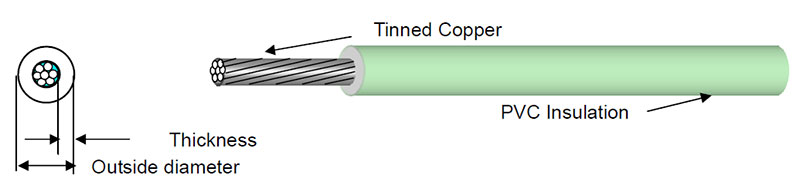

Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 7/ 0.127mm
Conductor Resistance 20℃		239.00 Ω/km
Conductor Diameter		0.38mm
Insulation		PVC
Insulation Thickness	Nom.	0.40mm
	Min.	0.33mm
Overall Diameter	Average	1.18mm
	Tolerance	±0.1mm
Package		2000 ft/roll
Weight		4kg
