Features

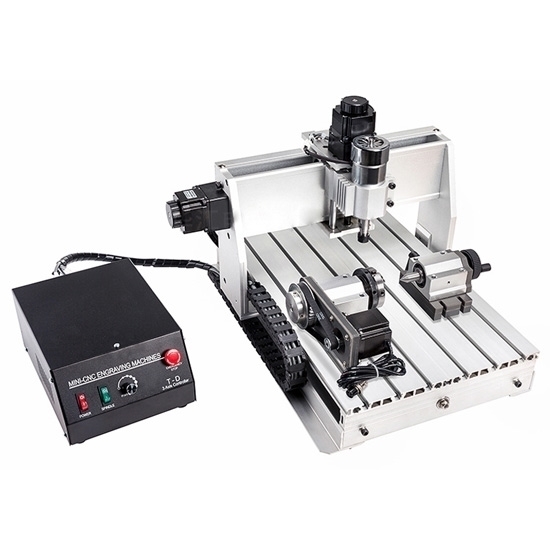

• CNC router tool with 3 axis/ 4 axis version, easy operation and installation
• More steady and strong equiped with aluminum alloy frame materials
• Can be controlled only by desktop computer, not suitable for laptop
• Mach 3 software is simple and intelligent
• Flexible coupling can be used for high torque transmission
• Spindle motor knob is useful for small positioning adjustment, with steady and strong support structure
• Cover plates reducing pollution for the screws and shafts
• This machine tool already be equiped new1605 ball screws, anti-blackflash, high precision, long life circle

Application: This high quality CNC router is a USB engraving machine suitable for various material such as wood, plastic, MDF board, PVC, acrylic, composite board plywood. It can be used widely to process or make advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryl plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products etc..

Specification

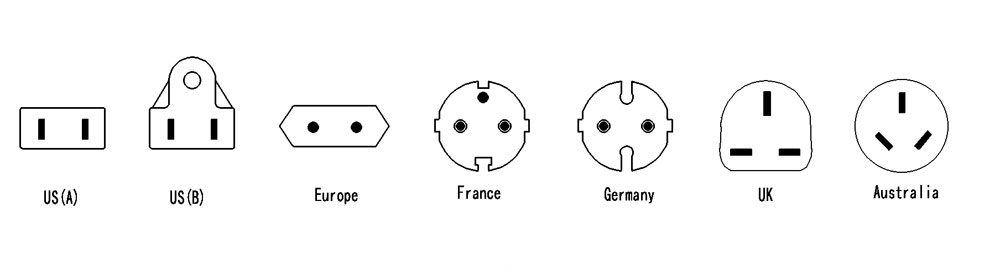

Power Plug Selection

Tips: How to select a spindle motor for CNC router machine?

The spindle motor is an important component of the CNC router engraving machine. The quality of the spindle directly affects the processing speed and accuracy of the engraving machine. How to choose a high-quality engraving machine spindle is very important. The main points of the selection of the CNC router engraving machine spindle motor are summarized:

1. If the pursuit of router engraving machine processing efficiency, processing speed should be fast, and at the same time the amount of cutting and large, such as processing solid wood materials, the need for 3KW above the power of the spindle motor.
2. Whether the spindle motor of engraving machine adopts high-precision bearing, if not, the performance is that the spindle motor overheats after high-speed rotation for a long time, affecting the service life of the spindle motor.
3. See the router machine spindle in different speed rotation, especially high-speed rotation, the sound is uniform and harmonious.
4. See whether the main shaft diameter of the CNC router engraving machine is stressed. The main reference is the ability to cut hard materials at high speed. Some spindles can only be in very low speed under the cutting of hard materials, otherwise the spindle performance will be seriously lost, after a period of time affect the spindle precision, or even appear.
