Home > Industrial Equipment > CNC Router Machine

Send Inquiry

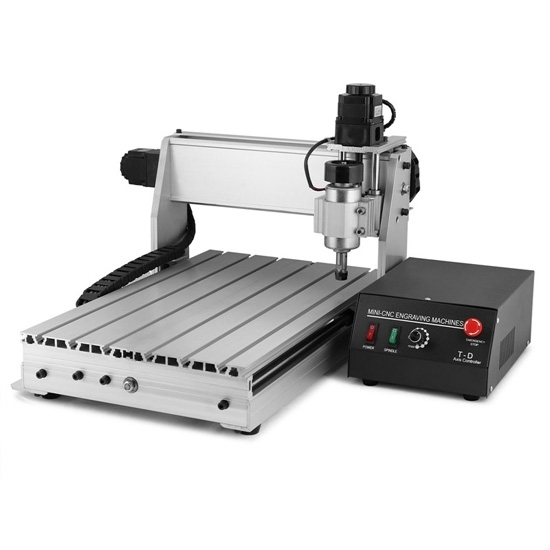

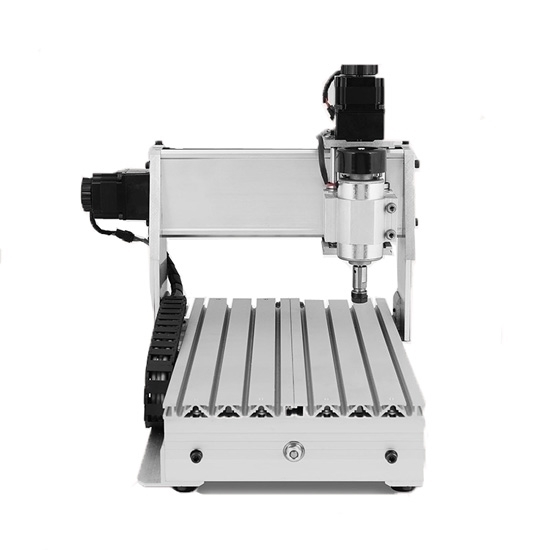

3 Axis/4 Axis CNC Router with 300x400x60mm Working Area

$1297.78

This CNC router tool is a miniature version of engraving machine for those with limited space or a limited budget, can connec

SKU: CHN-ROUTER-3040

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Features

CNC router tool with 3 axis/ 4 axis version, easy operation and installation
More steady and strong equiped with aluminum alloy frame materials
Can be controlled only by desktop computer, not suitable for laptop
Mach 3 software is simple and intelligent
Flexible coupling can be used for high torque transmission
Spindle motor knob is useful for small positioning adjustment, with steady and strong support structure
The chrome shafts is not easy to deform, suitable for long time use

Application: This high quality CNC router is a USB engraving machine suitable for various material such as wood, plastic, MDF board, PVC, acrylic, composite board plywood. It can be used widely to process or make advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryl plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products etc..

Specification

Router Machine Parameters
Model	CHN-3040T	3040T4Z
Machine Type	CNC router engraving machine
Operating Voltage	AC 110V or AC 220V
Frequency	50Hz/ 60Hz

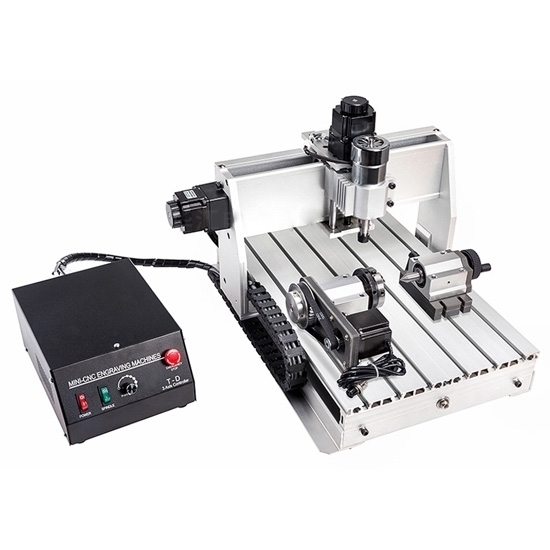

Number of Motor Axis	3 axis	4 axis (added a rotation axis)
Effective Working Travel	300 (X ) mm x 400 (Y) mm x 60 (Z) mm
Shape Dimension	610 x 480 x 400mm
Max.Workpiece Dimension	70mm
Work Table Dimension	320mm x 530mm
Carving Deepth	55mm
Frame Materials	Aluminum alloy 6063 and 6061
Driving Units X Axis	1204 trapezoidal screws
Driving Units Y Axis	1204 trapezoidal screws
Driving Units Z Axis	1204 trapezoidal screws
Sliding Units X Axis	Dia.16mm chrome plate shafts
Sliding Units X Axis	Dia.16mm chrome plate shafts
Sliding Units Z Axis	Dia.12mm chrome plate shafts
Stepper Motor Type	Nema 23, two-phase, 1.8A
Spindle Motor	300w DC motor
Principal Axis Collet	ER11/3.175 mm
Spindle Speed	500-8000rpm/min (PWM stepless speed regulation)
Repeat Accuracy	0.05mm
Empty Line Speed	0-2500mm/min (16 subdivided driving down)
Spindle Precision	Radial beat acuities 0.03 mm
Control Unit	Triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions	G code/ TAB files/ NC file/ NCC files
Communication Interface	Through parallel or USB connection with computer
Software Environment	All
Maximum Speed	0-4000mm/min
Carving Speed	300-2500mm/min (different materials differ)
Machine Weight	28 kg
Certification	CE, ISO
Warranty	2 years

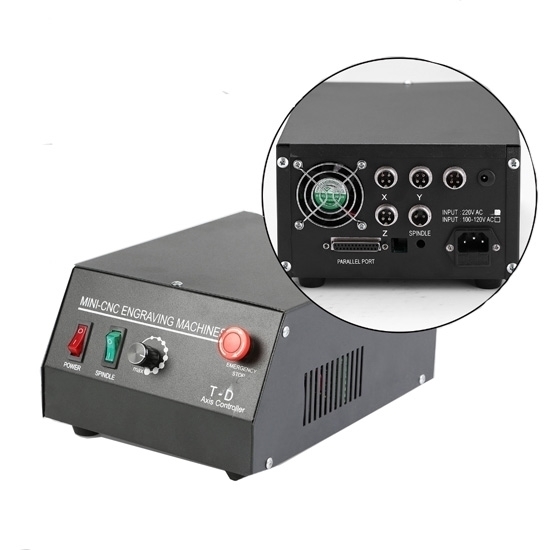

Control Box Parameters
Voltage	AC 110V or AC 220V, 50Hz/ 60Hz (We also stock USA, UK, EU, AU plugs)
Control Unit	2.5A stepper motor driver plus adjustable spindle speed controller
Computer Connection	On board palrallel port, USB
Command Code	G code
Acceptable Software	Only CNCUSB
Protection	Emergency stop button
Package Included
1x Engraving machine 1x Control box 1x Parallel cable 1x Power cable (with a plug based on your selection) 1x Tool box and tools 3x Axis motors 1x Rotary axis and tailstock (just for the 4 axis type router) 2x Connect wires CNCUSB software and machine manual

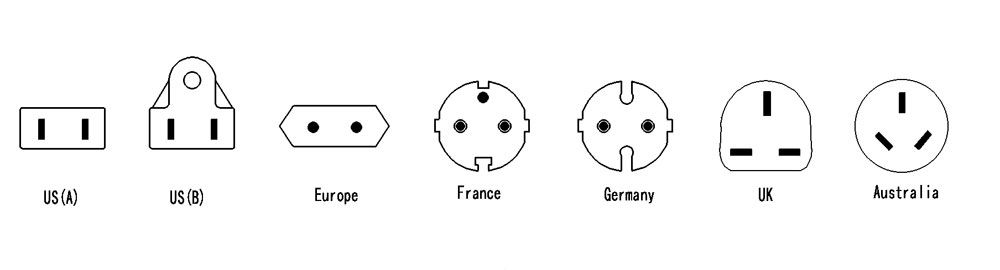

Power Plug Selection

Tips: How to improve the processing quality of CNC router machine?

1. Set the correct and reasonable processing path.

Whether the path is correct and reasonable has a great influence on the processing quality. If the processing technology is not reasonable during programming, such as the path spacing is set too large, the setting of the cutting method is not reasonable, etc. will affect the final processing quality and cause the product surface roughness can not meet the requirements. If the path is set incorrectly, for example, if there is an overcut path, the product size will not meet the requirements directly.

2. Set reasonable feed speed parameters.

Whether the feed rate is appropriate will also affect the final product quality. For example, when finishing the surface, you cannot set a large aluminum profile machining center with a too high feed rate.

3. Select the appropriate tool type and ensure that the tool quality and tool are within the normal wear range.

In other words, it is necessary to ensure that the tool type and size are correct during processing, and that severely worn tools cannot be used. Only such processing quality can be guaranteed.

4. Install high-quality engraving machine spindle bearings.
