Home > Communication & Controller > Programmable Logic Controller

Send Inquiry

PLC Motion Controller, 3-Axis/4-Axis

$926.15

PLC motion controller PM series can execute basic instructions, applied instructions, motion instructions with program capaci

SKU: CHN-PLC-PM

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

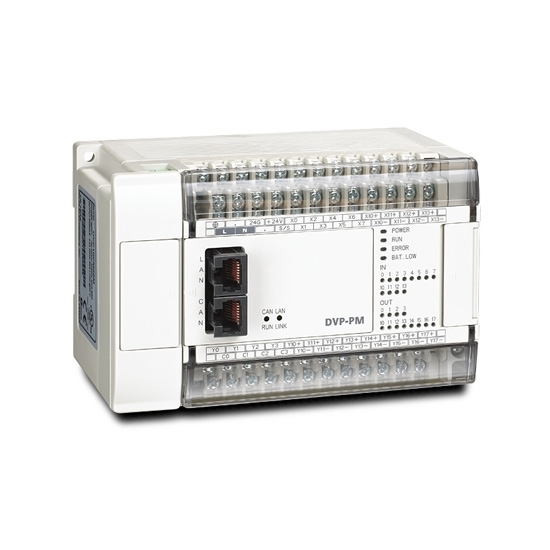

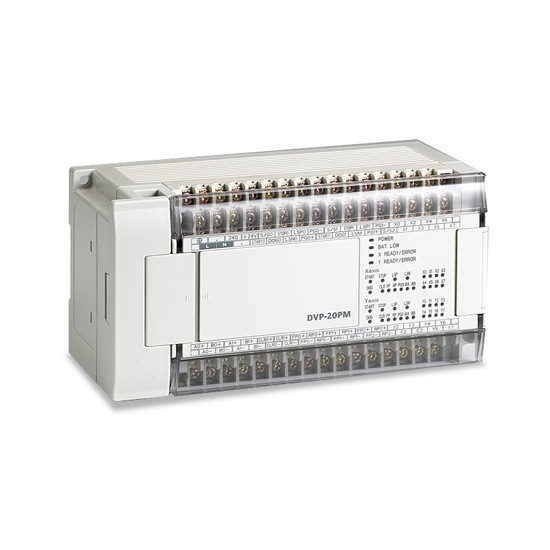

PLC Programmable Logic Controller DVP-PM series is available with DVP10PM00M standard motion controller for general applications and CHN-DVP20PM00D/M advanced motion controllers which are not only excellent motion controllers, but also can be used as motion extension modules and support advanced motion control functions, more flexible in all kinds of applications.

Specification

Model	CHN-DVP10PM00M	CHN-DVP20PM00D/ DVP20PM00M
MPU Points	Built-in 24 I/O, max. 256 I/O point	Built-in 16 I/O, max. 256 I/O point
Program Capacity	64k steps	64k steps
Data Register	10k words	10k words
Features	Excellent execution speed LD: 0.13 μs, MOV: 2.1 μs 4 axes linear interpolation motion control High accuracy PWM 200 kHz output, resolution 0.3% 8 groups of high-speed captures (mark correction, frequency measurement), comparative output, Mark / Mask function (for bag making) Built-in RS-232 and RS-485 ports, and supports standard Modbus ASCII / RTU protocol	Compatible with G-code / M-Code 3-axis linear / arc / helical interpolation Supports electronic cam (2,048 points) function for flying shear and rotary cut applications All models can be applied as motion controllers or extension modules Built-in RS-232 and RS-485 ports, and supports standard Modbus ASCII/RTU protocol
Motion Control Functions	High-speed pulse output: built-in 6 sets of A / B phase pulse outputs 2 sets of 200 kHz output, 4 sets of 1 MHz output 6 sets of high-speed counters and hardware digital filter for counting Supports MPG inputs Single-axis motion control function (supports MPG, single-speed and two-speed positioning) Electronic gear function	Built-in A / B phase differential signal outputs: 2 sets (DVP20PM00D) / 3 sets (DVP20PM00M) max. differential output frequency 500 kHz Supports MPG inputs Single-axis motion control function (supports MPG, single-speed and two-speed positioning) Electronic gear function
Function Card (Optional)	DVP-FPMC Ethernet/CANopen communication card: Complies with CANopen CiA301 V4.0.2 protocol. Provides high-speed program upload/download via Ethernet.
Electrical
Power Supply	100 ~ 240V AC (-15% ~ +10%), 50/60Hz ±5%
Fuse Capacity	2A / 250V AC
Power Consumption	60VA
DC 24V Current Output	500mA
Power Protection	DC 24V output short circuit protection
Voltage Withstand	1500VAC (Primary-secondary), 1500VAC (Primary-PE), 500VAC (Secondary-PE)
Insulation Resistance	>5MΩ at 500VDC (between all I/O points and ground)
Noise Immunity	ESD: 8kV Air Discharge EFT: Power Line: 2kV, Digital I/O: 1kV, Analog & Communication I/O: 250V
Grounding	The diameter of grounding wire shall not be less than that of L, N terminal of the power supply. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.)
Environment	Operation: 0°C~55°C (temperature), 5~95% (humidity), pollution degree 2 Storage: -25°C~70°C (temperature), 5~95% (humidity)
Vibration/Shock Immunity	International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea)
Weight	612g	696g
Documents (Please refer to the below PDF for more details)
Instruction Sheet	DVP10PM00M Instruction Sheet	DVP20PM00D/M Instruction Sheet

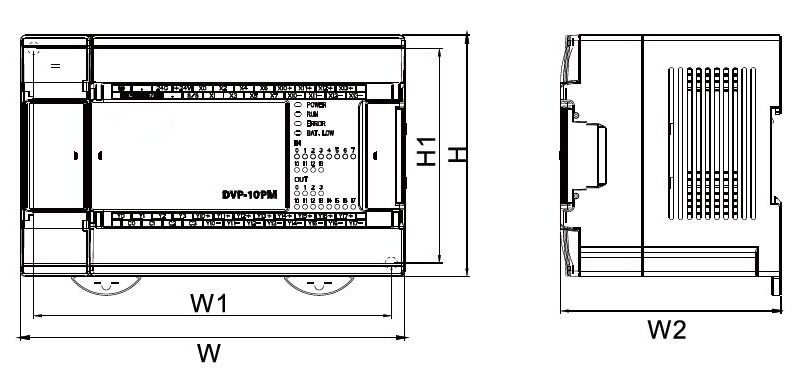

Dimensions (Unit: mm)

Model	H	H1	W	W1	W2
DVP10PM00M	90	80	143.5	133.5	82
DVP20PM00D	90	80	174	164	82
DVP20PM00M	90	80	174	164	82
