Programmable Logic Controller, 16/20/32/40/48/64/80 I/O

$308.92

High-performance PLC has large program capacity (30k steps) and data registers (12k words), with 16/20/32/40/48/64/80 I/O poi

SKU: CHN-PLC-EH3

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

High-performance Programmable Logic Controller (PLC) DVP-EH3 provides large program capacity (30k steps) and data register (12k words) for more demanding and complex applications such as high-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.

Specification

Model		CHN-DVP-EH3
Built-in I/O Points		16 / 20 / 32 / 40 / 48 / 60 / 80
Power Supply		100 ~ 240V AC (-15% ~ +10%), 50/60Hz ±5%
Fuse Capacity		2A / 250V AC
Power Consumption		16/20 I/O: 50VA 32/40/48 I/O: 60VA 60/80 I/O: 80VA
DC 24V Current Output		500mA
Power Supply Protection		DC 24V output short circuit protection
Voltage Withstand		1500VAC (Primary-secondary), 1500VAC (Primary-PE), 500VAC (Secondary-PE)
Insulation Resistance		>5MΩ at 500VDC (between all I/O points and ground)
Noise Immunity		ESD: 8kV Air Discharge EFT: Power Line: 2kV, Digital I/O: 1kV, Analog & Communication I/O: 1kV Damped-Oscillatory Wave: Power Line 1kV, Digital I/O: 1kV RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Grounding		The diameter of grounding wire shall not be less than that of L, N terminal of the power supply. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.)
Environment		Operation: 0°C~55°C (temperature), 5~95% (humidity), pollution degree 2 Storage: -25°C~70°C (temperature), 5~95% (humidity)
Vibration/Shock Resistance		International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea)
Weight		See below "Selection Table"

Selection Table

Model	No. of Inputs	No. of Outputs	Output Type	Input/Output	Weight
DVP16EH00R3	8	8	Relay	2 counters of 200 kHz input	500g
DVP16EH00T3	8	8	Transistor	2 counters of 200 kHz input 2 axes of 200 kHz output	480g
DVP20EH00R3	12	8	Relay	2 counters of 200 kHz input, 1 counter of 20 kHz input	520g
DVP20EH00T3	12	8	Transistor	2 counters of 200 kHz input, 2 axes of 200 kHz output	500g
DVP32EH00R3	16	16	Relay	4 counters of 200 kHz input	652g
DVP32EH00T3	16	16	Transistor	4 counters of 200 kHz input, 4 axes of 200 kHz output	612g
DVP32EH00M3	16	16	Relay Differenttial output	4 counters of 200 kHz input (Differenttial: 2 sets), 2 axes of 200 kHz output (Differenttial: 2 axes)	644g
DVP32EH00MT	16	16	Transistor Differenttial output	4 counters of 200 kHz input (Differenttial: 2 sets) 2 axes of 200 kHz output (Differenttial: 2 axes)	615g
DVP32EH00R3-L*	16	16	Relay	4 counters of 200 kHz input	652g
DVP32EH00T3-L*	16	16	Transistor	4 counters of 200 kHz input 4 axes of 200 kHz output	612g
DVP40EH00R3	24	16	Relay	4 counters of 200 kHz input	710g
DVP40EH00T3	24	16	Transistor	4 counters of 200 kHz input 4 axes of 200 kHz output	675g
DVP48EH00R3	24	24	Relay	4 counters of 200 kHz input	748g
DVP48EH00T3	24	24	Transistor	4 counters of 200 kHz input 4 axes of 200 kHz output	688g
DVP64EH00R3	32	32	Relay	4 counters of 200 kHz input	836g
DVP64EH00T3	32	32	Transistor	4 counters of 200 kHz input 4 axes of 200 kHz output	756g
DVP80EH00R3	40	40	Relay	4 counters of 200 kHz input	948g
DVP80EH00T3	40	40	Transistor	4 counters of 200 kHz input 4 axes of 200 kHz output	848g

Note: * Supports high-speed extension (left-side).

PLC I/O Point Specification

Input Points
Item		Two Differential Inputs (200kHz)	24V DC Single Common Port Input
			200kHz	20kHz	10kHz	Normal Input
Input Wiring Type		Independent wiring	Change wiring from S/S to SINK or SOURCE
Input Voltage (±10%)		5~24V DC	24V DC
Input Point Configuration		^#1	^#2	^#3	^#4	^#5
Input Impedance		4.7k Ohm	3.3k Ohm		4.7k Ohm
Active Level	Off → On	>1mA (5V)	>6mA (18.5V)		>4mA (16.5V)
	On → Off	<0.4mA (2V)	<2.2mA (8V)		<1.5mA (8V)
Response Time ^#6	Off → On	<150ns	<150ns	<3.5μs	<8μs	<10ms
	On → Off	<3μs	<3μs	<20μs	<60μs	<20ms
#1. For DVP32EH00M3/MT, the bandwidth of the two differential input points X0, X1, X4, and X5 is 200kHz. #2. The bandwidth of the input points X0, X1, X4, X5, X10, X11, X14, and X15 is 200kHz (excluding X10 and X11 on DVP20EH3). #3. For DVP20EH00R3/T3, the bandwidth of the input points X10 and X11 is 20kHz. #4. The bandwidth of the input points X2, X3, X6, X7, X12, X13, X16, and X17 is 10kHz. #5. X20 and above on EH3 are normal input points. #6. The filter times of X0~X7 and X10~X17 can be adjusted by D1020 and D1021 respectively within 0~60ms.

Output Points
Item		Two Differential Outputs ^#1	Single Common Port Transistor Output			Single Common Port Relay Output
			High Speed ^#2	Low Speed ^#3	Normal Output ^#4
Max. Frequency		200kHz	200kHz	10kHz		Load ON/OFF control
Minimum Load		-				2mA/DC power supply
Working Voltage		5VDC	5~30VDC			<250VAC, 30VDC
Insulation		Line driver	Photo coupler isolation			Magnetic isolation
Maximum Load	Resistive	<25mA	0.5A/1 point (4A/COM)			2A/1 point (5A/COM)
	Inductive	-	12W (24VDC)			^#5
	Lamp	-	2W (24VDC)			20WDC/100WAC
Max. Output Response Time		0.2μs	0.2μs	Off → On: 20μs On → Off: 30μs		10ms
Over-Current Protection		N/A
#1. For DVP32EH00M3, the bandwidth of the differential output points Y0~Y3 is 200kHz, and the other output points are relay output points. For DVP32EH00MT, the bandwidth of the differential output points Y0~Y3 is 200kHz, and the other output points are transistor output points. #2. For DVP40/48/64/80EH3, the bandwidth of the output points Y0~Y3, Y4 and Y6 is 200kHz. For DVP16/20EH3, the bandwidth of the output points Y0 and Y2 is 200kHz. For DVP32EH3, the bandwidth of the output points Y0, Y2, Y4, and Y6 is 200kHz. #3. For DVP40/48/64/80EH3, the bandwidth of the output points Y5 and Y7 is 10kHz. For DVP16/20EH3, the bandwidth of the output points Y1 and Y3~Y7 is 10kHz. For DVP32EH3, the bandwidth of the output points Y1, Y3, Y5, and Y7 is 10kHz. #4. Y10 and above on EH3 are normal output points. #5. Life curves for relays

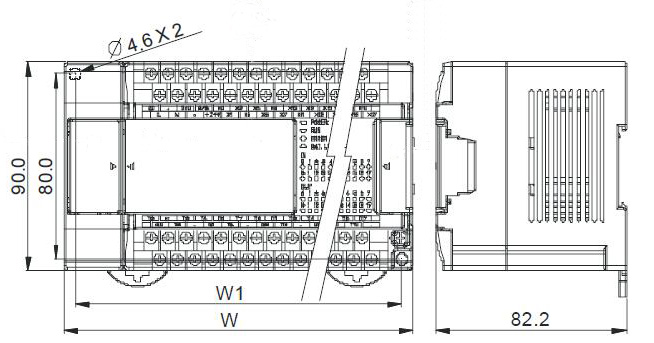

Dimensions (Unit: mm)

Model	16EH00R/T3	20EH00R/T3	32EH00R/T3	32EH00M3/MT	40EH00R/T3	48EH00R/T3	64EH00R/T3	80EH00R/T3
W	113	113	143.5	158.8	158.8	174	212	276
W1	103	103	133.5	153.8	153.8	164	202	266

DVP-EH3 Programmable Logic Controller (PLC) Features

1. High-performance Programmable Logic Controller (PLC) with large program capacity and data registers for more demanding and complex applications

Program capacity: 30 k steps
Data register: 12 k words
Execution speed: 4X

2. Excellent Motion Control

High-speed pulse output: 4 axes of 200kHz pulse output (DVP40/48/64/80EH00T3 ONLY)
Supports max. 4 hardware 200kHz high-speed counters
Various motion control instructions to achieve high-speed and high-precision positioning control for labeling machines, packaging machines, printing machines, etc.
Offers linear / arc interpolation motion control
Provides up to 16 external interrupt pointers

3. Complete Program Protection

Auto backup function to prevent programs and data loss even when the battery runs out
Secondary backup function saves an extra copy of programs and data to enhance program safety
Up to 4-level password protection to protect your source programs and intellectual property

4. Outstanding Operation Performance

32-bit CPU + ASIC dual processors support floating point operations
Max. execution speed of basic instructions up to 0.24μs

5. Flexible Function Extension Modules & Cards

Multiple selections of extension modules and function cards: analog I/O, temperature measurement, additional single-axis motion control, high-speed counting
The 3rd serial communication port and Ethernet communication card are available.

6. PLC-Link

PLC Link allows the user to link up a max. 32 units to the network without installing extra communication extension modules.
