Model	CHN-IBOX205Plus
Case Color	Black
Material	High quality all aluminum
CPU	Adopt Intel Core i5 4300U dual core 1.9 GHz
Chipset	Adopt Intel express chipset
RAM	Support 1*DDR3L 1333/1600 MHz, Max 8 GB
Storage	Support 1MSATA, 12.5 inch SSD/HDD (2*2.5 inch SSD/HDD optional)
Display Interface	1VGA, 1HD (Support synchronous and asynchronous dual display)
I/O	4USB2.0, 2USB3.0
	1*Power Switch
	6*COM (COM 3 support RS232/422/485 optional)
	2*Lan
	1*VGA
	1*HD
	1*DC 12V
	1*Mic
	1*Line Out
Expansion	1*MINI-PCIE (support MSATA)
	1*MINI-PCIE (WiFi/3G/4G optional)
Network	2*Intel i211-AT Lan
WDT	Support hardware reset (256 level, 0~255 sec)
Power Supply	DC 12V
Operating System	Win7/ win10/ Linux (Centos or Ubuntu) system
BIOS	64MB Flash ROM
Working Temperature	-10°C ~ 60°C
Working Humidity	0% - 95% relative humidity, non-condensing

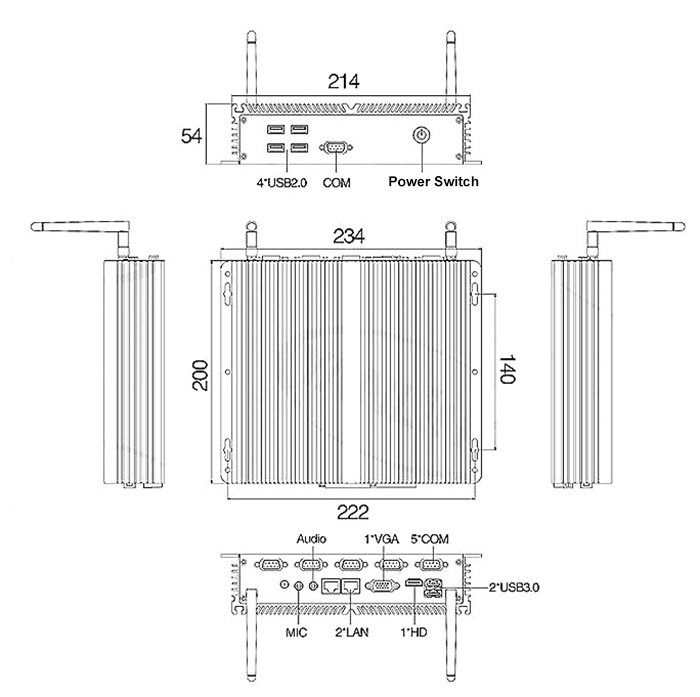

Size	21420054 mm
Weight	2.0 Kg
