Model	CHN-IBOX-605
CPU	Intel Core i3 8100T (quad core, 4 threads, 3.1 GHz)
	Intel Core i5 8500T (6 core, 6 threads, 2.1 GHz, Maximum Turbo 3.5 GHz)
	Intel Core i7 8700T (6 core, 12 threads, 2.4 GHz, Maximum Turbo 4.0 GHz)
Chip	Intel H310
Usable System	Linux, Windows 7, Windows 10
RAM	2*DDR4 2133/2400 SODIMM slot, Max 32GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 630
Display Port	1VGA, 1HDMI (Supports synchronous and asynchronous dual display)

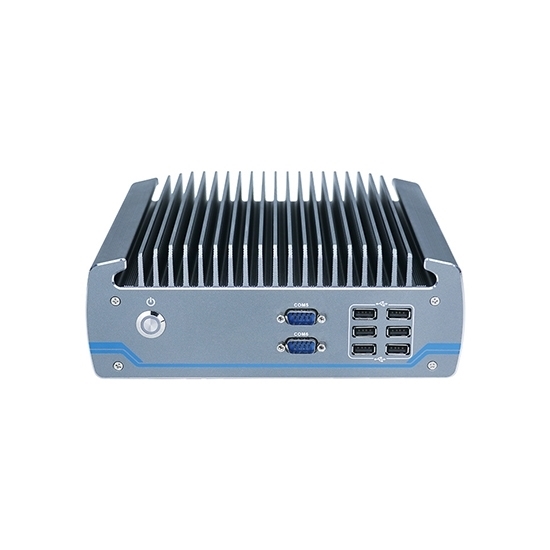

Front I/O Interface	6*USB 2.0
	2*COM
	1*Power Switch

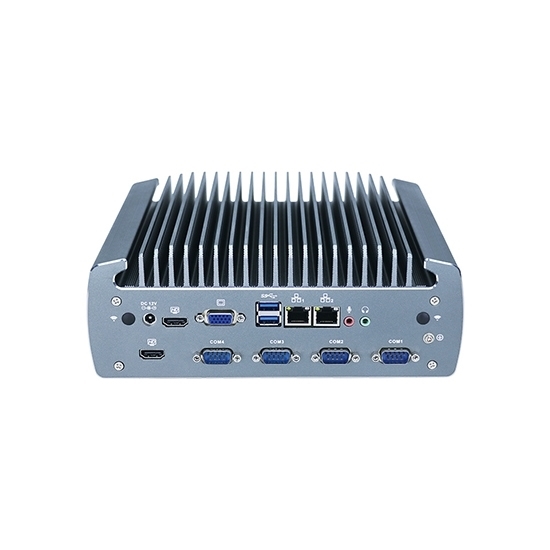

Rear I/O Interface	2*USB 3.0
	2*1000M LAN
	1*VGA
	2*HDMI
	1*Mic
	1*Line Out
	4COM (COM2RS232/RS422/485 Optional)
	1*DC
Expansion Port	GPIO (4 Input*4 Output)
Expansion Slot	1M.2 2280 slot (Compatible: PCIE and SATA signal) 1MINI PCIE slot (WIFI/Bluetooth optional, please contact us for configuration)
Network	2*RTL8111H 1000M LAN
Storage	1M.2 2280 slot, 12.5" HDD (2*2.5" HDD Optional)
Input Voltage	DC 12~19V Input (DC 9~36V wide voltage Optional)
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Titanium gray (other color can be customized)
Material	High-quality all aluminum, surface anodic oxidation

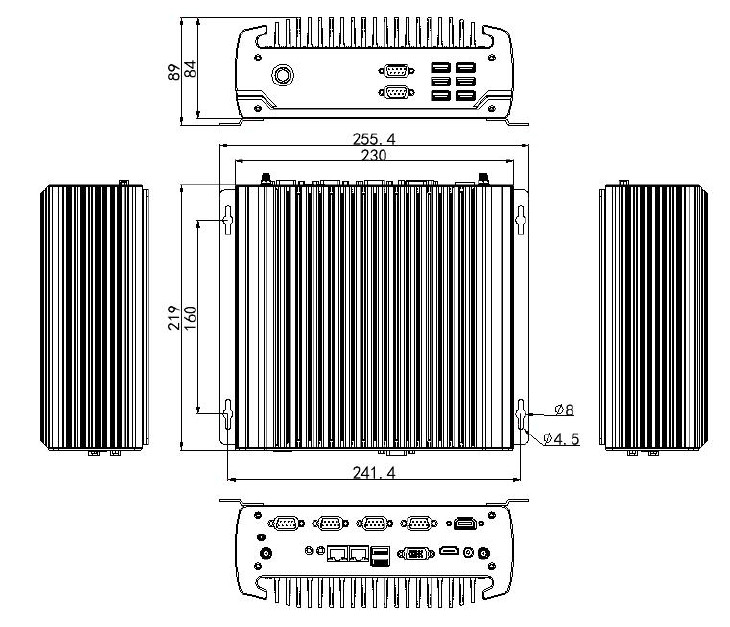

Dimension	230 * 219 * 84mm (Not include the brackets)
Net Weight	4.0 kg (Not include the brackets)

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A/ 12V, 12.5A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
Wall Bracket	2	Standard
Motherboard CD Driver	1	Neutral
