Home > Communication & Controller > Industrial PCs

Send Inquiry

Embedded Fanless Industrial PC, Celeron 3865U, Linux/Win 7

$905.23

Professional manufacturer industrial PC, fanless design, embedded mounting. CPU Intel Celeron 3865U/ Core i5 7200U/ Core i7 7

SKU: CHN-IPC-3865LW

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Competitive price fanless industrial PC for sale. Optional CPU Intel Celeron 3865U/ Core i5 7200U/ Core i7 7500U, applicable system Linux/Windows 7/Windows 10, interface Intel 1000M LAN*2, COM*4. Industrial grade computer supports desktop, embedded and wall mounting, suitable for industrial automation, medical, logistics transportation, warehouse, electronic education, machine and other uses.

Specification

Model	CHN-IBOX-704 Plus
CPU	Intel Celeron 3865U (Dual core dual threads, 2MB third level cache, 1.8 GHz)
	Intel Core i5 7200U (Dual core quad threads, 3MB third level cache, 2.5GHz, Max turbo 3.1GHz)
	Intel Core i7 7500U (Dual core quad threads, 4MB third level cache, 2.7GHz, Max turbo 3.5GHz)
CPU Structure	Skylake-U/ KabyLake-U
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR4 1866/2133 SODIMM RAM Slot, Max. 16GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 610/620
Display Port	1VGA, 1HDMI Built-in Pin (Support synchronous and asynchronous dual display)

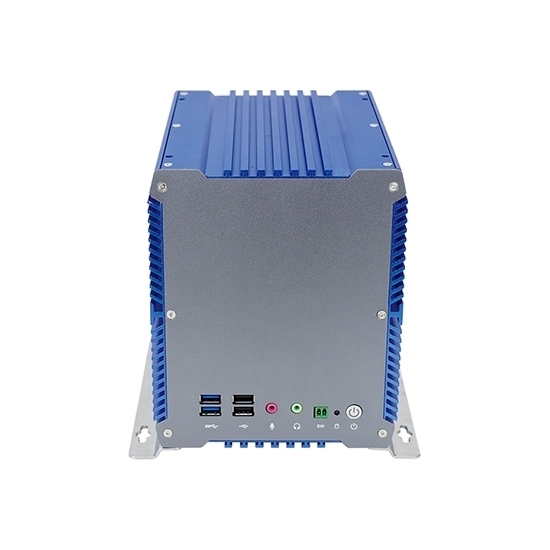

Front I/O Interface	2*USB 3.0
	2*USB 2.0
	1*Indicator light
	1*Power Switch
	1*MIC
	1*Speaker
	1*Phoenix Connector (can expand out the switch signal)

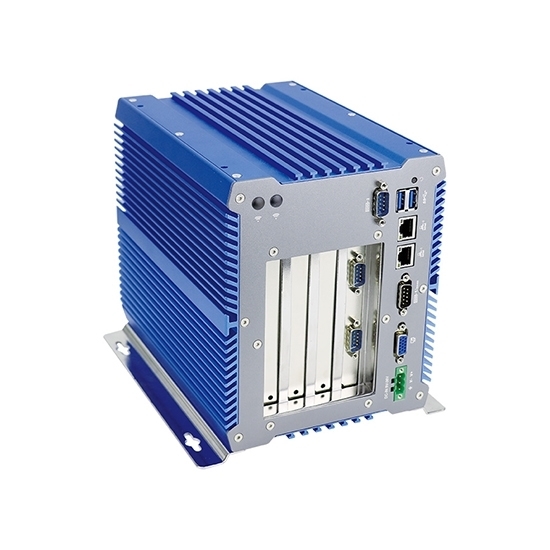

Rear I/O Interface	2*USB 3.0
	2*Intel 1000M LAN
	1*VGA
	1*3Pin Power Supply Phoenix Connector
	1*Clean COMS button
	Standard 4COM (Max. 6COM, COM1 and COM2 have RS232/422/485 Optional)
Expansion Port	1MINI PCIE Slot (WIFI/3G/4G Optional, please contact us for configuration), Embedded SIM Slot 1MINI PCIE Slot (Support MSATA) Optional Ports: GPIO, Audio, HDMI, 2*COM (Standard version doesn't include these ports)
Expansion Slot (Choose 1 from 3)	1PCIE X4 + 1PCI (32bit), Built-in 1*USB 2.0 (support the length of expansion card: 196mm)
Network	2*Intel i211-AT 10/100/1000M LAN
Storage	1MSATA slot, Onboard 12.5" HDD
Input Voltage	DC 9V～36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Blue + Grey (Any color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	215 * 185 * 157mm (Not include the brackets)
Net Weight	4.0 kg (Not include the brackets)

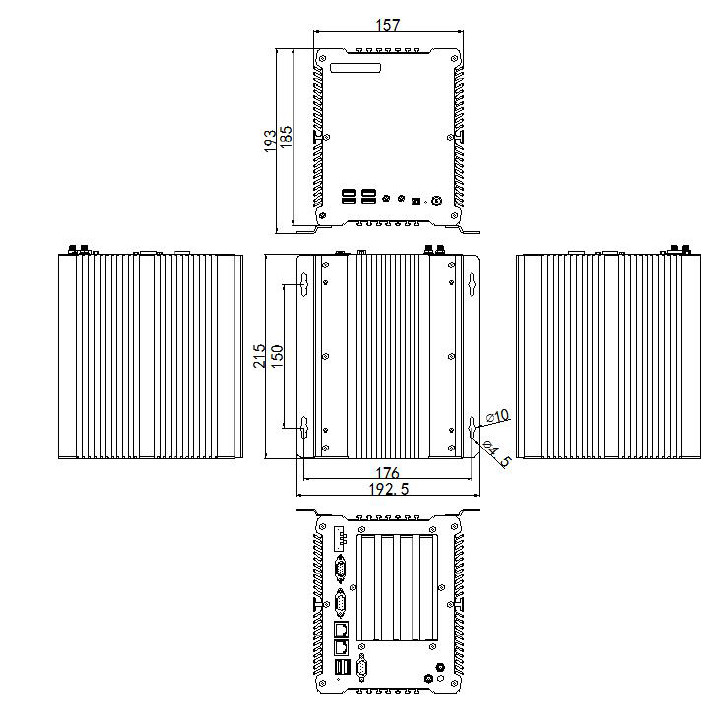

Embedded Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A/ 12V, 10A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
Bracket	2	Standard
Motherboard CD	1	Neutral

Tips: Performance features of embedded industrial PC.

Embedded industrial PC is a compact industrial PC designed specifically for industrial sites, and it is a ruggedized and enhanced industrial PC. Embedded industrial PC can be used as an industrial controller to operate reliably in a small industrial environment. It is mostly used in fields that require high reliability and stability, such as banking, industrial smart devices, and so on.

Stable and reliable
Embedded industrial PC is airtight, low power consumption, fanless and other features that traditional industrial PCs do not have. Embedded industrial PC is also equipped with a highly reliable industrial power supply with overvoltage and overcurrent protection. Embedded industrial PC has a watchdog timer. When the malfunction causes crashing, the machine can be automatically reset without manual operation, which can carry out long-term and low-redundancy work.
Small and compact
Embedded industrial PC occupies a small space, simple and flexible installation and maintenance, convenient operation, and can be used with almost any terminal, equipment or control cabinet.
Active heat dissipation
Embedded industrial PC adopts fanless design and all-metal and aluminum alloy casing, which reduces the damage caused by impact, increases the heat dissipation area, and realizes active heat dissipation.
