Home > Communication & Controller > Industrial PCs

Send Inquiry

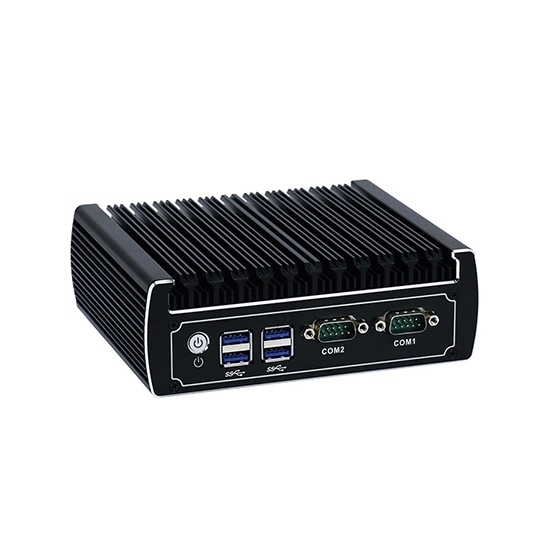

Mini Fanless Industrial PC, Core i3 i5, Linux/Win 7/Win 10

$576.31

Mini industrial PC has fanless design, good price. Optional CPU Intel Core i3 7100U/ i5 7200U dual core quad threading, suppo

SKU: CHN-IPC-i35

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Fanless industrial PC has mini size, embedded installation. Optional CPU Intel Core i3 7100U or i5 7200U dual core quad threading, usable system Linux/Windows 7/Windows 10. Low price industrial computer from professional manufacturer, used in industrial automation, medical, logistics transportation, warehouse, electronic education, etc.

Specification

Model	CHN-N13 L2
CPU	Intel Core i3 7100U (dual core quad threading, 2.4GHz)
CPU	Intel Core i5 7200U (dual core quad threading, 2.5GHz, max turbo 3.1GHz)
CPU Architecture	KabyLake-U
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR4 1866/2133 MHz SODIMM RAM Slot, max. 16GB
Display Chip	Integrated Intel HD Graphics 620
Display Port	1HDMI, 1DP

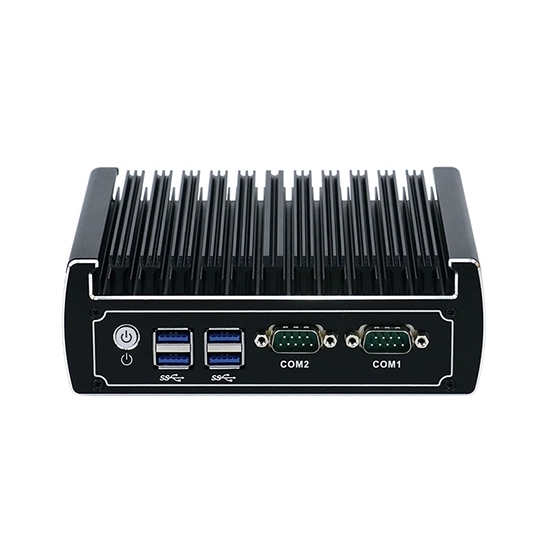

Front I/O Interface	4*USB 3.0
	1*Power Switch
	2*COM

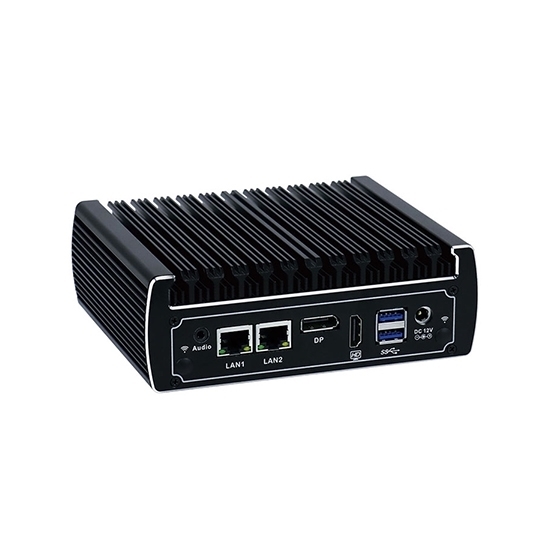

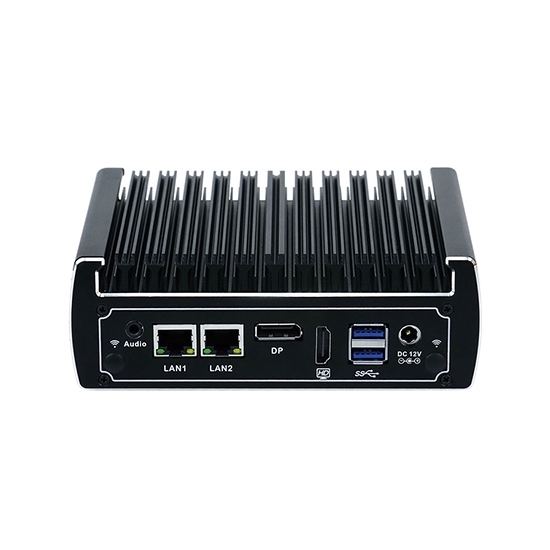

Rear I/O Interface	2*RJ45 LAN
	2*USB 2.0
	1*HDMI
	1*DP
	1*Audio (supports Mic and Speaker at the same time)
	1*DC 12V input
Expansion Slot	1M.2 2280 Slot (Compatible with PCIE X4 and SATA signal) 1MINI PCIE Slot (WIFI/3G/4G optional, please contact us for configuration), embedded SIM slot on the back
Network	2*RTL8111E 10/100/1000M LAN
Storage	1M.2 2280 slot, 12.5" HDD
Input Voltage	DC 12V
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +50℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Black (Color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	155 * 126.5 * 52.5mm
Net Weight	1.6 kg

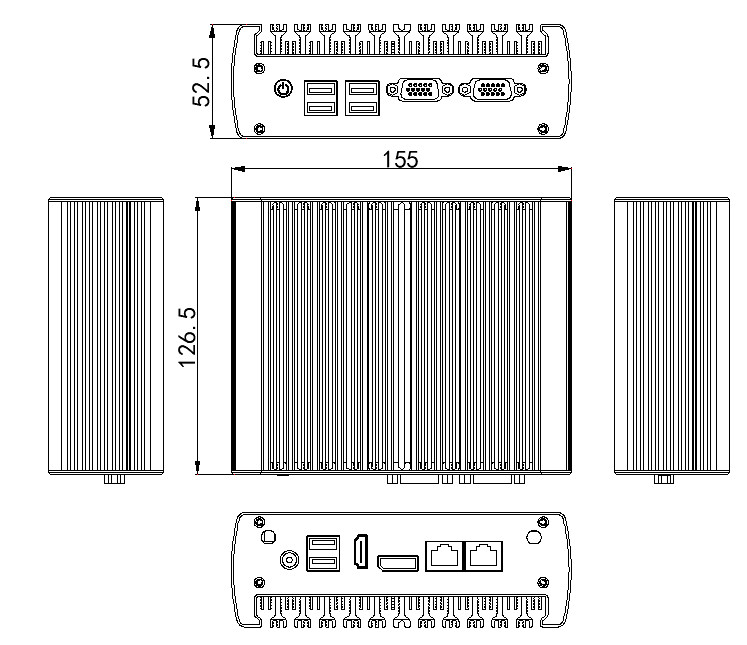

Mini Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
VESA Bracket	1	Standard

Tips: How to solve the noise of fanless industrial PC?

Reduce the noise of fanless industrial PC radiators

Mute radiator. The principle of silent radiator is to increase the fan speed, speed up the air flow, increase the fan diameter, widen the air duct, increase the air area of radiator. Alternatively, the fan shape of radiator can be optimized, and drainage design can be used to avoid the flowing of surrounding airflow instead of forcing the air to flow.
Make radiator and bottom to be integrated. Through various accessories of fanless industrial PC, the external cold air is sucked in by the radiator in front of bottom and the radiators on both sides of bottom. Part of the hot air passing through the CPU is exhausted from the radiator behind the bottom, and the other part of the hot air is exhausted through power radiator. This design can increase the air volume of radiator, increase the speed, effectively dissipate heat, reduce the noise, and extend the service life of fanless industrial PC.

Speed control

The main goal of a radiator fan is to meet the heat dissipation requirements of a high-load CPU. However, in actual use, fanless industrial PCs mostly use mid-, low-load and mid-end mainstream processors, and do not need to use a large speed to provide a large air volume. Therefore, the noise of fanless industrial PC radiator can be reduced by controlling the speed.
