Industrial PC Features

• Intel Celeron J1900 quad core 2.0GHz CPU and Intel chipeset
• High quality pure aluminum with fanless and embedded design
• 64MB SMT Flash ROM, support wake on lan
• DC-IN 12V/12.5A power adapter
• Support Win7/ win10/ Linux (Centos or Ubuntu) system
• 1*USB3.0+3*USB2.0+1*VGA+1*HD+1*RTL8111E 1000 Lan+1*3Pin Phoenix terminal

Specification

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

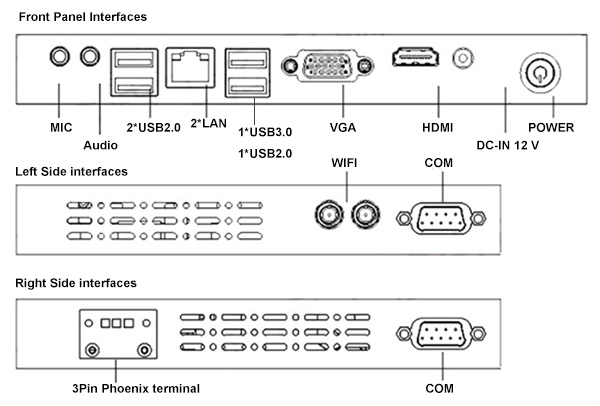

Industrial PC Rich Interfaces

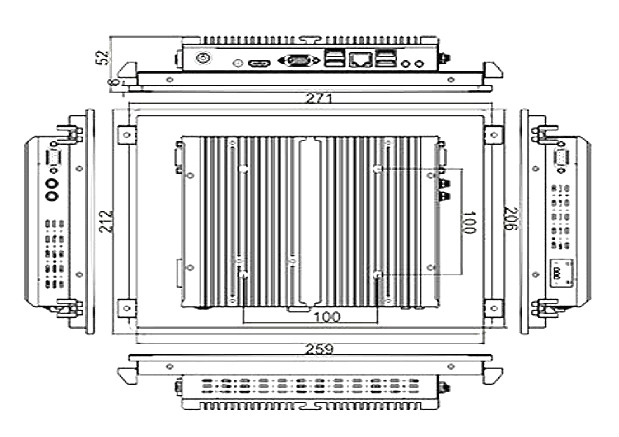

Dimension
Tips: Electromagnetic shielding of small industrial PC chassis
When the host computer is working, the motherboard, CPU, memory and various board cards all generate a large amount of electromagnetic radiation. If they are not protected, they will cause some damage to the human body. At this time, the chassis becomes an important part of shielding electromagnetic radiation and protecting health. Defenders and well-shielded chassis can also effectively block external radiated interference and ensure that internal computer components are not affected by external radiation. In order to increase the cooling effect of small industrial PC chassis, the necessary parts of the chassis will be perforated, including the side holes of the chassis, pumping air fan inlet holes, exhaust fan outlet holes, etc., so the hole shape must meet the technical requirements that can block radiation. The openings in the chassis should be as small as possible, and as far as possible, round holes with strong radiation blocking ability must be used.
