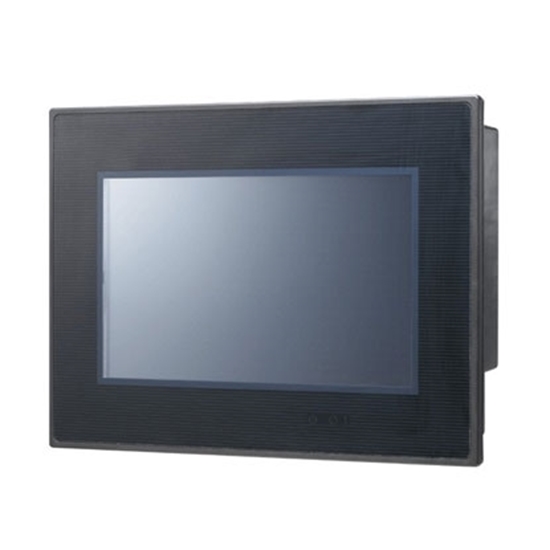

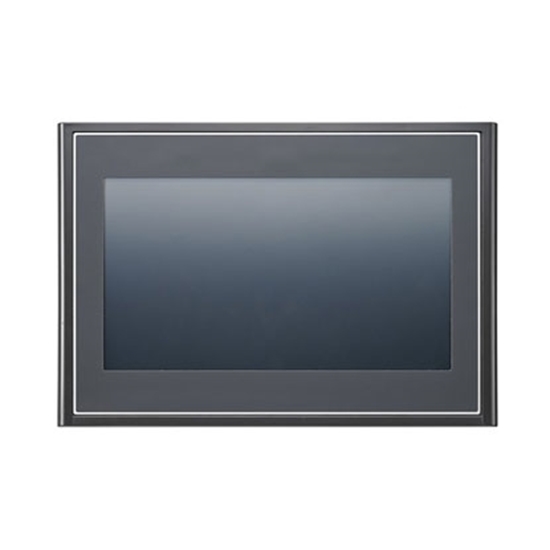

HMI toch sreen manufacturer direct sales, industrial HMI touch panel with 10 inch TFT LCD display, 1024 x 600 pixels, equipped with HMI programming software DOPSoft 4.0 and built-in Lua editor, it can be easily programmed, and has alarm / history / user rights functions for efficient management.

Specification:

Features

1. ATO HMI Embedded Linux System Open system for flexible and stable program development.
2. New software DOPSoft 4.0 offers more complete functions and a better interface.
3. Compliant with industrial operation environments, CE / UL Certified Compliant with CE and UL standards.
4. Ethernet Communication Connects to master device, or PLC with high-speed Ethernet communication.
5. Communication Isolation COM and Ethernet ports with built-in isolation circuits enhance communication stability. FTP/eMail Supported Simple data transmission    and real-time status report.
6. Easy setting to play vivid GIF elements.
7. Simple and easy structural programming language to meet various demands.
8. Pressing times >10,000,000 Effective pressing times increased through strict endurance tests.
9. IP65 Rating, the front case protects the HMI from snow, rain, and dust.
10. Diagnostics Function Collects and solves issues remotely, power Isolation, protects the HMI from accidental surge interference.
11. VNC Remote Monitoring Remote control with mobile devices, supports PDF and TXT Reader, PDF and TXT files supported, User-Friendly, intuitive operation interfaces for users.

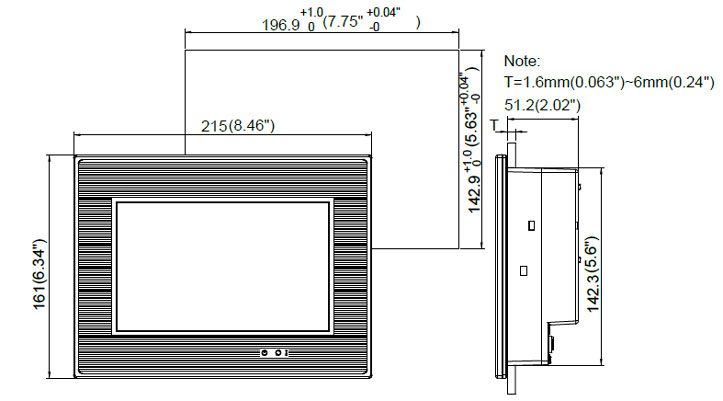

CHN-DOP-107CV Dimension (Unit: mm)

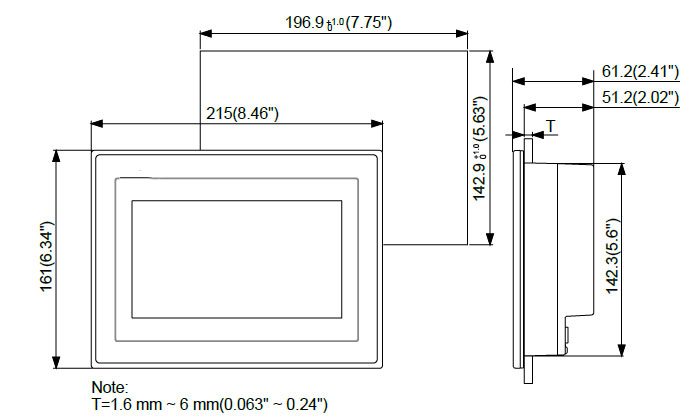

CHN-DOP-B07S415 Dimension (Unit: mm)

Tips: Human Machine Interface Troubleshooting

•  The HMI human machine interface is not responding, and no part is responded to when pressed.
  Solution: In this case, first check whether each wiring interface is loose, and then check whether the serial port and interrupt number conflict. If it is caused by the conflict, then the resources should be adjusted to avoid conflict.
  Secondly, check whether there are cracks on the surface of the man-machine interface. If cracks are found, they should be replaced in time. In addition, it is also necessary to check whether there is dust on the surface of the man-machine interface, and if so, remove it with a soft cloth. Observe and check whether the indicator light on the control box is working properly. When it is normal, the indicator light is green and blinking.
  If the above parts are normal, you can use the replacement method to check the man-machine interface, first replace the control box, then replace the touch screen, and finally replace the host.

• The human machine interface is normal but the computer cannot operate. A human-machine interface, after testing, everything is normal, but after connecting the host, the computer can not operate.
  Solution: There are two reasons for this situation. First, it may be that the display unit driver version is too low and you need to install the latest driver. Second, it may be that the HMI control card receives the operation signal before the host starts loading the HMI driver, and only needs to restart the computer after the power is turned off.

• Inaccurate touch.
  Solution: There are two reasons for this phenomenon. The first possibility is that the reflection stripes of the sonic screen are slightly damaged, and it cannot be completely repaired in this case; the second possibility is that the reflection stripes around the screen are covered with dust after using the sonic man-machine interface for a period of time , You can wipe with a soft dry cloth, then power off, restart the computer and recalibrate.
