Home > Communication & Controller > HMI (Human Machine Interface)

Send Inquiry

HMI Touch Screen, 4.3 Inch, 480 x 272

$369.86

Industrial HMI touch panel 4.3 inch TFT LCD display, 65536 colors, Human Machine Interface can be connected with various indu

SKU: CHN-HMI-43

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

HMI touch screen price low, 4.3" TFT 65536 colors display, back light life up to 20,000 hours, HMI supports GIF graphic Elements, easy setting to play vivid GIF elements.

Specification:

Model		CHN-DOP-B03S211
LCD Module	Display	4.3" TFT LCD
	Resolution	480 x 272 Pixels
	Back Light	LED Back Light
	Back Light Brightness	280 cd/m²
	Back Light Life	20000 Hours
	Display Colors	65536 Colors
MCU		400 MHz
Flash ROM		128 MB
RAM		64 MB
Backup Memory (Bytes)		16 MB
Audio Output		Multi-Tone Frequency (2K ~ 4K Hz) / 80dB
AUX		N/A
Ethernet		N/A
Memory Card		N/A
USB		1 USB Host Ver 1.1 / 1 USB Client Ver 2.0
Serial COM Port	COM1	RS-232 (supports hardware flow control)
	COM2	RS-422 / RS-485
	COM3	N/A
VGA Input		N/A
Delta Professional Integration Function		N/A
Function Key		N/A
Perpetual Calendar RTC		Built-in
Cooling		Natural air circulation
Certification		CE, UL
Waterproof		IP65 / NEMA4 / UL Type 4X (indoor use only)
Operation Voltage^*3		DC +24V (-15% ~ 15%)^*2
Voltage Endurance		A500V for 1 minute (between charging DC24 terminal and FG terminals)
Power Consumption^*5		2.64 W
Backup Battery		3V lithium battery CR2032 x 1
Backup Battery Life		Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25° C
Operating Temperature		0℃ ~ 50℃
Storage Temperature		-20℃ ~ 60℃
Ambient Humidity		10% ~ 90% RH (0 ~ 40° C), 10% ~ 55% RH (41 ~ 50° C), Pollution Degree 2
Vibration		IEC 61131-2 compliant 5Hz ~ 8.3Hz = Continuous: 3.5mm, 8.3Hz ~ 150Hz = Continuous: 1.0g
Shock		IEC 60068-2-27 compliant 15g peak for 11ms duration, X, Y, Z, directions for 6 times
Dimensions (W) x (H) x (D)		129 x 103 x 39mm
Mounting dimension W) x (H)		118.8 x 92.8mm
Weight		230g

Features

1. ATO HMI Embedded Linux System Open system for flexible and stable program development.
2. New software DOPSoft 4.0 offers more complete functions and a better interface.
3. Compliant with industrial operation environments, CE / UL Certified Compliant with CE and UL standards.
4. Ethernet Communication Connects to master device, or PLC with high-speed Ethernet communication.
5. Communication Isolation COM and Ethernet ports with built-in isolation circuits enhance communication stability. FTP/eMail Supported Simple data transmission and real-time status report.
6. Easy setting to play vivid GIF elements.
7. Simple and easy structural programming language to meet various demands.
8. Pressing times >10,000,000 Effective pressing times increased through strict endurance tests.
9. IP65 Rating, the front case protects the HMI from snow, rain, and dust.
10. Diagnostics Function Collects and solves issues remotely, power Isolation, protects the HMI from accidental surge interference.
11. VNC Remote Monitoring Remote control with mobile devices, supports PDF and TXT Reader, PDF and TXT files supported, User-Friendly, intuitive operation interfaces for users.

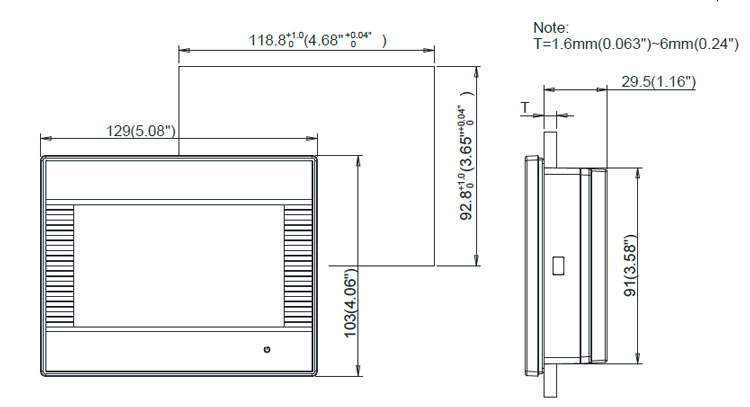

CHN-DOP-B03S211 Dimension (Unit: mm)

Communication between HMI and PLC
When the HMI is used in a PLC control system, the HMI and PLC communicate via a serial link in a Direct Link (direct connection) mode. In this mode, the HMI directly reads the data of the PLC or writes the data to the corresponding address of the PLC according to the requirements. Because of the built-in communication protocol, there is no need to compile a communication program. As long as the PLC type used is specified as the communication protocol, communication can be achieved during operation. Therefore, the burden on the PLC user program is greatly reduced. Directly read or rewrite the content of the corresponding address of the PLC, and change the content displayed on the screen accordingly. At the same time, by touching the HMI, you can input data to the corresponding address of the PLC.
