Model	CHN-SC-GLM3545
Length	45mm
Width	35mm
Bore	6mm to 14mm
Rated Torque	5 N.m
Allow Eccentricity	0.17mm
Allowable Deflection Angle	1.5∠°
Allowable Axial Deviation	±0.36
Allowable Speed	10000 RPM
Static Torsional Stiffness	2850N.m/rad
Moment of Inertia	9.0 x 10^-6
Weight	83g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

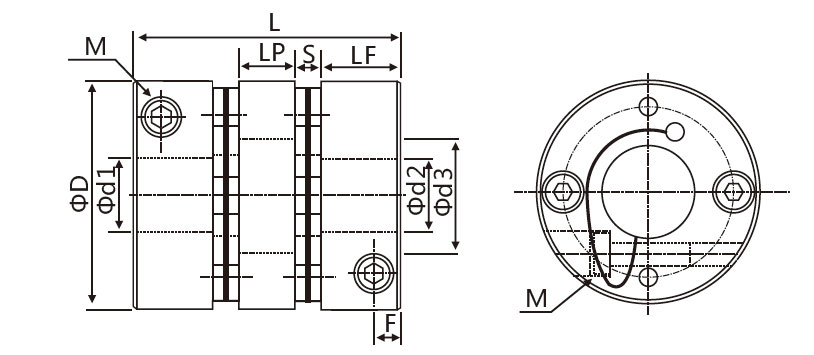

d1/d2 Inner Diameter Size	Φd	L	LF	LP	S	φd3	F	M	Tightening Torque
8-9-9.525-10-11-12-12.7-14	34	45	14.25	9.5	3.5	15	5.0	M4	3.5 N.m
