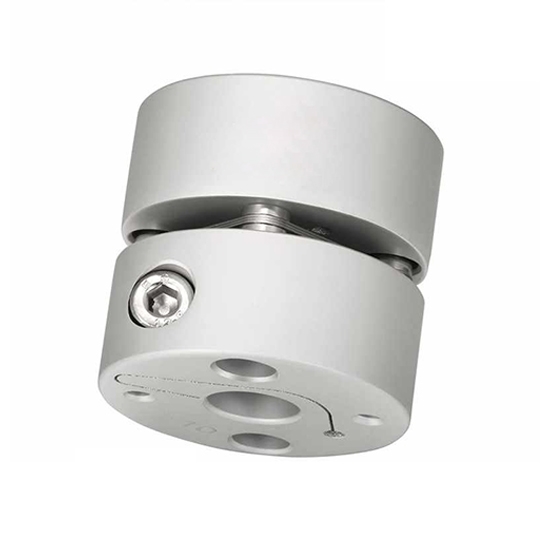

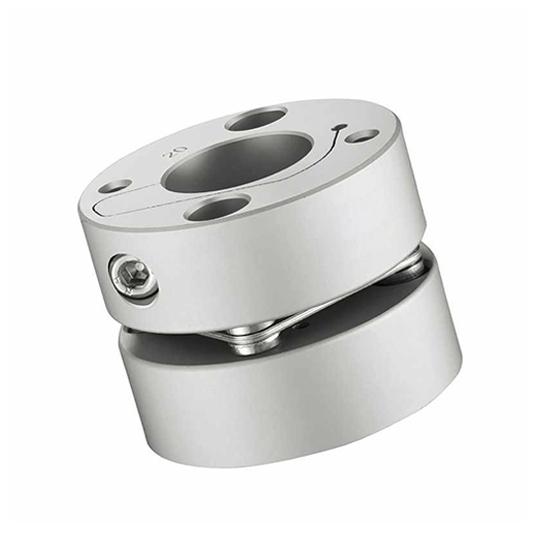

Model	CHN-SC-GSM39345
Length	34.5mm
Width	39mm
Bore	8mm to 16mm
Rated Torque	10 N.m
Allow Eccentricity	0.1mm
Allowable Deflection Angle	1∠°
Allowable Axial Deviation	±0.23
Allowable Speed	10000 RPM
Static Torsional Stiffness	8100N.m/rad
Moment of Inertia	2.2 x 10^-5
Weight	88g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

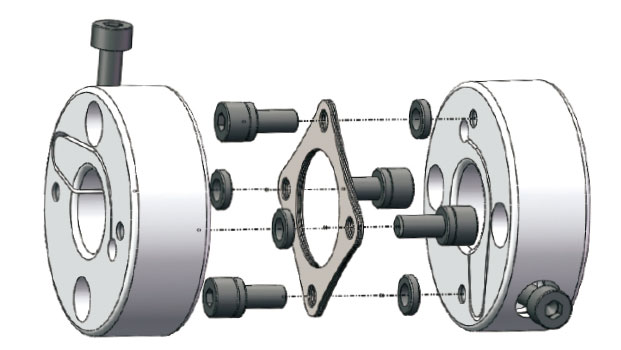

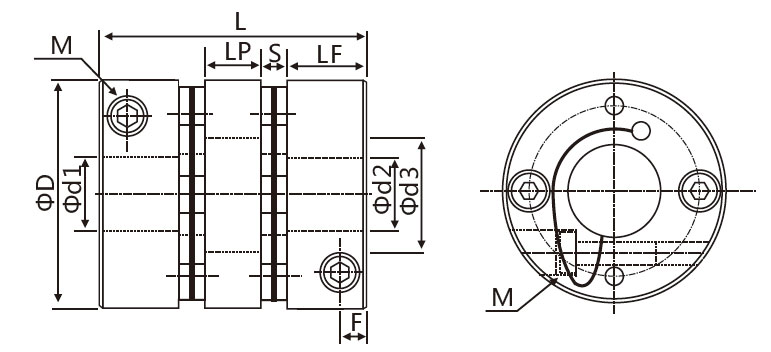

d1/d2 Inner Diameter Size	Φd	L	LF	S	F	M	Tightening Torque
8-9-9.525-10-11-12-12.7-14-15-16	39	34.5	14.9	4.5	5	M4	3.5 N.m
