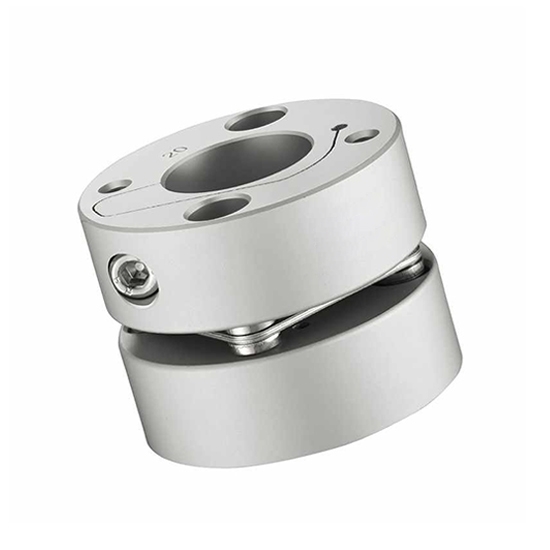

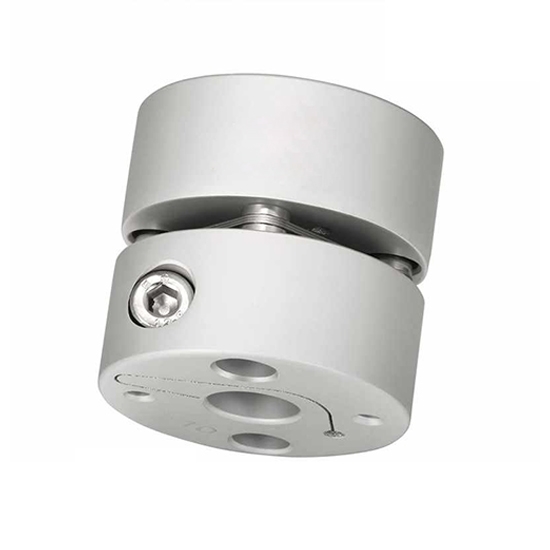

One Diaphragm Coupling, 6mm to 14mm

High torque flexible shaft coupling bore 6mm to 14mm, rated torque 5N.m, speed of 10000rpm, length 32mm, diameter 34mm, shaft coupling has elastic elements that play the role of buffering and damping to protect the prime mover and the working machine from damage or damage.

Specification

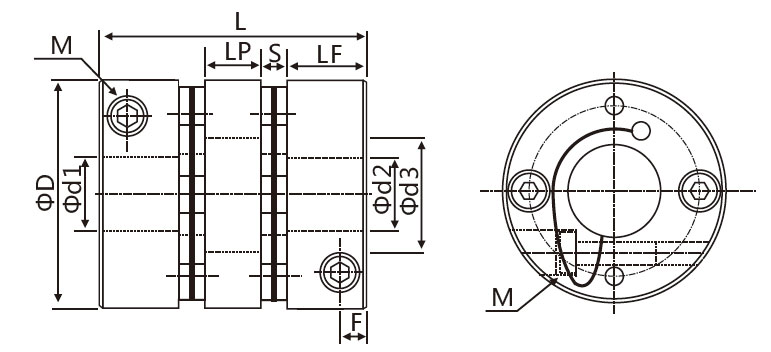

Single Diaphragm Coupling 6 to 14mm Dimension (unit: mm)

Tips for choosing a shaft coupling type

1. The size and nature of the torque to be transmitted, the requirements for buffering and damping functions, and whether resonance may occur.
2. The relative displacement of the axis of the two shafts caused by manufacturing and assembly errors, shaft load and thermal expansion deformation, and relative movement between components.
3. The allowable dimensions and installation methods are the operating space necessary for ease of assembly, adjustment and maintenance. For large shaft couplings, it should be possible to disassemble and assemble without the need for axial movement of the shaft.
