Model	CHN-SC-GSM1920
Length	20mm
Width	19mm
Bore	8mm to 16mm
Rated Torque	1 N.m
Allow Eccentricity	0.1mm
Allowable Deflection Angle	1∠°
Allowable Axial Deviation	±0.09
Allowable Speed	10000 RPM
Static Torsional Stiffness	1400N.m/rad
Moment of Inertia	6.7 x 10^-7
Weight	12g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

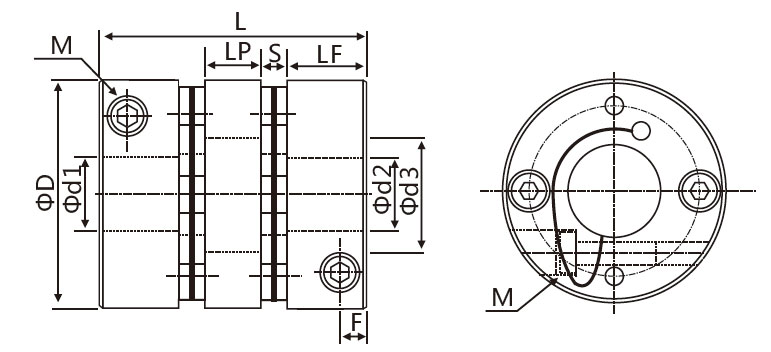

d1/d2 Inner Diameter Size	Φd	L	LF	S	F	M	Tightening Torque
3-4-5-6-6.35-7-8	19	20	9.1	1.8	3.3	M2.5	1 N.m
