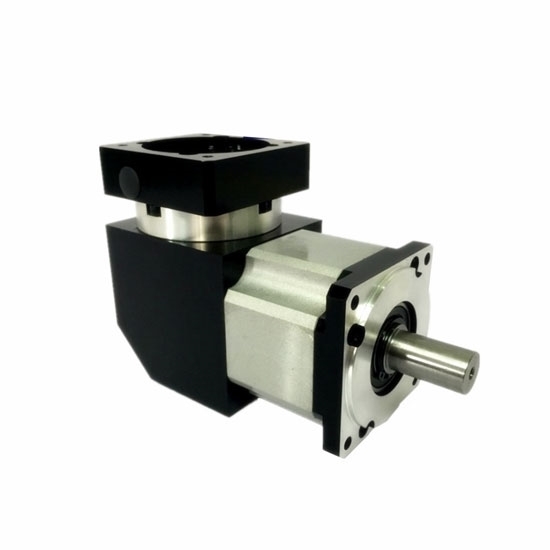

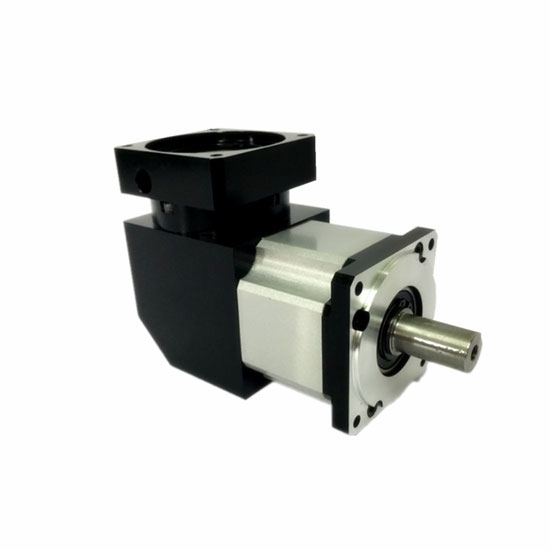

Right Angle Planetary Speed Reducer Gearbox

$645.23

Right-angle planetary speed reducer or gearbox has various gear ratios which can be chosen from 3:1 to 200:1, available for

SKU: CHN-PSR-ZBR

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Right-angle planetary speed reducer or gearbox has 18 options of ratios ranging from 3:1 to 200:1 at 1, 2 or 3 stage, with high transmission efficiency, tha maximun up to 97%; it is square flange design, simple mounting and can be matched with servo motor, stepper motor and so on.

Specification

Model		Stage	Ratio	CHN-ZBR
Frame Size(mm)		1,2,3	3~200	65*65	85*85	118*118	150*150
Weight(kg)		1	3~10	2.2	5.3	13.9	25.5
		2	9~50	2.5	6.1	16.5	30.5
		3	60~200	2.9	6.7	19.3	35.5
Mounting Position		1,2,3	3~200	Can be mounted in any orientation
Operating Temperature		1,2,3	3~200	-10℃~+90℃
Nominal Input Speed(rpm)		1,2,3	3~200	4500	4000	3000	3000
Max. Input Speed(rpm)		1,2,3	3~200	6000	6000	5000	4000
Backlash(arcmin)	Standard	1	3~10	≤13	≤15	≤15	≤15
	Precision	1	3~10	≤10	≤12	≤12	≤12
	Standard	2	9~50	≤15	≤18	≤18	≤18
	Precision	2	9~50	≤13	≤15	≤15	≤15
	Standard	3	60~200	≤18	≤21	≤21	≤21
	Precision	3	60~200	≤15	≤18	≤18	≤18
Noise Level(dB)		1,2,3	3~200	62	65	65	65
Torsional Stiffness(Nm/arcmin)		1,2,3	3~200	1.8	4.4	9.2	26.7
Max.Radial Load(N)		1,2,3	3~200	265	440	1240	3700
Max.Axial Load(N)		1,2,3	3~200	200	400	1000	3000
Efficiency		1	3~10	97%
		2	9~50	94%
		3	60~200	91%
Service life(hrs)		1,2,3	3~200	20,000
Lubrication		1,2,3	3~200	Synthetic lubricating grease
Protection Class		1,2,3	3~200	IP65
Nominal Output Torque(Nm)		1	3	20	50	140	310
			4	35	90	240	605
			5	32	70	240	605
			10	15	20	90	250
		2	9	25	50	140	340
			12	25	50	140	340
			15	25	50	140	340
			20	40	100	260	680
			25	35	80	260	680
			40	35	80	260	680
			50	35	90	260	680
		3	60	35	60	260	450
			80	44	110	260	680
			100	44	110	260	680
			120	25	60	260	450
			125	30	90	260	680
			160	44	110	260	680
			200	40	90	260	680

Tips: Planetary speed reducer structure and characteristics
The main transmission structure of the planetary speed reducer is planet gears, sun gear and ring gear. Because of its own structure, the gear ratio of planetary speed reducer is at least 3:1 at the single stage and generally no higher than 10:1. The grade of the reducer is also no more than the 3-stage generally, but some can customize the 4-stage reducer with large ratio. Compared with other reducers, the planetary speed reducers have the characteristics of high stiffness, high precision (within 1 arcmin at single stage), high transmission efficiency (97%-98% at single stage), high torque/size proportion, free maintenance for life long and so on. Due to these characteristics, the planetary speed reducers are mostly installed on the stepper motors and servo motors to reduce the rotational speed, increase the torque and match the inertia. The rated input speed of the planetary speed reducer can reach a maximum of 18000rpm, which is related to the size of the reducer itself, that is a bigger size of reducer brings a lower rated input speed). The operating temperature is usually about -25℃ to 100℃ and its working temperature can be changed through altering the lubrication grease.
