Magnatic powder clutch can choose rated torque 6Nm, 15Nm, 50Nm, 100Nm and 200Nm, 1800rpm rated speed, it can be used to paper making machines, cookie making machines and chemistry machines, superior quality and manufacturers direct sales.

Magnetic Powder Clutch Features
1. The excitation current is linear with the torque. The transmitted torque is substantially linear with the excitation current. As long as the magnitude of the stimulation current is changed, the magnitude of the torque can be controlled over a wide range. In general, the stimulus current is substantially proportional to the transmitted torque in the range of 5%-100% of the rated torque.
2. Stable slip torque. When the stimulation current remains unchanged, the transmitted torque is not affected by the difference in rotational speed between the active and the driven, that is, there is no difference between the static friction torque and the dynamic friction torque, so that the torque can be stably achieved. This feature is applied to the tension control, and the user can accurately control the torque by adjusting the stimulation current, thereby effectively controlling the tension of the roll.
3. Prevent heat generation due to slip. Generally, the friction part is inevitably heated or even burned when continuously sliding. However, the ATO magnetic powder clutch has a complete heat sink, which will not be too hot for a long time and has a long service life.

6Nm-200Nm Magnetic Powder Clutch Specification:

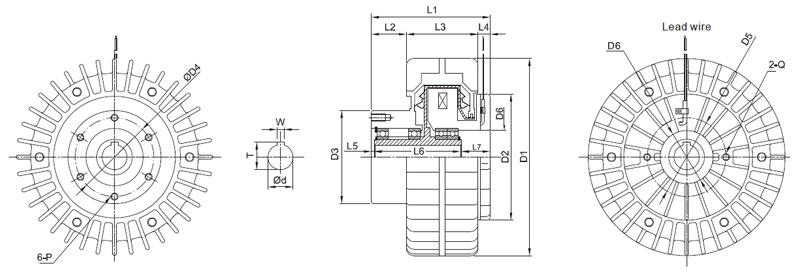

Magnetic Particle Clutch Dimension (unit: mm)

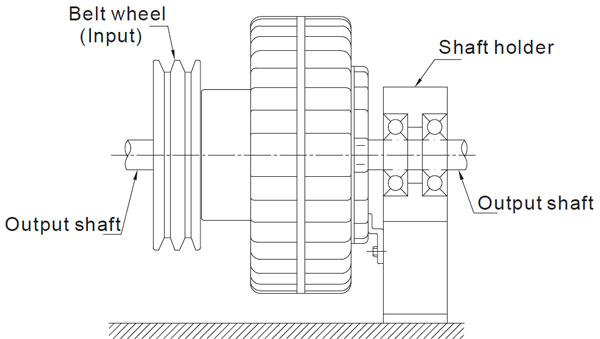

DC 24V Magnetic Powder Clutch Installation

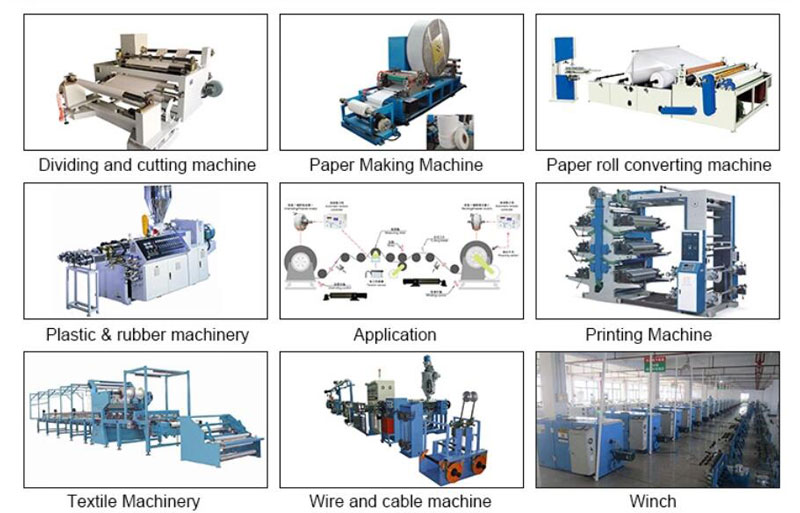

Magnetic Powder Cluch Application

Tips: How to choose Magnetic Particle Clutches and Brakes?
1. Consider whether the torque can meet the requirements of tension control system.
2. The heat generated during operation should not exceed the allowable continuous slip power of the model used.
3. Select the type according to the comprehensive mechanical support, determine how much torque is required to meet the load requirements, as well as whether the installation mode and space meet the requirements.
4. You can also contact us, we will recommend the most suitable model for you.
