50~5000 mbar 3/8 inch Proportional Pressure Regulator

Close
Shopping Categories
Search

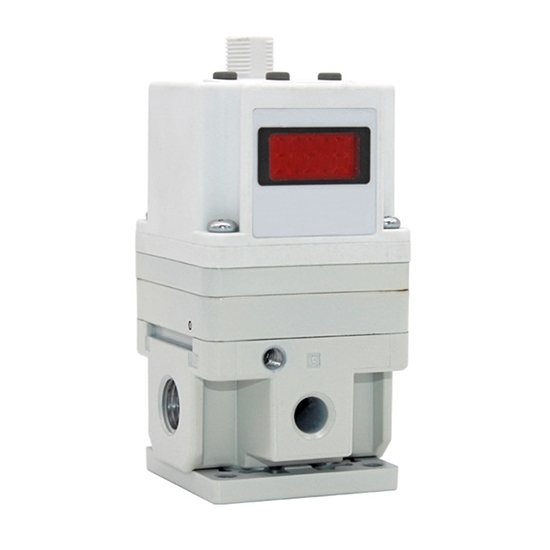

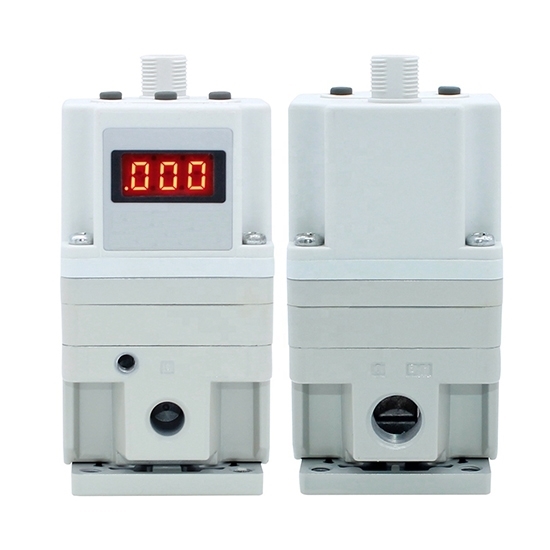

50~5000 mbar 3/8 inch Proportional Pressure Regulator


$354.15
Low cost proportional pressure regulator. Pressure range 50~5000 mbar (72.5 psi), max flow 1500L/min, rated voltage DC 24V, i
SKU: CHN-PPPR-5038
Free Shipping Worldwide
Delivery date: 6-12 days

Buy proportional pressure regulator at good price. Pressure range of 50~5000 mbar (72.5 psi), power supply DC 24V, input signal current/voltage, output analog/switch, connection port 3/8”. The electronic proportional regulator is a digital air pressure valve, which can be used in pneumatic system, no need to use multiple pressure reducer valves or hydraulic valves.

Specification

ModelCHN-NITV203
Minimum supply pressureSet pressure + 1000 mbar
Maximum supply pressure10000 mbar
Set pressure range50~5000 mbar
Max. Flow1500L/min
Power supplyVoltageDC 24V ± 10%, DC 12~15V
Current consumptionPower supply voltage DC 24V type: 0.12 A or less
Power supply voltage DC 12~15V type: 0.18 A or less
Input signalCurrent type *Note 1DC 4~20mA, DC 0~20mA (Sink type)
Voltage typeDC 0~5V, DC 0~10V
Preset input4 points (Negative common), 16 points (No common polarity)
Input impedanceCurrent type250 Ω or less *Note 4
Voltage typeApprox. 6.5 kΩ
Digital inputPower supply voltage DC 24V type: Approx. 4.7 kΩ.
Power supply voltage DC 12V type: Approx. 2.0 kΩ
Output signal (monitor output) *Note 2Analog outputDC 1~5V (Output impedance: Approx. 1 kΩ)
DC 4~20mA (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less
Switch outputNPN open collector output: Max. 30V, 80mA PNP open collector output: Max. 80mA
Linearity± 1% F.S. or less
Hysteresis0.5% F.S. or less
Repeatability± 0.5% F.S. or less
Sensitivity0.2% F.S. or less
Temperature characteristics± 0.12% F.S./ ℃ or less
Output pressure display *Note 3Accuracy± 2% F.S. ± 1 digit or less
Minimum unitMpa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1, kPa: 1
Ambient and fluid temperature0 to 50℃ (No condensation)
Enclosureip65
Port size3/8 inch, 1/4 inch
WeightApprox. 350 g (without options)

*Note

  1. 2-wire type 4 to 20 mA DC is not available. Power supply voltage (DC 24V or DC 12~15V) is required.
  2. Select either analog output or switch output. Further, when switch output is selected, select either NPN output or PNP output. When measuring NITV analog output from 1 to 5 VDC, if the load impedance is less than 100 kΩ, the analog output monitor accuracy of within ±6% (full span) may not be available. The product with the accuracy of within ±6% is supplied upon your request. Output pressure remains unaffected.
  3. Adjustment of numerical values such as the zero/span adjustment or preset input type is set based on the minimum units for output pressure display (e.g. 10~5000 mbar). Note that the unit cannot be changed.
  4. Value for the state with no over current circuit included. If an allowance is provided for an over current circuit, the input impedance varies depending on the input current. This is 350Ω or less for an input current of 20mA DC.

Features

  1. Proportional pressure regulator adopts electrical proportional method to achieve stepless control of outlet pressure. It can realize remote control and program control.
  2. Compared with hydraulic proportional valves, proportional pressure regulators are small in size, light in weight, compact in structure, light in weight and low in cost.
  3. The control of proportional pressure regulator is continuous control, and its characteristic is that the output quantity changes with the change of input quantity (current value or voltage value), and there is a certain proportional relationship between the output and input.
  4. Proportional pressure regulator has many types, which can be used with various electrical equipment and computers to control various electro-hydraulic systems. High control precision, flexible installation and strong anti-pollution ability.

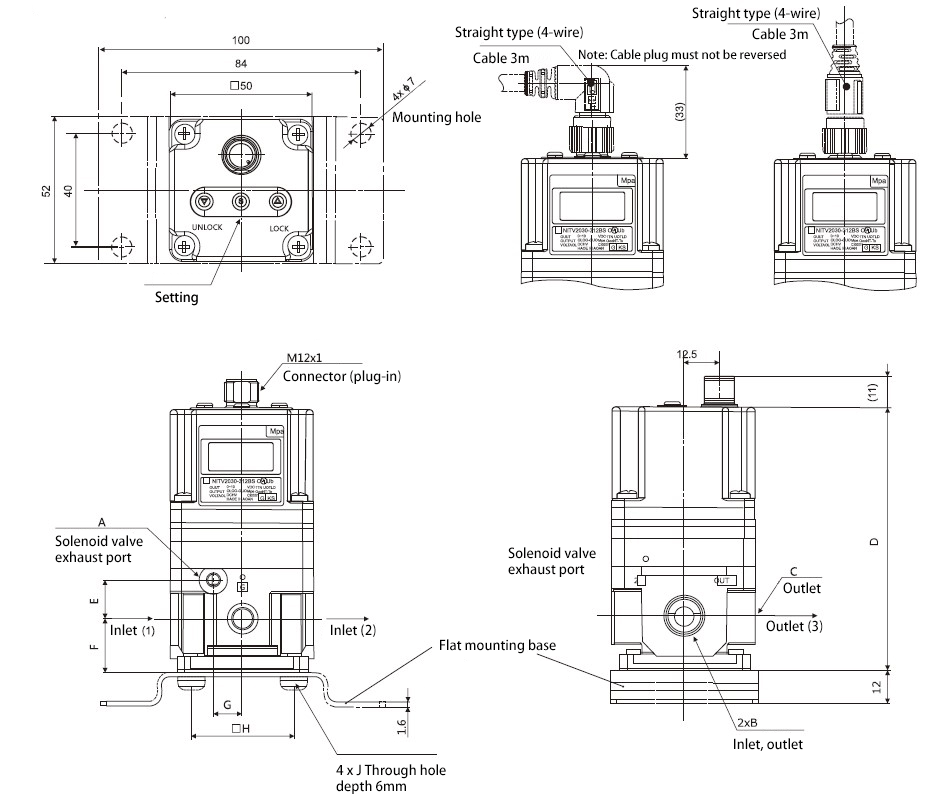

50~5000 mbar Proportional Pressure Regulator Dimensions (Unit: mm)

  • Proportional Pressure Regulator with Flat Bracket*

Dimensions of 50~5000 mbar 3/8 inch Proportional Pressure Regulator with flat bracket

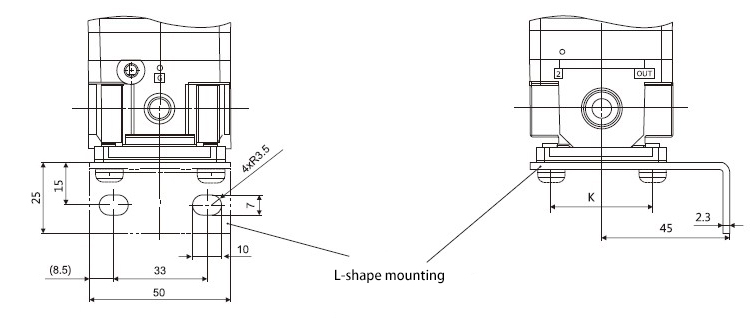

  • Proportional Pressure Regulator with L-Shape Bracket*

Dimensions of 50~5000 mbar 3/8 inch Proportional Pressure Regulator with L-shape bracket

*Note: The bracket is the option.

Tips: Proportional pressure regulator applications.

Proportional pressure regulator has various types and is suitable for various electrical and computer-controlled electro-hydraulic systems. Proportional pressure regulator has high control accuracy, flexible installation and use, strong anti-pollution ability, and increasingly widened application areas. During R&D and production of proportional pressure regulator, it fully takes into account the use characteristics of construction machinery, and has functions such as pilot control, load sensing and pressure compensation. The emergence of proportional pressure regulator is of great significance to the improvement of the overall technical level of mobile hydraulic machinery. Especially for electronic pilot operation, wireless remote control and wired remote control operation, etc., proportional pressure regulator shows its good application prospects.
