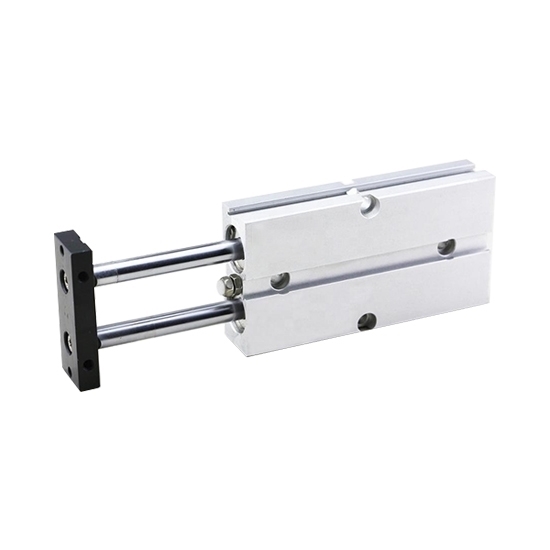

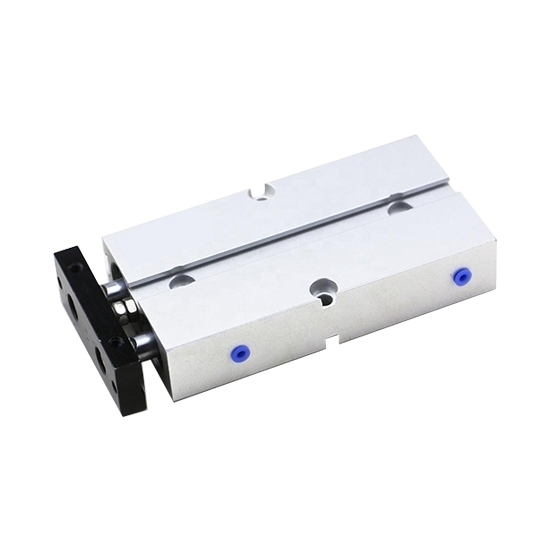

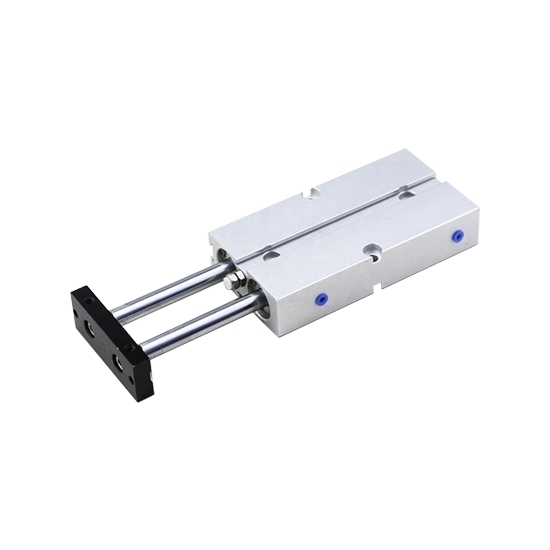

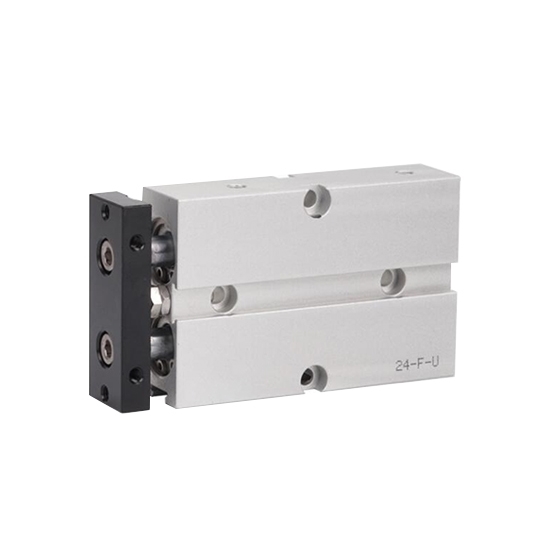

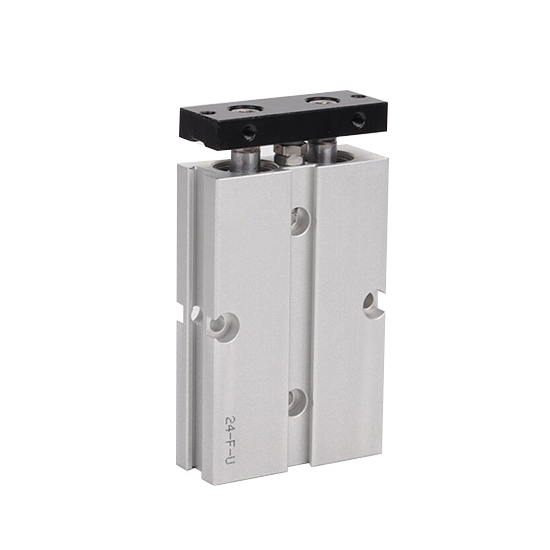

Double-acting dual rod cylinders with customized bore and stroke (max. stroke length up to 300mm) have good resistance to bending and twisting moments. Speed range is between 30 and 500mm/s. They are kindly designed with a bumper which can relieve the impact so as to minimize the potential damage caused by external force.

Product features:

1. There are magnetic switch slots around the cylinder body convenient to install inductive switches.
2. Embedded installation and fixation mode saves the installation space.
3. It has good resistance to bending and twisting moments, and it can withstand a certain level of side load.
4. Mounting holes on three sides facilitates multi-position mounting.
5. Bumper in front of the barrel can adjust the stroke of cylinder and relieve impact.
6. Standard configuration of this series has magnet and the type without magnet is not available.

 Specifications:

 Stroke:

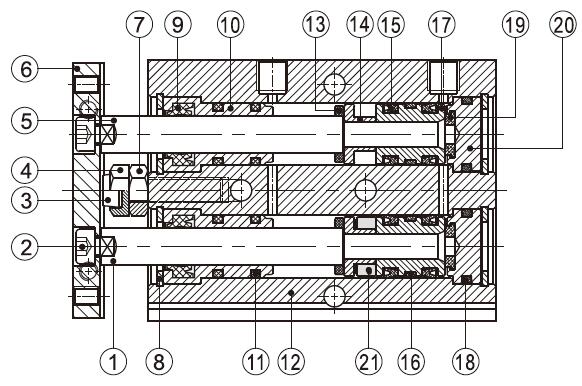

Inner structure and material of major parts:

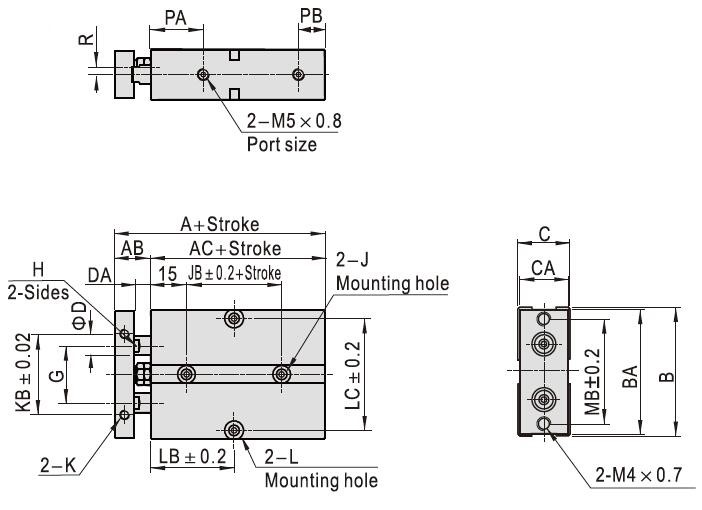

Dimensions (unit:mm):

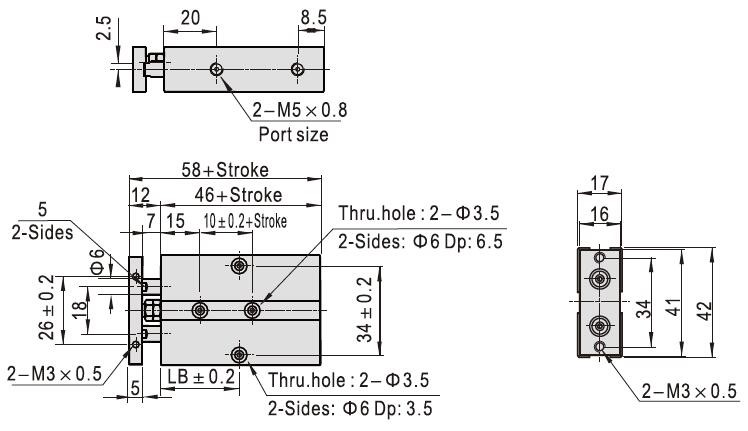

TN10

TN16~25

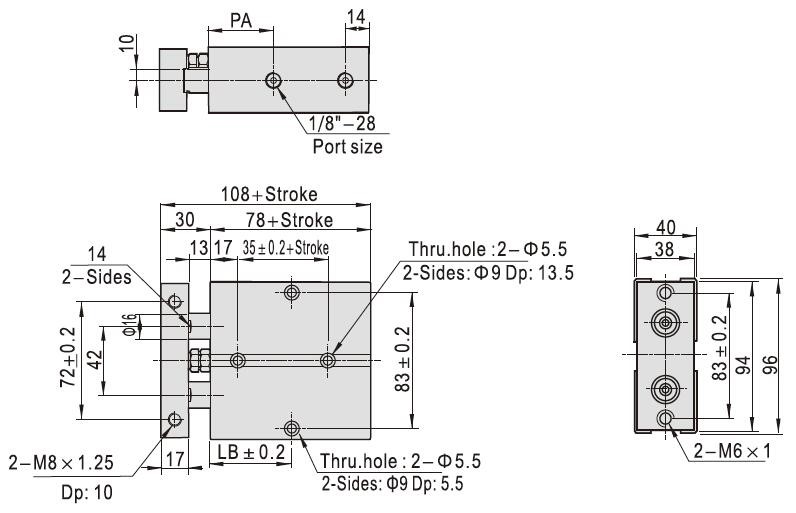

TN32

Note: As the precision of the manufacture and guide is high, please do not dismantle the fixed block or cylinder cover.

Likewise, the stroke length of dual rod cylinders are customizable with additional costs and the function of high temperature resistance is optional.

Tips: Brief introduction about dual rod cylinders

The double rod cylinder is a cylindrical metal machine part that drives the piston to reciprocate in the cylinder. Air in the engine cylinder converts thermal energy into mechanical energy through expansion, and the gas is compressed by the piston in the compressor cylinder to increase the pressure. The casing of turbines and rotary piston engines usually belongs to cylinder. Applications of air cylinders are commonly found in printing (used for tension control), semiconductors (such as welding machine and chip grinding), automation control, robots and many others. Double acting cylinders work by supplying air alternately from both ends of the piston, producing force in one or two directions.
