pneumatic cylinder for sales, stoke optional 50mm x 100mm, 63mm x 200mm or 100mm x 50mm, bore and stoke can be customized. Factory direct sales, air cylinder operational safety, speed control and fast respond.

Pnuematic Cylinder Specifications

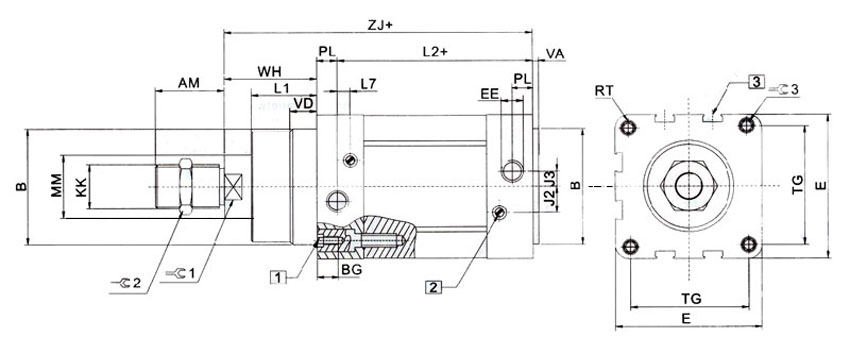

Air Cylinder Dimension (mm)

Note:
1. Hexagon nut with female thread for assembling.
2. Adjustable bolt of end cushion value.
3. Spread feeling machine slot, used for installing to near to spread a feeling machine.
4. + Express stroke added.

Tips: Advantages of DNC standard pneumatic cylinders

1. Standard pneumatic cylinders refer to cylinders whose functions and specifications are commonly used, whose structures are easy to manufacture, and whose manufacturers usually supply them to the market as general products. The common standard DNC series cylinder is the most widely used pneumatic actuator in pneumatic system, which is suitable for all walks of life, and the automatic drilling machine in the machinery manufacturing industry uses the DNC standard cylinder.
2. The DNC standard air cylinder can work normally in a non-oil-giving state, the action mode is the complex type, the piston type structure, the piston can be magnetic, also can not have the magnetism. The maximum use pressure force is 1.0MPa, the applicable temperature range is -20℃~80℃, the buffer mode is elastic buffer.
3. DNC Standard pneumatic cylinder standardization degree is very high, cylinder shape and installation connection size is in line with international standards and a number of national standards, different brands of cylinder interchange is more convenient. In terms of performance design, a range of functions can be extended through the replacement of related components, which is more convenient in practical applications.
