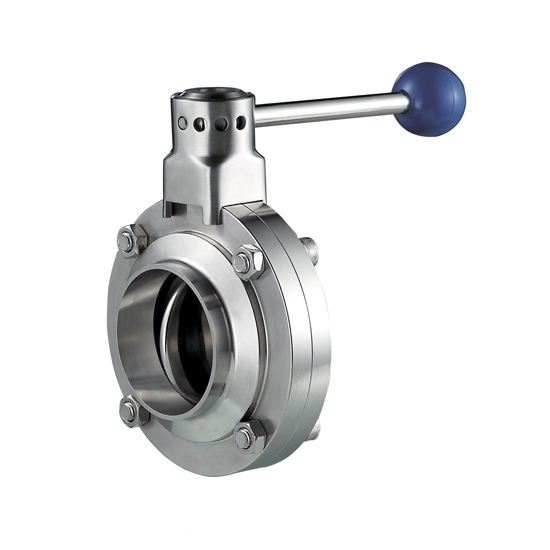

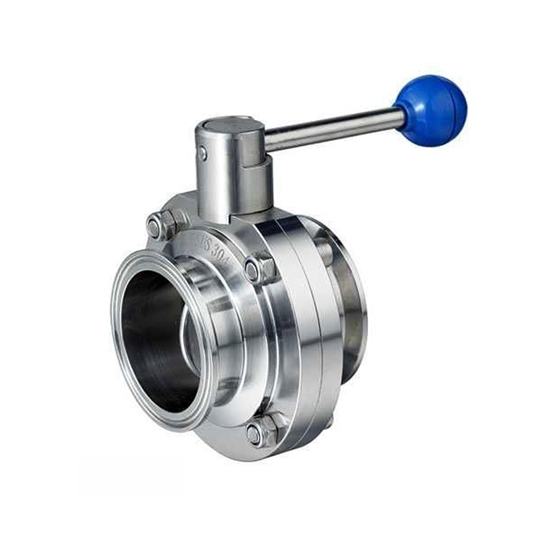

Model	CHN-BV-12I
Type	SS Sanitary Butterfly Valve
Size	1/2 inch
Connection Method (Optional)	Welded End/ Tri Clamp End
Drive Method	Manual
Body Material	304 Stainless steel (Default) /316 stainless steel
Washer and Gasket	EPDM comforms to PFA 177.2600
Handle	AISI 304/ PP
Surface Finishing	Ra≤0.8
Operating Torque	3Nm
Operating Temperature	-10℃~+120℃
Max. Pressure	1MPa
Min. Pressure	0.02MPa p.abs
Nominal Pressure	5MPa
Weight	1.5 kg
Certificate	PED97-23EC, FDA.177.2600

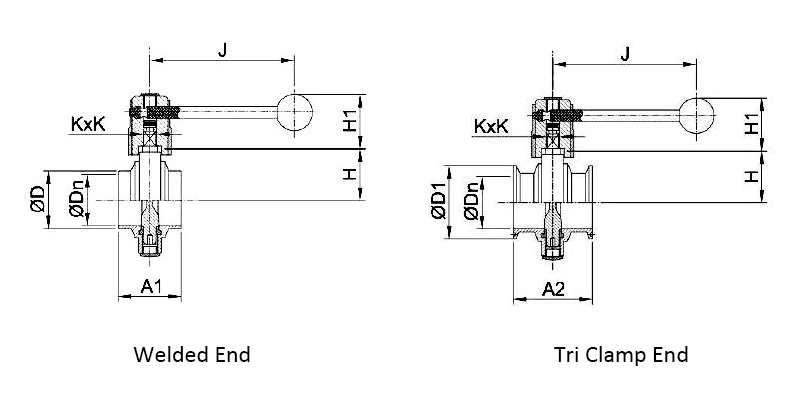

Size	Dn	D	D1	J	H	H1	A1	A2
1/2 inch	9.7	12.7	25.4	126	40	43.5	50	66
