Cheap price 5kw permanent magnet generator rated speed of 300rpm, 120V/220V/380V rated voltage, small size, high power and high efficiency.

Note: Special rated voltage and speed can be customized, please contact us.

Specification:

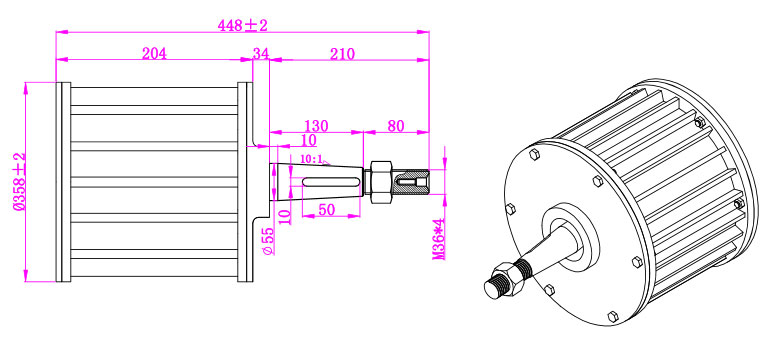

5kW Alternator Dimension: (unit: mm)

Features

• Gearless, direct drive, low RPM permanent magnet generator.
• Low start up speed due to low cogging and resistive torque design.
• High standard, quality components for use in harsh and extreme environments for wind turbines.
• High efficiency and Low mechanical resistance energy loss.
• Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
• High strength from the specially desy selecign structure and fully heat treatment aluminium.
• Generator is designed using speciallted material and treated to resist corrosion and oxidation.
• Designed for reliable and long operational lifetime under long-term full output.

Tips: What does the permanent magnet in the generator mean?

Permanent magnets generally use permanent magnet materials as the magnetic poles of the motor. The so-called permanent magnets refer to substances like magnets that do not require an applied current to present a magnetic field. This is the magnetic pole that needs to be excited, that is, there is a magnetic field when there is an applied current. Kind is not a permanent magnet. The main function is to generate a magnetic field, which causes the winding to cut the magnetic induction line generated by the winding to generate electricity or vice versa. The motors that use the permanent magnets synchronously are synchronous motors.
