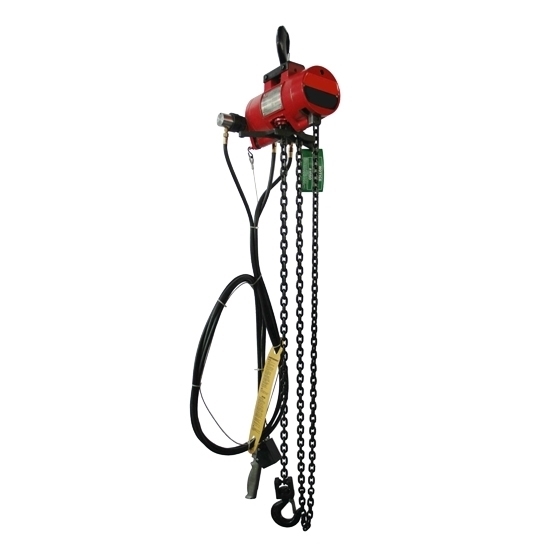

Air Chain Hoist	Model	CHN-29HX85
	Capacity	500 lb. (0.25 ton)
	Lift	10 ft.
	Lift Speed	0 to 65 fpm
	Min Between Hooks	15 1/4 in.
	Reeving	1
	Housing L	12 1/8 in.
	Housing W	10 3/16 in.
	Chain Length	11' - 5", 22' - 7"
	Air Pressure Recommended	90 psi
	Air Consumption	48 SCFM at 90 psi
	Suspension	Hook
	Control	Pendant Throttle
	Air Inlet Size	3/8 NPTF
	Air Supply Hose	1/2 I.D. min.
	Air Exhaust	1/2 NPTF
	Net Weight (Basic Hoist)	46 lbs (21 kg)

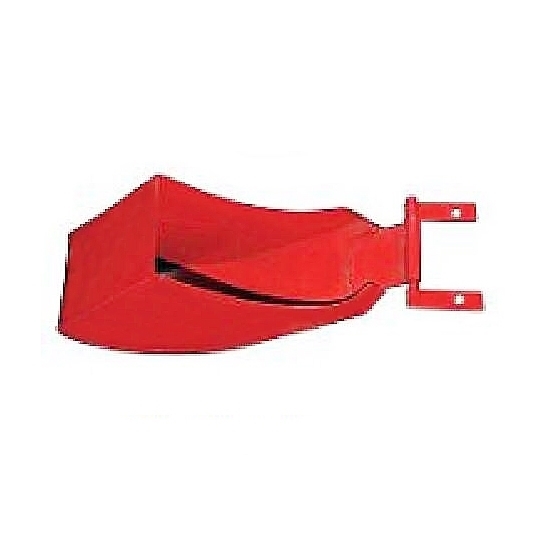

Metal Chain Container	Model	CHN-29HX91
	Chain Lift	Single 20 ft.
	Weight	4.5 in.
	Hight	12 in.
