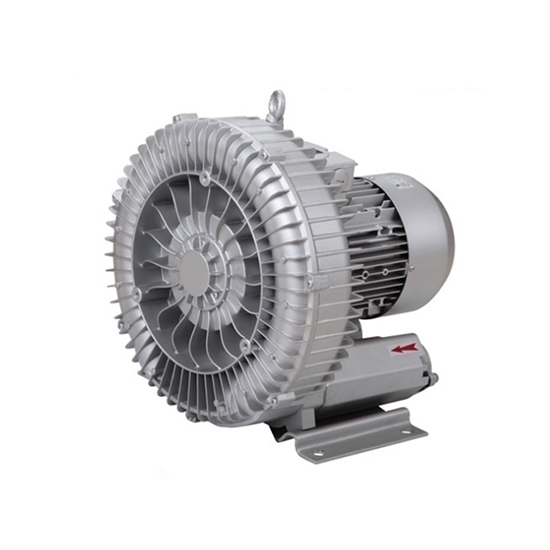

1 Phase 1 hp (750W) Regenerative Blower, 220V, 85 cfm

220V one-phase high pressure vortex blower for sale is designed with the air flow capacity of 85 cfm. 0.75 kW large output power but 63 db (a) low noise.

Specification

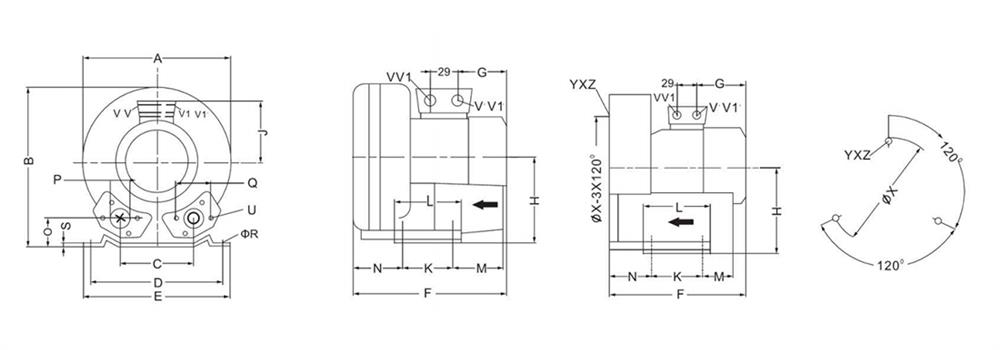

Dimention (Unit: mm)

Tips: Using tips of high pressure regenerative blower

After purchasing the high pressure regenerative blower from ATO, two aspects of protection are needed: Pressure and dust.
In terms of pressure protection, high pressure regenerative blowers often use pressure relief valves. It is an unloading valve. When the working pressure of the high pressure regenerative blower exceeds the pressure set by the pressure relief valve, the pressure relief valve will automatically open to release the excess pressure, thereby protecting the high pressure regenerative blower.
In dust protection, spiral air pumps often use filters. Different use sites often use filter elements with different filtration accuracy, and different filter elements have different maintenance methods and service life. Please inquire clearly when purchasing.
In some special occasions, special protection is also required: For example, when using a high pressure regenerative blower in a sealed environment, pay attention to ventilation and heat dissipation. When the intake air temperature is relatively high, pay more attention to ventilation and heat dissipation, or choose a high pressure blower that allows a higher intake air temperature.
