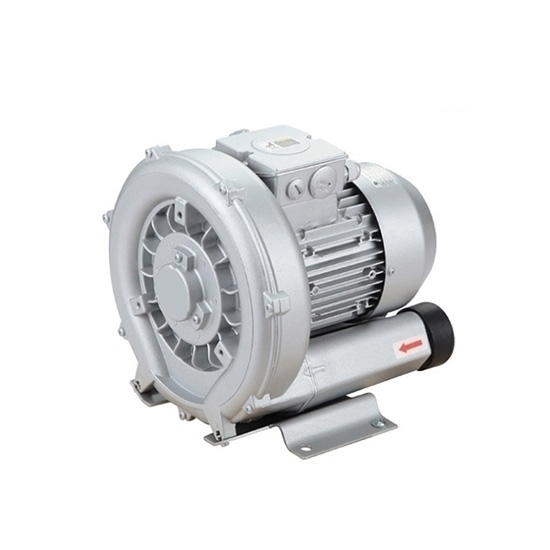

1/ 2 hp high pressure regenerative blower has a performance up to 20% higher than that of the same power, because the impeller has been accurately calculated and demonstrated.

Specification

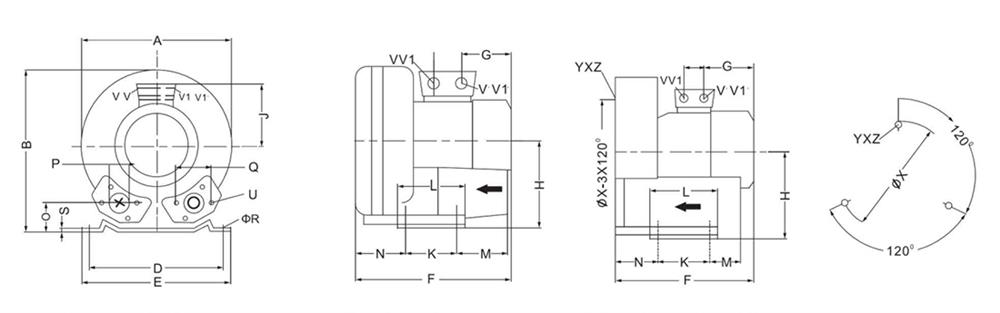

Dimention (Unit: mm)

Tips: How to buy a right high pressure regenerative blower from ATO?

With the progress and development of the times, the high pressure regenerative blower has become an important production machine. It is widely used in industry and agriculture, covering infrastructure, environmental protection industry, electroplating industry, aquaculture industry, and industrial dust collection. But how can we buy high-quality regenerative air blower among so many vortex blower brands? The following is the method summarized by ATO.

First of all, we need to know the principle of the high pressure regenerative blower: When the impeller rotates, due to the action of the separation force, the wind vane causes the gas to move forward and outward, thus forming a series of spiral motions. The air between the blades of the impeller accelerates in a spiral shape and sucks the gas outside the pump body (inhaled by the suction port) into the side groove. When it enters the side channel, the gas is compressed, and then returns to between the blades of the impeller to accelerate again. As air passes through the impeller and side grooves along a spiral track, each impeller blade increases the degree of compression and acceleration. As the rotation progresses, the kinetic energy of the gas increases, so that the pressure of the gas passing along the side channel further increases. When the air reaches the connection point between the side groove and the discharge flange, the gas is forced out of the blade and passes through the outlet to muffle the sound.

Because the high pressure blower is widely used, its selection is also relatively complicated. Generally speaking, it needs to be carried out in the following two steps:

1. It is necessary to determine what function of the high pressure blower is used on site, whether it is used for suction or blowing. Find the pressure-flow curve corresponding to the high pressure air blower. If you read the wrong curve, the selected regenerative blower cannot be used. And we can provide you with a pressure-flow graph when you what to buy a cheap price regenerative blower from ATO.
2. According to the calculated pressure and flow, find the working curve above the working point corresponding to both pressure and flow on the graph, and then select the high pressure blower model according to the working curve.
