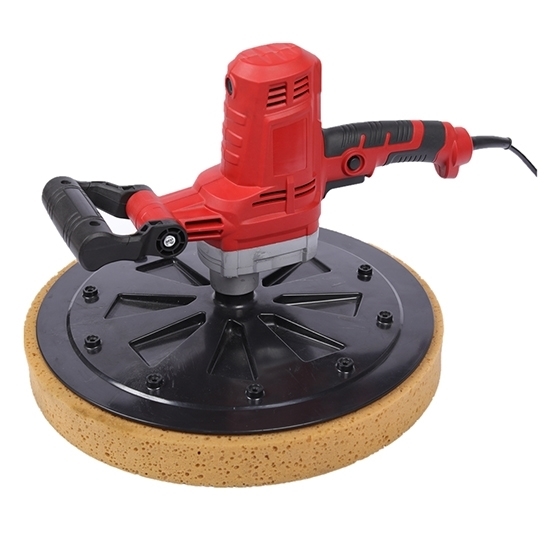

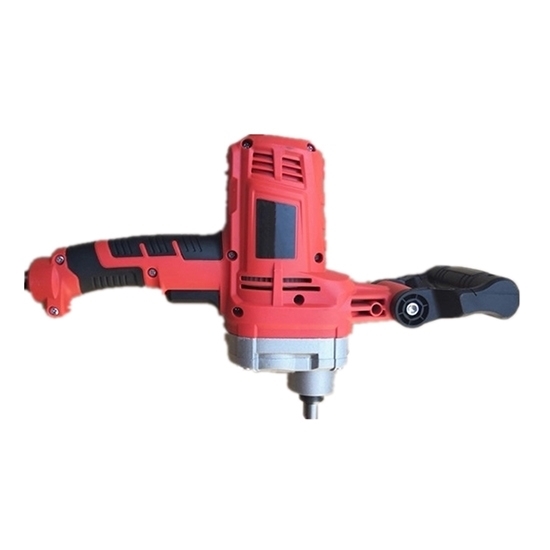

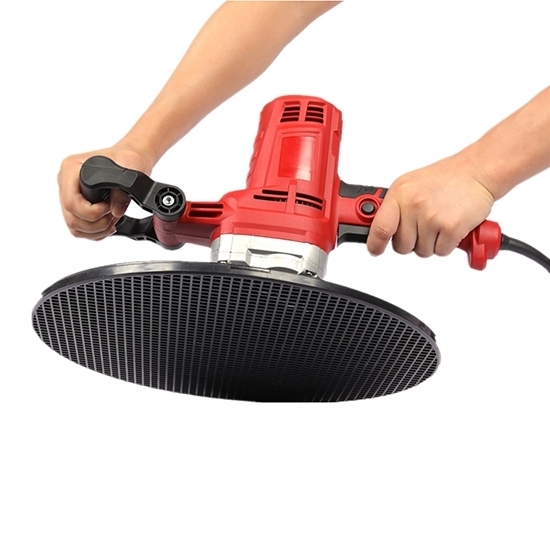

Wet/Drywall/Floor Sander is a utility model, has the advantages of series excitation motor drive, lightweight, large power, high efficiency, convenient operation, safety, etc. The utility model is suitable for wet and dry sanding on concrete surface of the building walls, ceilings, floor, surface of the sand and stone walls, and surface of the paint and cement, etc.

Specification

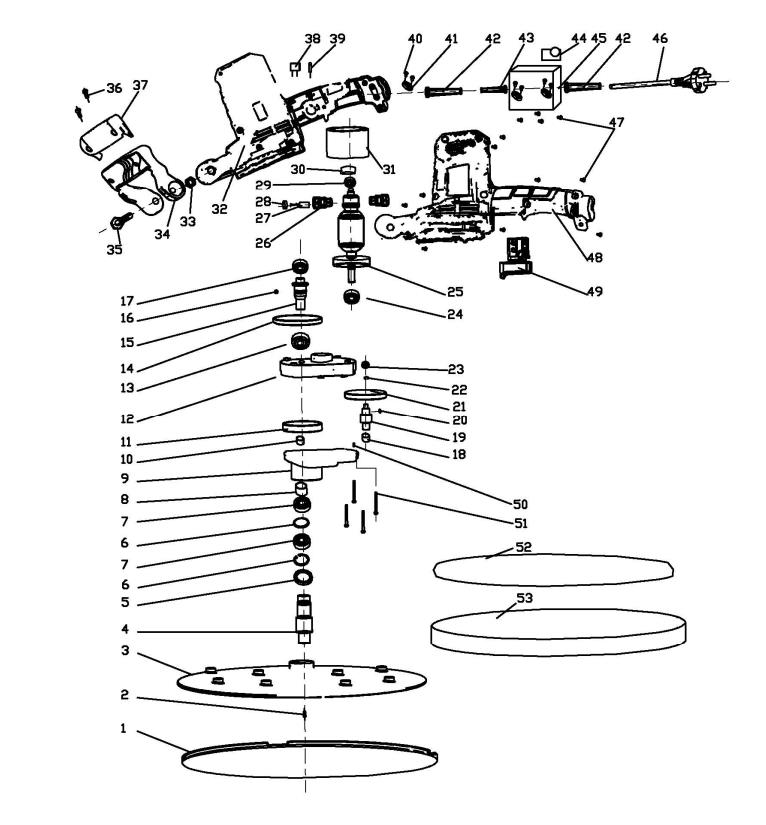

Wet/Drywall/Floor Sander Part Exploded View

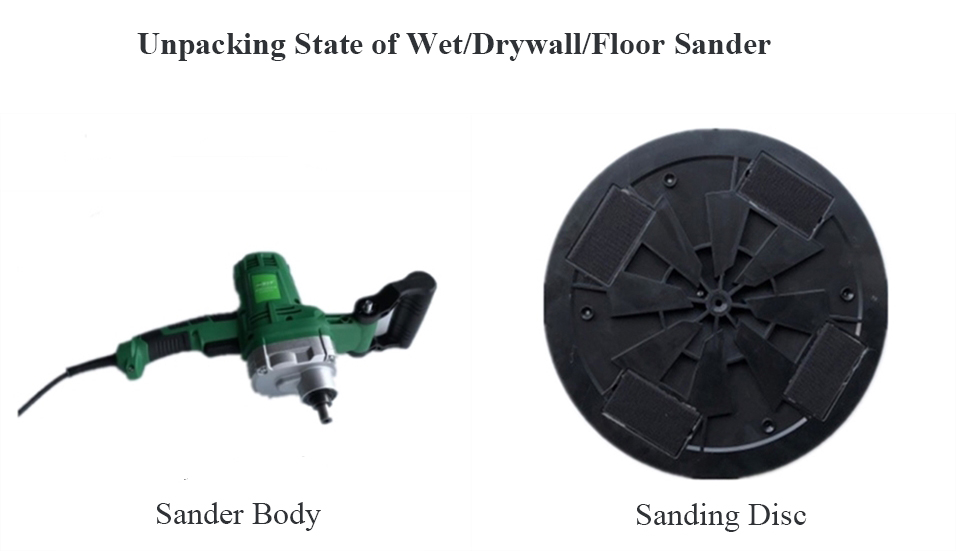

Wet/Drywall/Floor Sander Installation

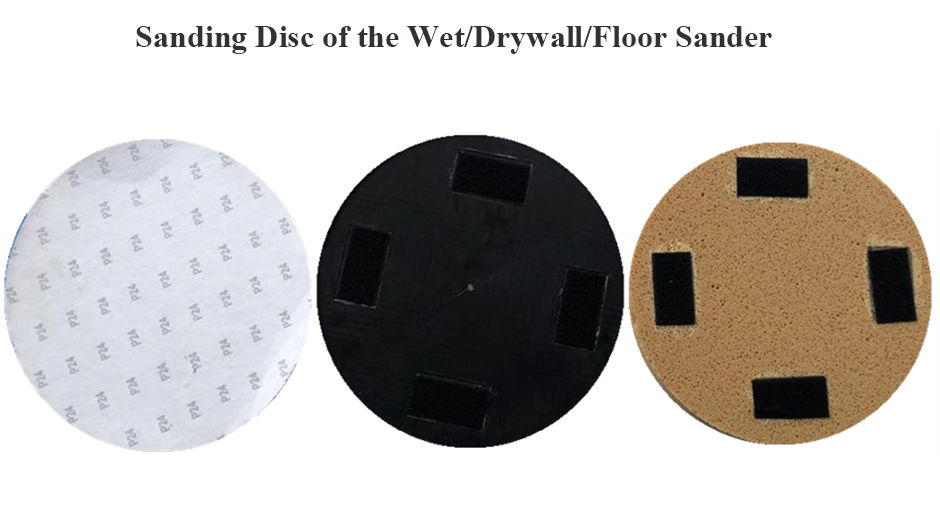

On the sander, sponge disc pad, plastic sanding disc and plastic disc sticking plate are bonded together by a magic paste. Sander installation can reference the following steps.

1. Install plastic adhesive tray. Place plastic adhesive disc on the output shaft, and then use a head bolt fix it.
2. Install the plastic sanding disc. Glue the plastic polishing plate to the plastic adhesive plate.
3. Install the sponge sanding disc pad. Attach the sponge pad to the plastic plate.

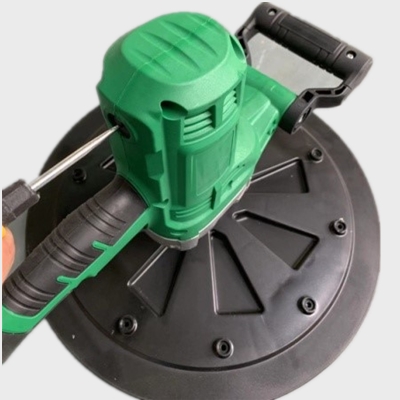

Wet/Drywall/Floor Sander Brush Replacement

There is a pair of auxiliary brushes in the random accessories. When the brush is worn to limit, it is needs to replace brush for the sander. Use the a screwdriver to reverse the brush cover counterclockwise, remove the original brush, fit the new brush into the brush holder and screw the cover.

Wet/Drywall/Floor Sander Maintenance

• Keep the sander clean, clean up the sundries and dust.
• Often add grease (deceleration box) to keep the sander running flexible.
• Check the power cord, plug, switch and so on to keep the sander in good condition.

Tips: 3 common troubleshooting for wet/drywall/floor sander.

1. The motor is hot during the sander operation
   The older the sander, the higher the heat will be. If you don't deal with this problem, the fever will get worse. If there is a noticeable oily smell when using the sander, the heavier lubricating solids in the grease in the gearbox have been broken down. At this point, open the sander gearbox, clean up all old grease and replace it with bearing grease. Apply grease to the gear teeth and fill all backlash. Be careful not to leave too much grease in it. A gearbox with new grease allows the sander to work for a long time.
2. Sander brush is worn serious
   If the sander switch is on but machine is not responding, it is most likely due to severe brush wear. As a power tool that operates for a long time under high load, brush wear of a sander is a very common phenomenon. Brushes will not all wear out in one use. Slow start-up may occur when you start using a sander. Many users will solve this problem by shaking or tapping the sander. In fact, it will only make the sander damage more serious. When brushes are completely worn, the sander will not start. At this point, the sander brush should be replaced to ensure its normal operation.
3. Sander uneven sanding
   Although the sander only sands a relatively small amount of material at a time during work, it is still easy to uneven surface sanding. When using a sander, always keep the sanding disc flat, sand on overlapping path and follow the material texture. In addition, it is necessary to ensure that the work is done by the weight of the sander itself, not by the pressure applied by the user himself. If the sander is hard pressed against the material surface, it will reduce the speed of sanding disc, resulting in a decrease in the working efficiency of the sander. To ensure a uniform sanding effect, can use a pencil to draw a curve on the material surface to be sanded and sand the mark at a uniform speed.
