Home > Tools > Pipettes

Send Inquiry

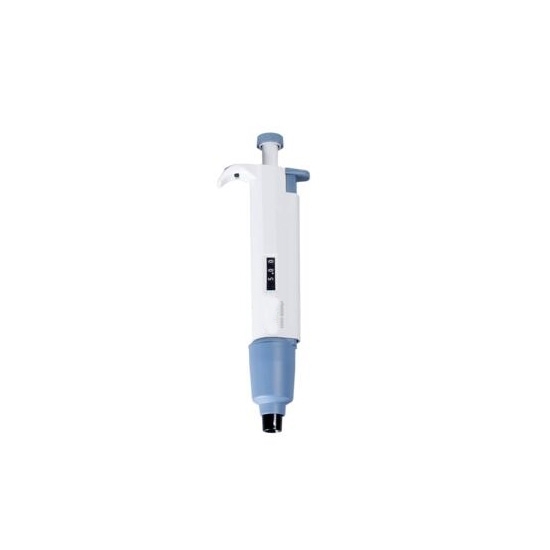

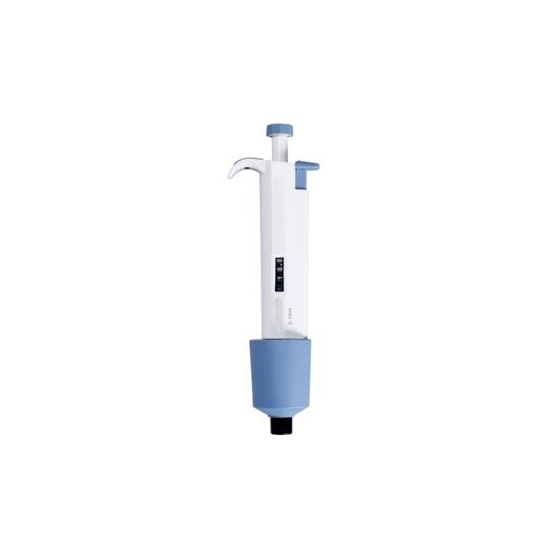

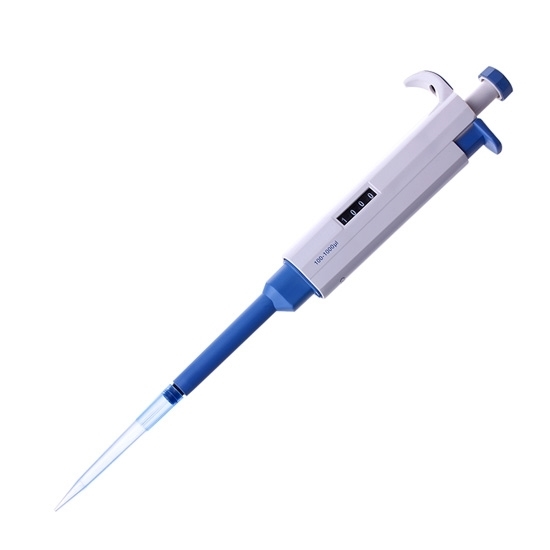

Single Channel Micropipette 0.1-2.5µl/0.5-10µl/5-50µl/20-200µl/100-1000µl

$71.42

Variable volume micropipette, single channel, has optional volume range of 0.1-2.5µL, 0.5-10µL, 5-50µL, 20-200

SKU: CHN-PIPET-M1000

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Features

Single channel micropipettes is available in various volumes 0.1μL - 10mL with tip ejector

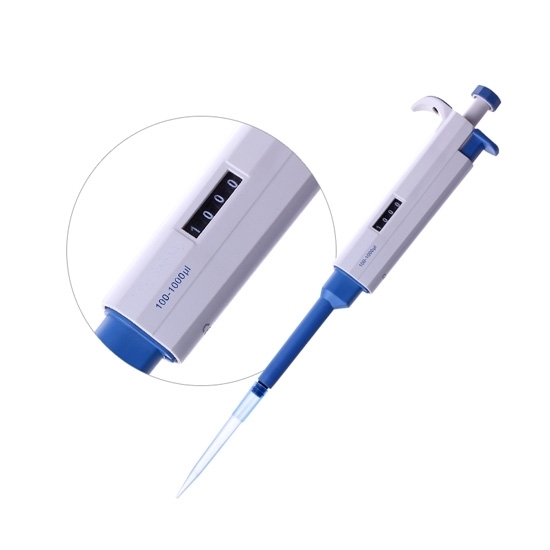

3-digit volume display for clear reading and easy volume setting
Mechanical pipettes with ergonomic handle design, providing user light, easy and smooth operation
The lower section can be autoclaved at 121℃
CE certification

Specification

Model	Volume Range	Testing Volume	Accuracy	Repeatability	Increment	Tips Volume
CHN-M2.5	0.1-2.5μL	2.5μL	±2.50%	±2.00%	0.05μL	10μL
		1.25μL	±3.00%	±3.00%
		0.25μL	±2.00%	±6.00%
CHN-M10	0.5-10μL	10μL	±1.00%	±0.80%	0.1μL	10μL
		5μL	±1.50%	±1.50%
		1μL	±2.50%	±1.50%
CHN-M20	2-20μL	20μL	±0.90%	±0.40%	0.5μL	200μL
		10μL	±1.20%	±1.00%
		2μL	±3.00%	±2.00%
CHN-M50	5-50μL	50μL	±0.60%	±0.30%	0.5μL	200μL
		25μL	±0.90%	±0.60%
		5μL	±2.00%	±2.00%
CHN-M100	10-100μL	100μL	±0.80%	±0.15%	1μL	200μL
		50μL	±1.00%	±0.40%
		10μL	±3.00%	±1.50%
CHN-M200	20-200μL	200μL	±0.60%	±0.15%	1μL	200μL
		100μL	±0.80%	±0.30%
		20μL	±3.00%	±1.00%
CHN-M1000	100-1000μL	1000μL	±0.60%	±0.20%	5μL	1000μL
		500μL	±0.70%	±0.25%
		100μL	±1.50%	±0.70%
CHN-M5000	1000-5000μL	5000μL	±0.50%	±0.15%	50μL	5000μL
		2500μL	±0.60%	±0.30%
		1000μL	±0.70%	±0.30%
CHN-M10000	2-10mL	10mL	±0.60%	±0.20%	0.1mL	10ml
		5mL	±1.20%	±0.30%
		2mL	±3.00%	±0.60%

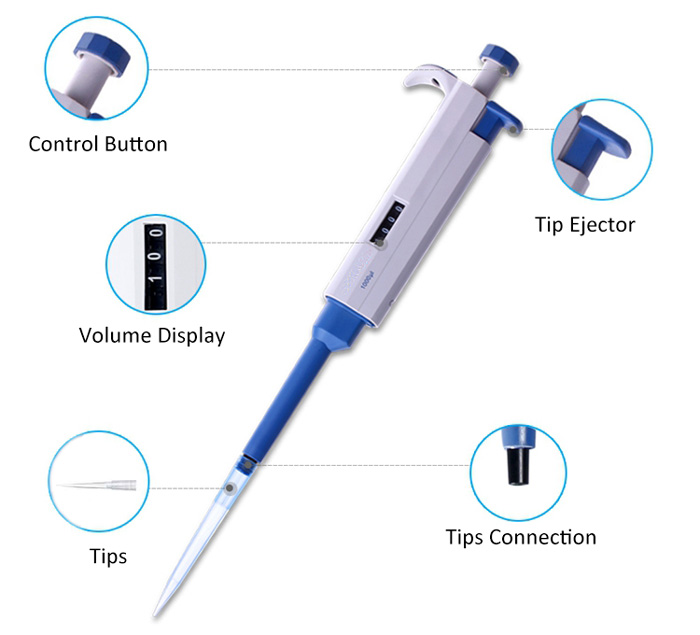

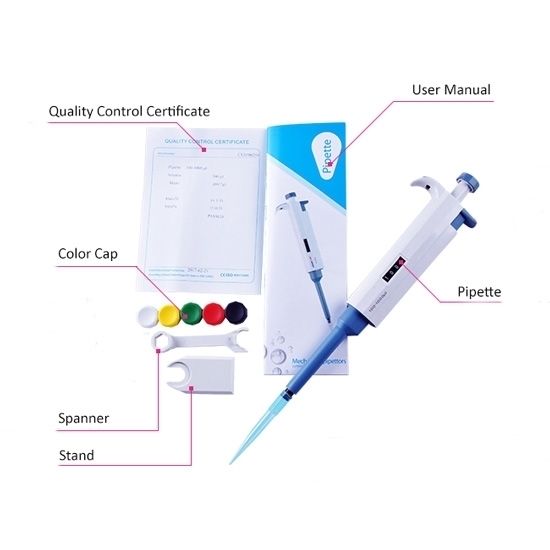

Micro Pipette Details

Tips: Micropipette Standard Operation Procedure

1. Selection of micropipette: Select the corresponding micropipette according to your needs. Usually, it is recommended that the pipetting volume be within the range of 35% -100% of the tip. Such selection has fewer requirements on the operator's operating skills, and meanwhile ensures the accuracy and precision of pipetting.

2. Range adjustment: Follow the principle of large to small. When adjusting from a large range to a small range, quickly adjust the required range with the adjustment button. When the value is close to the ideal value, put the micropipette horizontally and turn it to a preset value. When adjusting from a small range to a large range, it should be noted that the rotation exceeds the predetermined value, and then returns to the predetermined value.

3. Install the tip: Use the rotary installation method to insert the micropipette tip cone vertically into the tip, press it gently, and rotate it 180 ° counterclockwise to install it. Do not use too much force.

4. Pre-washing the tip: First suck the sample, then drain it back to the sample container, and repeat it for 4-6 times.

5. Aspirate: Empty the tip before washing. Press the micropipette to the first stop point, and slowly release it when aspirating. Do not use excessive force. Stay against the wall for 1 to 2 seconds.

6. Dispensing: When dispensing, the tip should be close to the inner wall of the container and tilted 10°～ 40°. Place it at the bottom of the container as much as possible. Press the dispensing button to the first stop point, pause for 1 second, and wait for the rest liquid accumulation. Then, press it to the second stopping point to squeeze out the remaining liquid.

7. Remove the tip: Withdraw the tip with the tip ejector of the micropipette and place it in the container containing the disinfectant solution.

8. Rotate the micropipette to the maximum range.

9. Hook the micropipette on the pipette rack.
